HNP120M-480

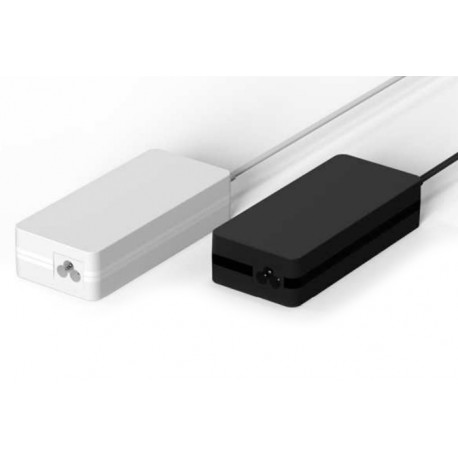

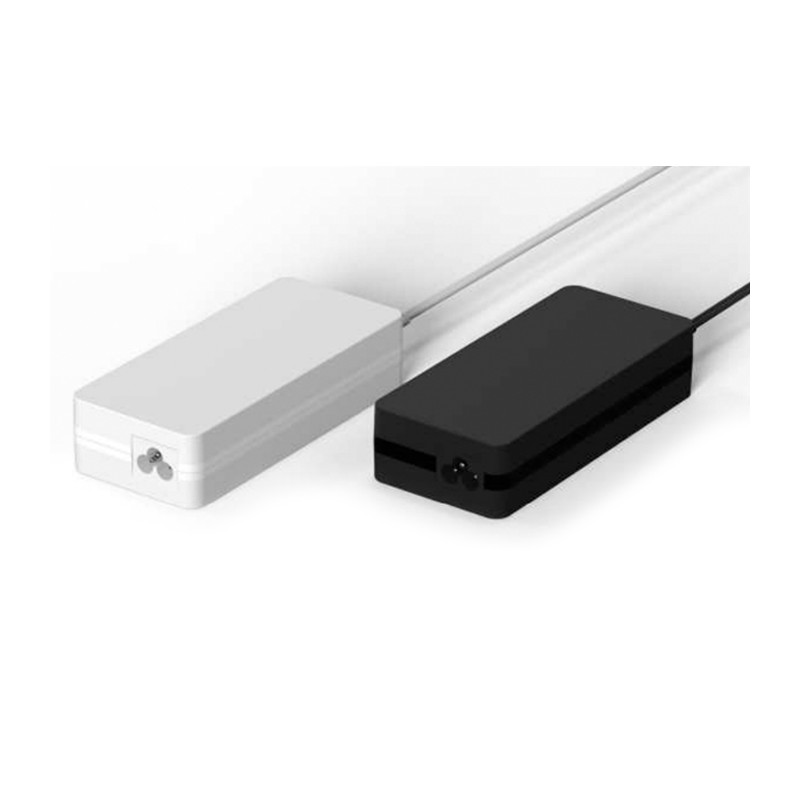

HN-Power external power supply series HNP120M

Desktop switching power supplies in a spil-proof case with 120W, energy efficiency Level VI, a universal input and protection class I. These devices are suitable for indoor applications and are protected against overload, overvoltage as well as short circuit. They have a low no-load power and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this HN-Power series: HNP120M-120, HNP120M-240 and HNP120M-480.

  • single output
  • output: 96 to 129,6W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 100A
  • input current: 2A
  • leakage current: 2,5mA
  • withstand voltage: 4000V AC
  • input plug: IEC-320 C6
  • cable length: 150cm
  • operating temperature: -10 to +40°C
  • dimensions: 108x48x32mm
  • weight: 240g
HNP120M-480, HN-Power external switching power supplies, 120W, energy efficiency Level VI, HNP120M series

HNP120M-480

242402 HNP120M-480 HNP120M-480 HN-Power external power supply series HNP120M. Desktop switching power supplies in a spil-proof case with 120W, energy efficiency Level VI, a universal input and protection class I. These devices are suitable for indoor applications and are protected against overload, overvoltage as well as short circuit. They have a low no-load power and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this HN-Power series: HNP120M-120, HNP120M-240 and HNP120M-480. single output output: 96 to 129,6W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 100A input current: 2A leakage current: 2,5mA withstand voltage: 4000V AC input plug: IEC-320 C6 cable length: 150cm operating temperature: -10 to +40°C dimensions: 108x48x32mm weight: 240g

Specifications

manufacturer
Manufacturer's name HNP120M-480
Output voltage [V] 48
Efficiency [%] 89,64
Output current [A] 2,7
Output power [W] 129,6
Ripple [mVp-p] 200
Data Sheet

Unit price

39,39 €

Stock: 10
Further delivery:
CW 15/2025
