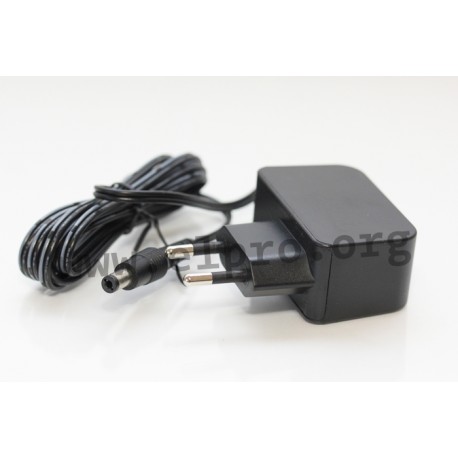

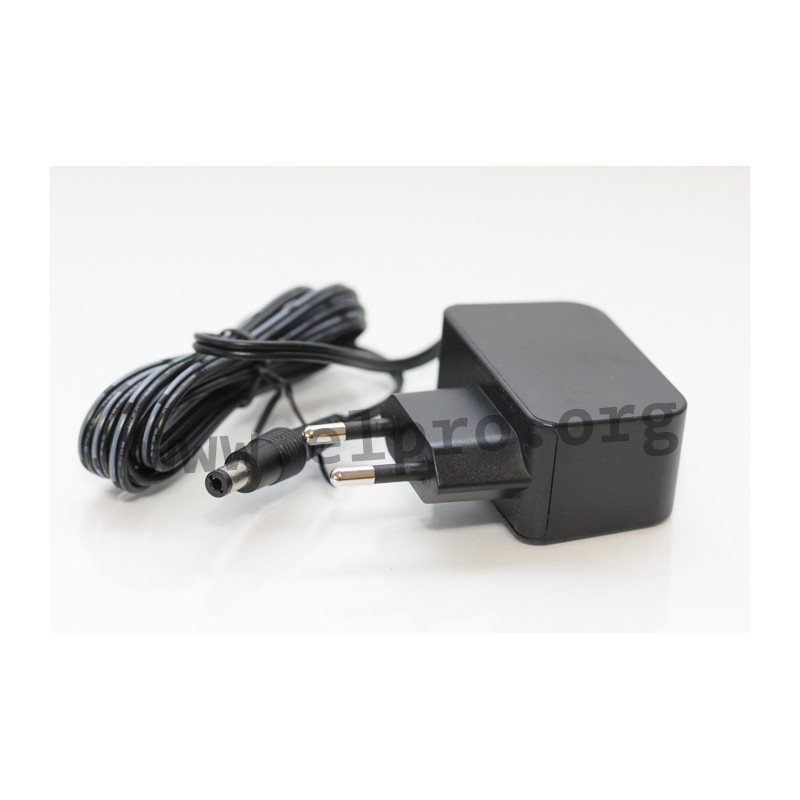

HNP12-120-L6

HN-Power plug-in power supply series HNP12-L6

Plug-in switching power supplies with 12W, a europlug, a universal input, insulation class II, a low no-load power and energy efficiency Level VI. These devices are protected against overload as well as short circuit and comply with EN62368-1, EN55035, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this HN-Power series: HNP12-050-L6, HNP12-090-L6, HNP12-120-L6 and HNP12-240-L6.

  • single output
  • output: 12W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 30A
  • cable length: 1,5m
  • output plug: 2,1x5,5mm
  • operating temperature: -10 to +40°C
  • weight: 90g
HNP12-120-L6

HNP12-120-L6

107116 HNP12-120-L6 HNP12-120L6 HNP12-120L6 HN-Power plug-in power supply series HNP12-L6. Plug-in switching power supplies with 12W, a europlug, a universal input, insulation class II, a low no-load power and energy efficiency Level VI. These devices are protected against overload as well as short circuit and comply with EN62368-1, EN55035, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this HN-Power series: HNP12-050-L6, HNP12-090-L6, HNP12-120-L6 and HNP12-240-L6. single output output: 12W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 30A cable length: 1,5m output plug: 2,1x5,5mm operating temperature: -10 to +40°C weight: 90g

Specifications

manufacturer
Manufacturer's name HNP12-120L6
Output voltage [V] 12
Efficiency [%] DOE VI
Output current range [A] 0...1
Output power [W] 12
Ripple [mVp-p] 100
Data Sheet

Unit price

6,59 €

Stock: 5550
Next incoming goods:
CW 51/2024
2500 units

Further delivery:
CW 15/2025
