HNP06-050-L6

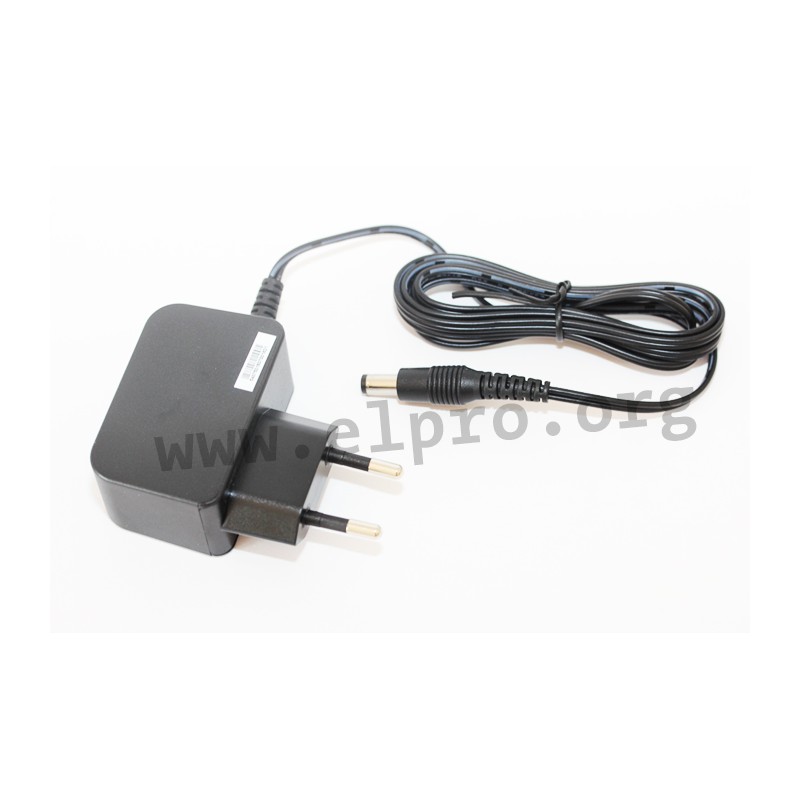

HN-Power plug-in power supply series HNP06-L6

Plug-in switching power supplies with 7,5W, a europlug, insulation class II, a universal input, energy efficiency Level VI and a low no-load power. These devices are protected against overload as well as short circuit and comply with EN62368-1, EN55032, EN55035, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this HN-Power series: HNP06-050-L6, HNP06-090-L6 and HNP06-120-L6.

  • single output
  • output: 7,5W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 30A
  • cable length: 1,5m
  • output plug: 2,1x5,5mm
  • operating temperature: -10 to +40°C
  • weight: 70g

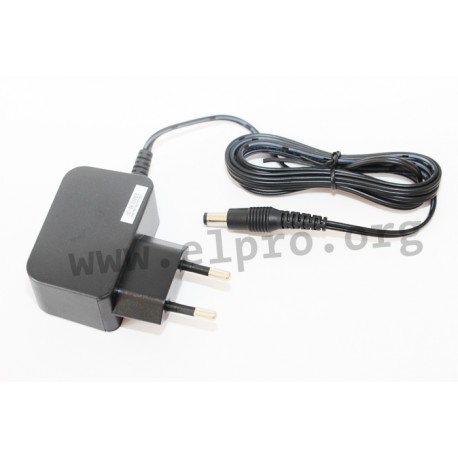

Series HNP06-_-L6 by HN-Power

HNP06-050-L6

107111 HNP06-050-L6 HNP06-050L6 HNP06-050L6 HN-Power plug-in power supply series HNP06-L6. Plug-in switching power supplies with 7,5W, a europlug, insulation class II, a universal input, energy efficiency Level VI and a low no-load power. These devices are protected against overload as well as short circuit and comply with EN62368-1, EN55032, EN55035, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this HN-Power series: HNP06-050-L6, HNP06-090-L6 and HNP06-120-L6. single output output: 7,5W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 30A cable length: 1,5m output plug: 2,1x5,5mm operating temperature: -10 to +40°C weight: 70g

Specifications

manufacturer
Manufacturer's name HNP06-050L6
Output voltage [V] 5
Efficiency [%] DOE VI
Output current [A] 0...1,5
Output power [W] 7,5
Ripple [mVp-p] 100
Data Sheet

Unit price

5,79 €

Stock: 411
Further delivery:
CW 15/2025
