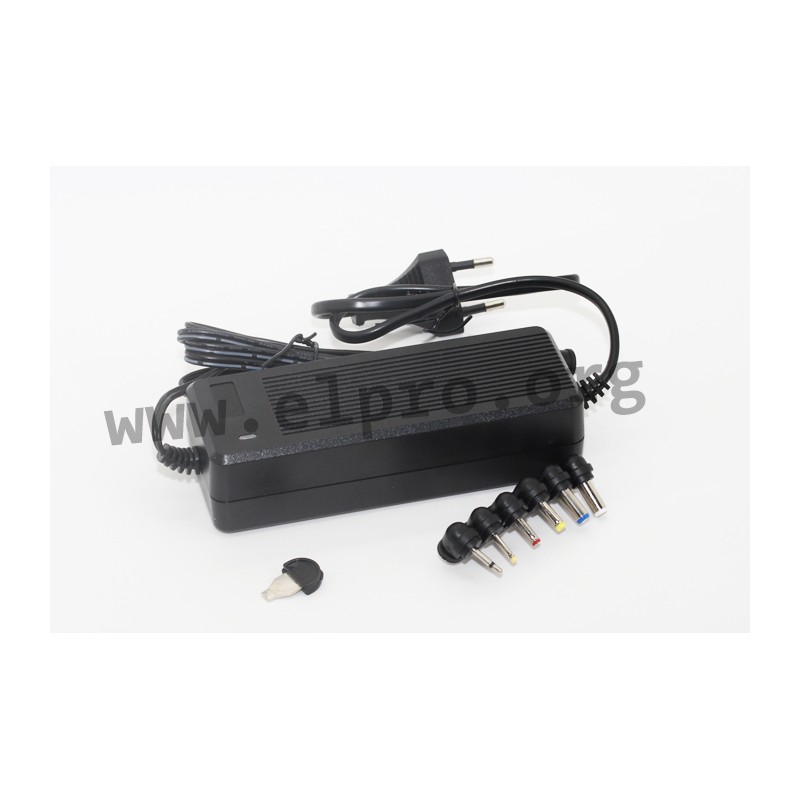

HNP36-UNIL6

HN-Power desktop power supply series HNP-UNIL6

Desktop switching power supplies with 36 resp. 60W, a universal input, protection class II, energy efficiency Level VI (EU 2019/1782) and a selectable output voltage. These devices have six interchangeable DC output plugs and are protected against overload, overvoltage as well as short circuit. They are suitable for indoor applications and comply with EN62368-1 as well as EN55032. We offer the types HNP36-UNIL6 and HNP60-UNIL6 of this HN-Power series.

  • single output
  • output: 36 to 60W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 40A
  • input current HNP36_: 1A
  • input current HNP60_: 1,5A
  • leakage current: 0,25mA
  • withstand voltage: 3000V AC
  • cable length (input): 50cm
  • cable length (output): 100cm
  • operating temperature: 0 to +40°C
  • dimensions HNP36_: 112x52x33,5mm
  • dimensions HNP60_: 138x52x33,5mm
  • weight HNP36_: 220g
  • weight HNP60_: 305g

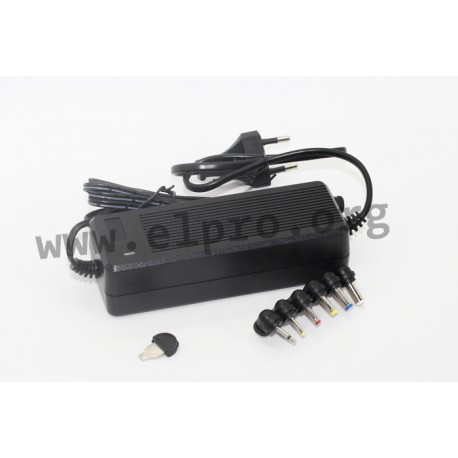

HNP36-UNIL6, HN-Power desktop switching power supplies, 36 to 60W, HNP-UNIL6 series

HNP36-UNIL6

236108 HNP36-UNIL6 HNP36-UNIL6 HN-Power desktop power supply series HNP-UNIL6. Desktop switching power supplies with 36 resp. 60W, a universal input, protection class II, energy efficiency Level VI (EU 2019/1782) and a selectable output voltage. These devices have six interchangeable DC output plugs and are protected against overload, overvoltage as well as short circuit. They are suitable for indoor applications and comply with EN62368-1 as well as EN55032. We offer the types HNP36-UNIL6 and HNP60-UNIL6 of this HN-Power series. single output output: 36 to 60W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 40A input current HNP36_: 1A input current HNP60_: 1,5A leakage current: 0,25mA withstand voltage: 3000V AC cable length (input): 50cm cable length (output): 100cm operating temperature: 0 to +40°C dimensions HNP36_: 112x52x33,5mm dimensions HNP60_: 138x52x33,5mm weight HNP36_: 220g weight HNP60_: 305g

Specifications

manufacturer
Manufacturer's name HNP36-UNIL6
Output voltage [V] 5/6/7,5/9/12...
Efficiency [%] 91,8
Output current [A] 3
Output power [W] 36
Ripple [mVp-p] 200
Data Sheet

Unit price

18,49 €

Stock: 109
Further delivery:
CW 15/2025
