HNP06-UNIL6

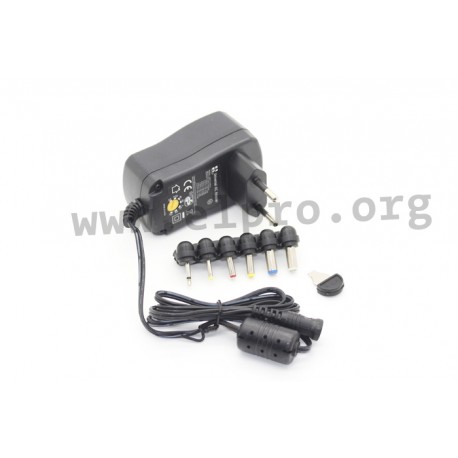

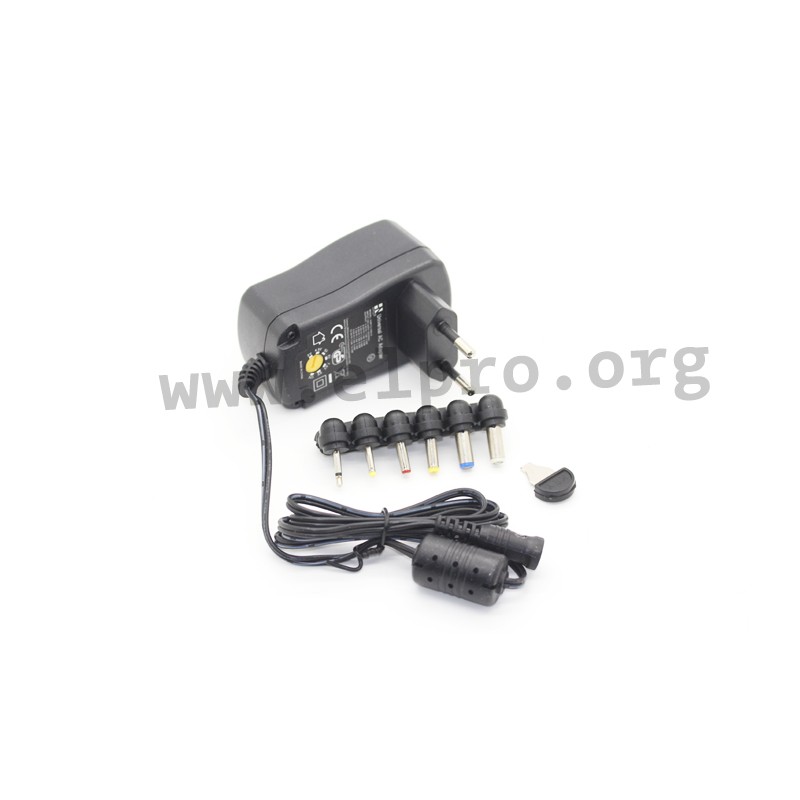

HN-Power plug-in power supply series HNP-UNIL6

Plug-in switching power supplies with an output power of 6 to 24W, a europlug, energy efficiency Level VI and a universal input. These devices have 6 individually pluggable output plugs and are protected against short circuit as well as overload. They have a low no-load power consumption and comply with EN55032, EN55024, EN61000-3-2 as well as EN60950-1. We offer the following types of this HN-Power series: HNP06-UNIL6, HNP12-UNIL6, HNP18-UNIL6 and HNP24-UNIL6.

  • single output
  • output: 6 to 24W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current HNP06/12/18_: 30A
  • maximal input inrush current HNP24_: 40A
  • operating temperature: 0 to +40°C
  • cable length: 1,5m
  • input current HNP06_: 0,2A
  • input current HNP12_: 0,4A
  • input current HNP18_: 0,5A
  • input current HNP24_: 0,6A
HNP06-UNIL6, HN-Power plug-in switching power supplies, 6 to 24W, HNP-UNIL6 series

HNP06-UNIL6

235465 HNP06-UNIL6 HNP06-UNIL6 HN-Power plug-in power supply series HNP-UNIL6. Plug-in switching power supplies with an output power of 6 to 24W, a europlug, energy efficiency Level VI and a universal input. These devices have 6 individually pluggable output plugs and are protected against short circuit as well as overload. They have a low no-load power consumption and comply with EN55032, EN55024, EN61000-3-2 as well as EN60950-1. We offer the following types of this HN-Power series: HNP06-UNIL6, HNP12-UNIL6, HNP18-UNIL6 and HNP24-UNIL6. single output output: 6 to 24W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current HNP06/12/18_: 30A maximal input inrush current HNP24_: 40A operating temperature: 0 to +40°C cable length: 1,5m input current HNP06_: 0,2A input current HNP12_: 0,4A input current HNP18_: 0,5A input current HNP24_: 0,6A

Specifications

manufacturer
Manufacturer's name HNP06-UNIL6
Output voltage [V] 3/4,5/5/6/7,5/9/12
Output current [A] 0,6
Output power [W] 6
Ripple [mVp-p] 200
Data Sheet

Unit price

10,19 €

Stock: 133
Further delivery:
CW 20/2025
