HNP-MOD1205

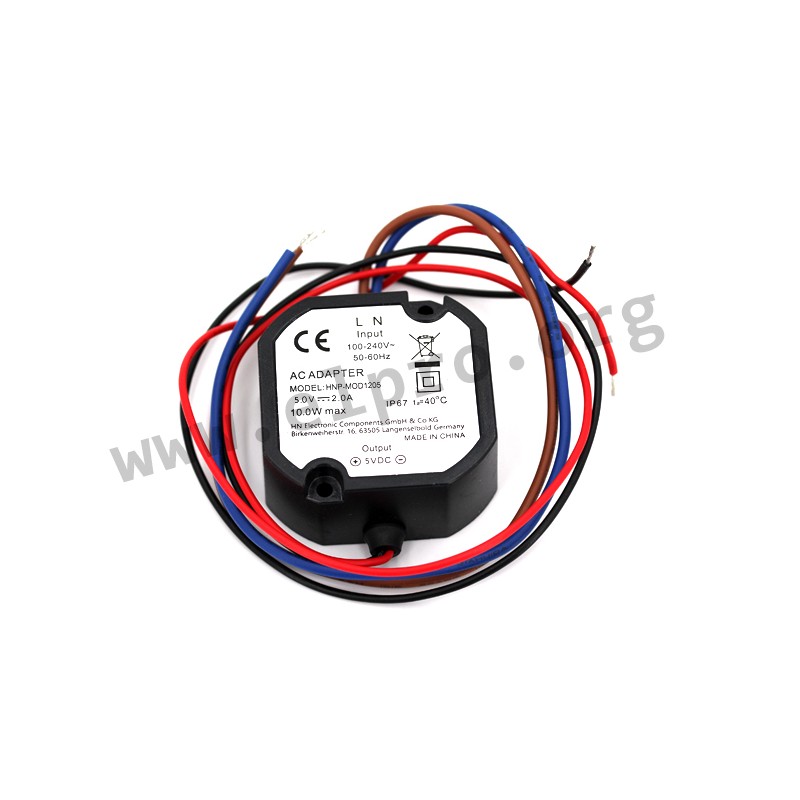

HN-Power switching power supplies series HNP-MOD12

These switching power supplies in a round plastic case are protected against overload and short circuit. They conform with protection class II, IP67, EN55032, and EN62368-1. We offer the following types of this HN-Power series: HNP-MOD1205 and HNP-MOD1212.

  • power output: 12W
  • input voltage range: 90 to 264V AC (47 to 63Hz)
  • input current: 0,3A
  • isolation voltage (I/P-O/P): 3000V
  • conection terminal: strand
  • operating temperature: 0 to +40°C
  • dimensions: 49x51x25mm
  • weight: 100g

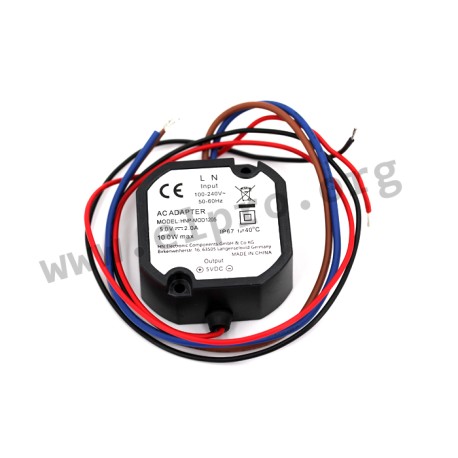

HNP-MOD1205, HN-Power switching power supplies, 12W, plastic case, HNP-MOD12 series

HNP-MOD1205

247302 HNP-MOD1205 HNP-MOD1205 HN-Power switching power supplies series HNP-MOD12. These switching power supplies in a round plastic case are protected against overload and short circuit. They conform with protection class II, IP67, EN55032, and EN62368-1. We offer the following types of this HN-Power series: HNP-MOD1205 and HNP-MOD1212. power output: 12W input voltage range: 90 to 264V AC (47 to 63Hz) input current: 0,3A isolation voltage (I/P-O/P): 3000V conection terminal: strand operating temperature: 0 to +40°C dimensions: 49x51x25mm weight: 100g

Specifications

manufacturer
Manufacturer's name HNP-MOD1205
Output voltage [V] 5
Efficiency [%] 84
Output current [A] 2
Output power [W] 12
Ripple [mVp-p] 300
Data Sheet

Unit price

8,79 €

Stock: 10
Further delivery:
CW 07/2025
