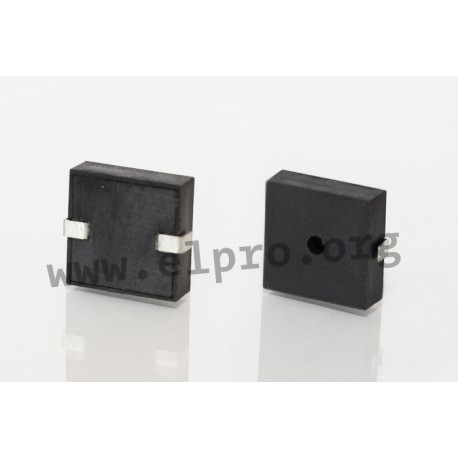

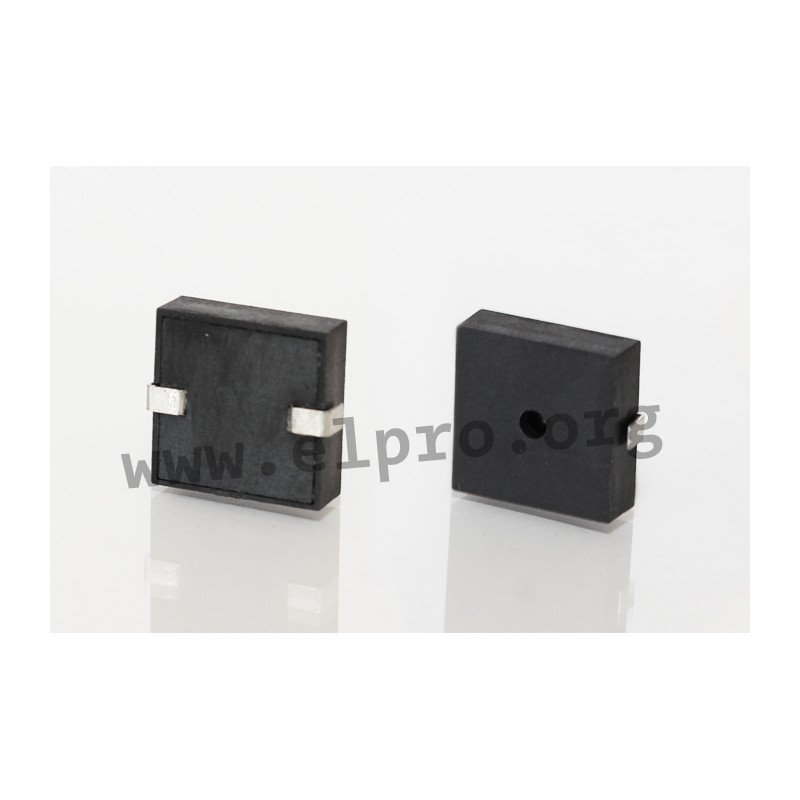

PT-1440 MLQ

Hitpoint SMD piezo buzzer series PT

  • SMD piezo buzzers
  • without a driver circuit
  • with a low current consumption
  • penetrating and clear sound

PT-1440 MLQ

39441 PT-1440 MLQ PT-1440MLQ PT-1440MLQ Hitpoint SMD piezo buzzer series PT. SMD piezo buzzers   without a driver circuit  with a low current consumption   penetrating and clear sound

Specifications

manufacturer
Manufacturer's name PT-1440MLQ
Nominal voltage [Vp-p] 5
Max. operating voltage [V DC] 1...20
Capacity [pF] 12.000
Resonance frequency [kHz] 4
Min. sound pressure [dB] 75
Current consumption [mA] 2

Unit price

1,12 €

Stock: 400
Further delivery:
CW 16/2025

Minimum order quantity 10 units or
multiples of 10.
