> Passive elements>Electroacoustics>Piezo sounders without driver circuit>Hitpoint piezo buzzers, for PCB assembly, PT series>PT-2040 P-PQ

Manufacturers

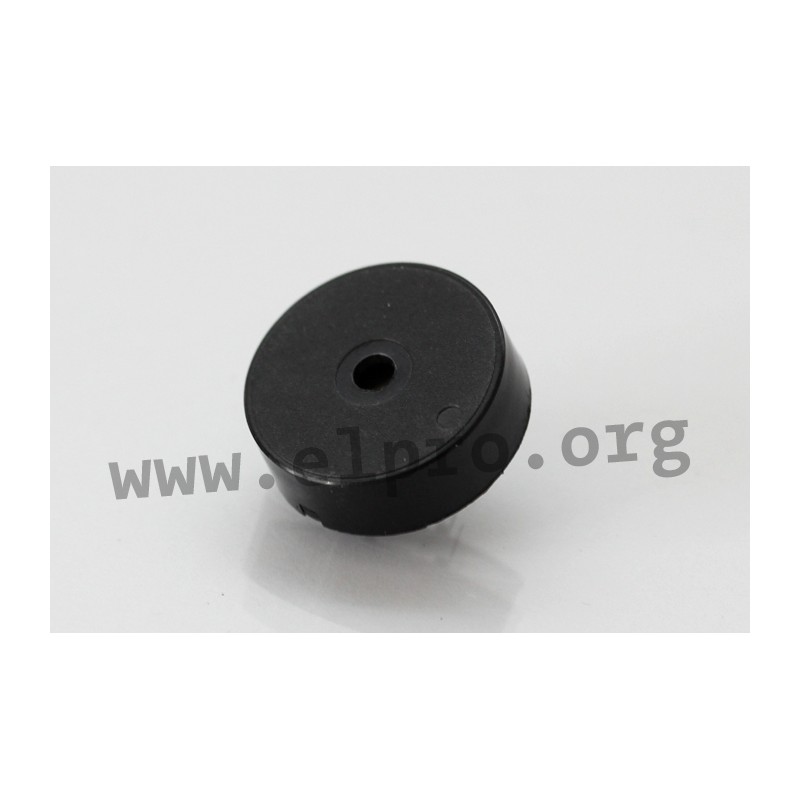

PT-2040 P-PQ

Hitpoint piezo buzzer series PT

  • piezo buzzers
  • without a driver circuit
  • with a low current consumption
  • suitable for PCB mounting
  • capacitance tolerance: ±30% at 120Hz
PT-2040 P-PQ

PT-2040 P-PQ

29813 PT-2040 P-PQ PT-2040PQ PT-2040PQ Hitpoint piezo buzzer series PT. piezo buzzers   without a driver circuit with a low current consumption suitable for PCB mounting capacitance tolerance: ±30% at 120Hz

Specifications

manufacturer
Manufacturer's name PT-2040PQ
Operating temperature range [°C] -20...+85
Operating voltage [V] 30
Capacity [pF] 20.000
Resonance frequency [kHz] 4
Min. sound pressure [dB] 90
Current consumption [mA] 1,5
Data Sheet

Unit price

0,493 €

Stock: 14804
Further delivery:
CW 12/2025

Minimum order quantity 1 to 4 units or multiples of 10 plus 0 to 4 .
