PF-27A35EPDGQ

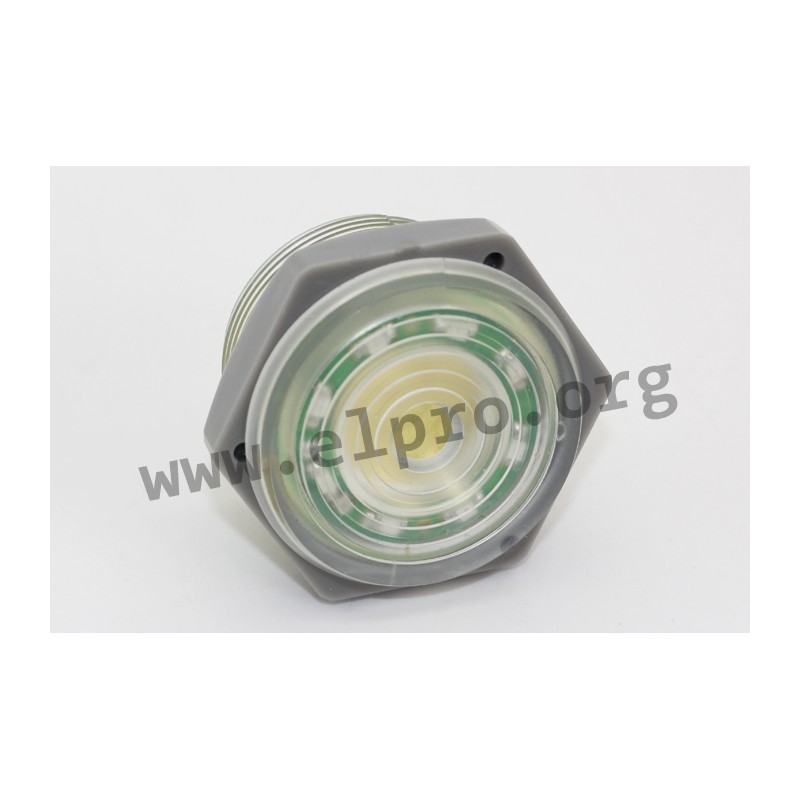

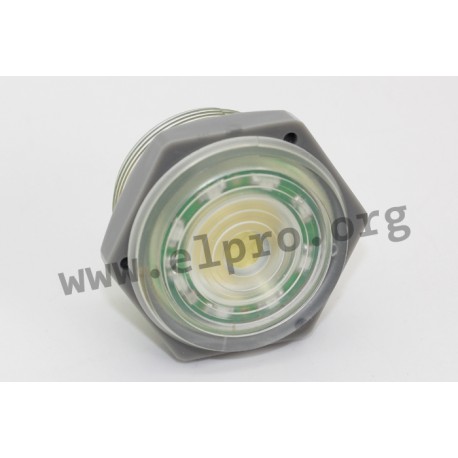

Hitpoint piezo DC buzzer series PF, PK and PL

  • piezo DC buzzers
  • 8 LEDs for simultaneously generating an acoustic and visual signal
  • with a built-in electronic driver circuit and a wide operating voltage range as well as soldering lugs
  • suitable for panel mounting
  • diameter PK_/PF_: 36,5mm
  • diameter PL_: 32,8mm
  • minimum sound pressure level: 95dB
PF-27A35EPDGQ, Hitpoint piezo DC buzzers, with LED, for panel mounting, PF, PK and PL series

PF-27A35EPDGQ

234597 PF-27A35EPDGQ PF-27A35EPDGQ Hitpoint piezo DC buzzer series PF, PK and PL. piezo DC buzzers 8 LEDs for simultaneously generating an acoustic and visual signal with a built-in electronic driver circuit and a wide operating voltage range as well as soldering lugs suitable for panel mounting diameter PK_/PF_: 36,5mm diameter PL_: 32,8mm minimum sound pressure level: 95dB

Specifications

manufacturer
Manufacturer's name PF-27A35EPDGQ
Colour green
Nominal voltage [V] 12
Frequency [kHz] 3,5
Operating voltage [V] 3...15
Current consumption [mA] 18
Tone/pulse rate Fast Pulse 3,0
Data Sheet

Unit price

4,79 €

Stock: 95
Further delivery:
CW 18/2025

Minimum order quantity 5 units or
multiples of 5.
