VQ 30 blau

fully mating connectors, 4mm system

VON, VQ
* by Hirschmann
* contact: spring loaded pin (4mm)
* shatter-proof, flexible insulated sleeve
* the tapering sleeve end also serves as kinking protection for the lead
* contact material: brass, nickel-plated
* housing: PVC-P (UL 94 V-2)
* operating temperature range: -25...+70°C

VON 20
* screw connection up to max. cable cross section of 1.5mm²
* rated voltage: 60V DC
* rated current: 16A
* contact resistance: 3mΩ

VON 30
* solder connection up to max. cable cross section of 2.5mm²
* rated voltage: 60V DC
* rated current: 30A
* contact resistance: 3mΩ

VQ 20
* screw connection up to max. cable cross section of 1.5mm²
* with transverse hole
* rated voltage: 60V DC
* rated current: 16A
* contact resistance: 3mΩ

VQ 30
* solder connection up to max. cable cross section of 2.5mm²
* with transverse hole
* rated voltage: 60V DC
* rated current: 30A
* contact resistance: 3mΩ

VSB 20
* by Hirschmann
* contact: spring loaded pin (4mm)
* with longitudinal or transverse cable entry in tower contruction
* screw connection up to max. cable cross section of 2.5mm² and outer diameter of 4mm
* contact material: brass, nickel-plated
* housing: polypropylene (UL 94 V-2)
* rated voltage: 60V DC
* rated current: 30A
* contact resistance: 3mΩ
* operating temperature range: -25...+70°C

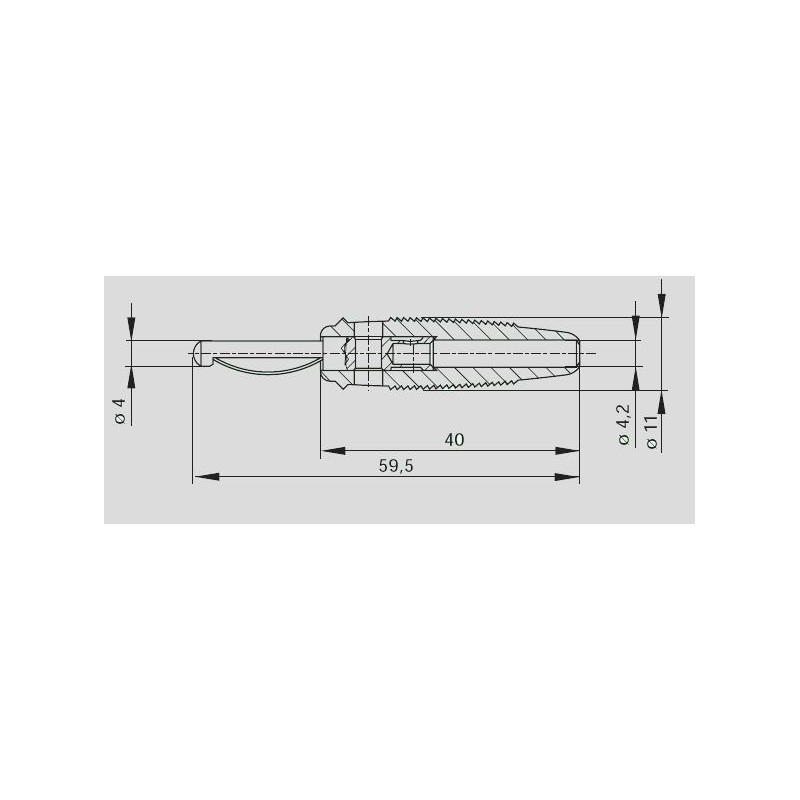

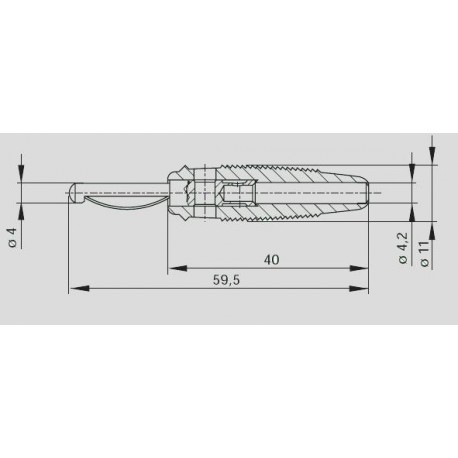

dimensions VQ 30

VQ 30 blau

15125 VQ 30 blau VQ 30 blau fully mating connectors, 4mm system. VON, VQ* by Hirschmann* contact: spring loaded pin (4mm)* shatter-proof, flexible insulated sleeve* the tapering sleeve end also serves as kinking protection for the lead* contact material: brass, nickel-plated* housing: PVC-P (UL 94 V-2)* operating temperature range: -25...+70°CVON 20* screw connection up to max. cable cross section of 1.5mm²* rated voltage: 60V DC* rated current: 16A* contact resistance: 3mΩ VON 30* solder connection up to max. cable cross section of 2.5mm²* rated voltage: 60V DC* rated current: 30A* contact resistance: 3mΩVQ 20* screw connection up to max. cable cross section of 1.5mm²* with transverse hole* rated voltage: 60V DC* rated current: 16A* contact resistance: 3mΩVQ 30* solder connection up to max. cable cross section of 2.5mm²* with transverse hole* rated voltage: 60V DC* rated current: 30A* contact resistance: 3mΩVSB 20* by Hirschmann* contact: spring loaded pin (4mm)* with longitudinal or transverse cable entry in tower contruction* screw connection up to max. cable cross section of 2.5mm² and outer diameter of 4mm* contact material: brass, nickel-plated* housing: polypropylene (UL 94 V-2)* rated voltage: 60V DC* rated current: 30A* contact resistance: 3mΩ* operating temperature range: -25...+70°C

Discontinued items. Only remainder of stock available.

Specifications

Colour blue
Data Sheet

Unit price

0,71 €

Stock: 3
