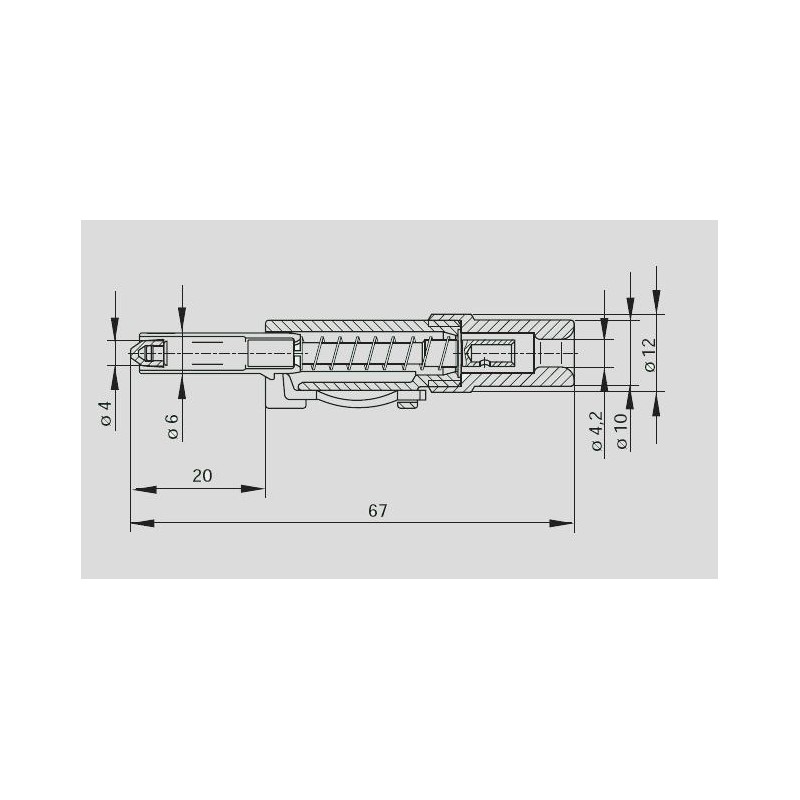

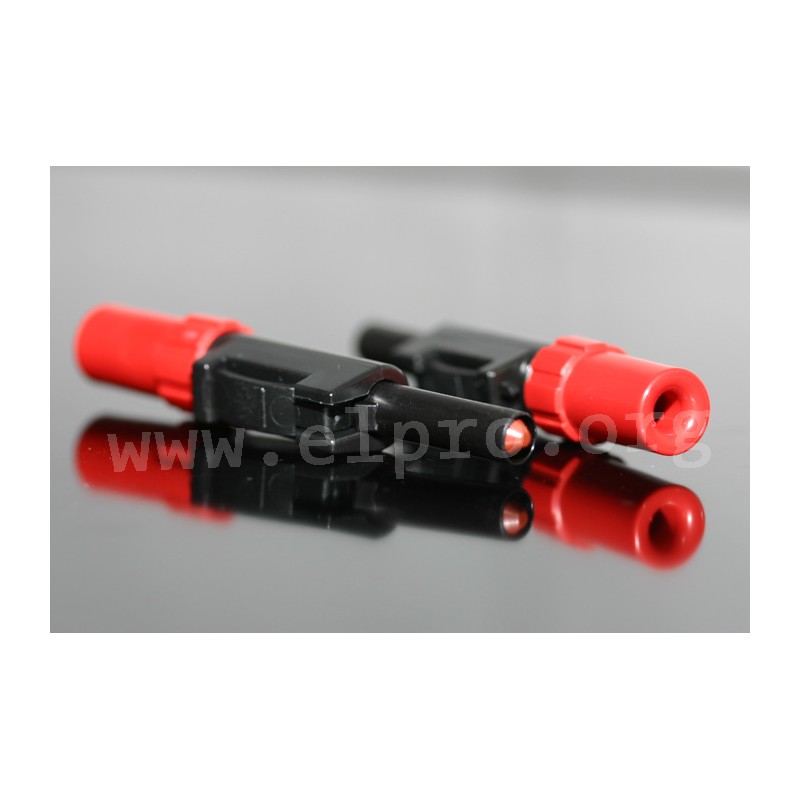

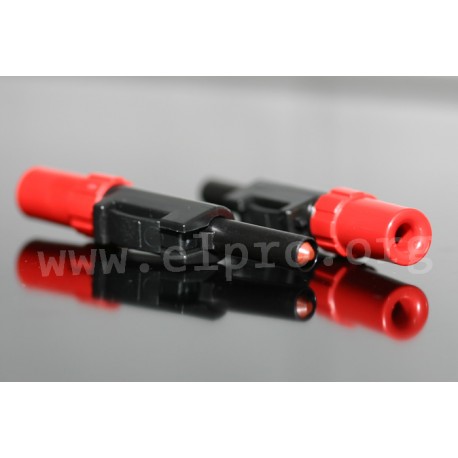

SLS 10 B rot

banana plugs, 4mm sliding sleeve system

* by Hirschmann
* with laminated spring
* contact-protected
* insulated by latching and sprung insulated sleeve which is only released by pressure in the side-mounted locking spring
* contact: spring-loaded pin (4mm)
* contact material: copper-beryllium, nickel-pkated
* housing: polyoxymethylene (UL 94 HB)

SLS 10 B
* may be made uo into cables with solder connection for cross-section up to 2.5mm²
* rated voltage: 60V DC
* rated current: 30A
* resistance: 5mΩ

SLS 20 B
* may be made uo into cables with solder connection for cross-section up to 1.5mm²
* rated voltage: 300V DC
* rated current: 16A
* resistance: 5mΩ

SLS 200
* rated voltage: 30V DC
* rated current: 30A
* resistance: 5mΩ
* housing: polypropylene (UL 94 V-2)
SLS 10 B rot

SLS 10 B rot

15083 SLS 10 B rot SLS 10 B rot banana plugs, 4mm sliding sleeve system. * by Hirschmann* with laminated spring* contact-protected* insulated by latching and sprung insulated sleeve which is only released by pressure in the side-mounted locking spring* contact: spring-loaded pin (4mm)* contact material: copper-beryllium, nickel-pkated* housing: polyoxymethylene (UL 94 HB)SLS 10 B* may be made uo into cables with solder connection for cross-section up to 2.5mm²* rated voltage: 60V DC* rated current: 30A* resistance: 5mΩSLS 20 B* may be made uo into cables with solder connection for cross-section up to 1.5mm²* rated voltage: 300V DC* rated current: 16A* resistance: 5mΩSLS 200* rated voltage: 30V DC* rated current: 30A* resistance: 5mΩ* housing: polypropylene (UL 94 V-2)

Discontinued items. Only remainder of stock available.

Specifications

Colour red
Data Sheet

Unit price

2,29 €

Stock: 5
