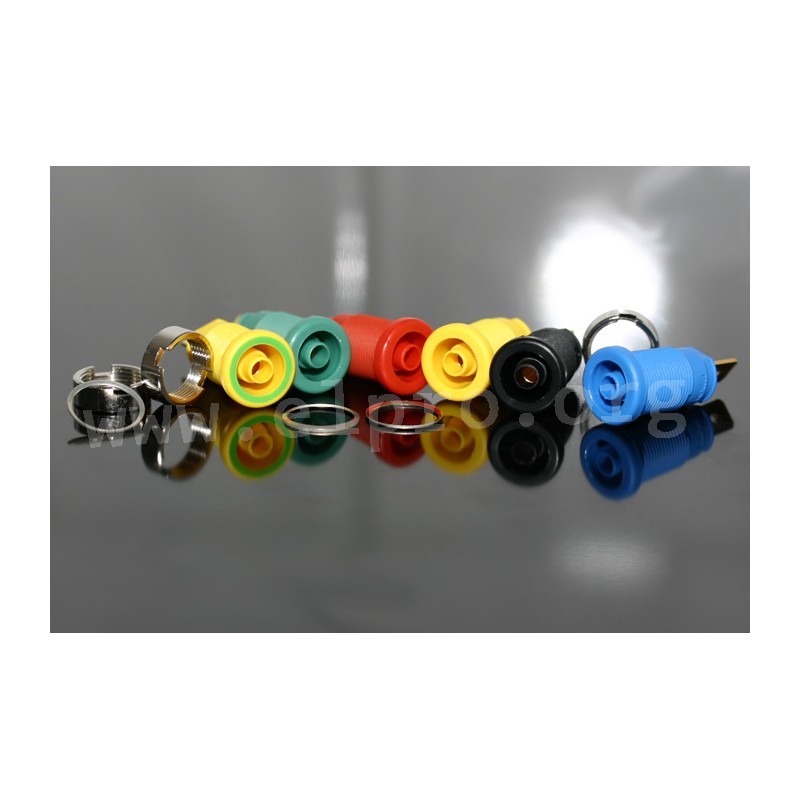

SEB 2620-F 6,3 grün

safety built-in sockets, 4 mm system

* by Hirschmann
* contact: 4mm socket
* contact-proof
* contact material: beass, gold-plated
* housing: polyamide (UL 94 V-2)
* installation hole: Ø 12.2mm
* norm: IEC 61010
* category: CAT II
* operating temperature range: -40...+80°C

SEB 2600-G
* 4mm built-in socket
* M4 screw connection
* for installation into switch-panels and equipment chassis with wall thicknesses up to 6mm
* rated voltage: 1000V AC/DC
* rated current: 32A
* resistance: 5mΩ
* tightening torque: 50Ncm

SEP 2610 F 4,8
* 4mm press-in socket
* 4.8x0.8 tab connector complying with DIN 46 244
* for installation into switch-panels with wall thicknesses of 1-10mm
* rated voltage: 1000V AC/DC
* rated current: 24A
* resistance: 5mΩ

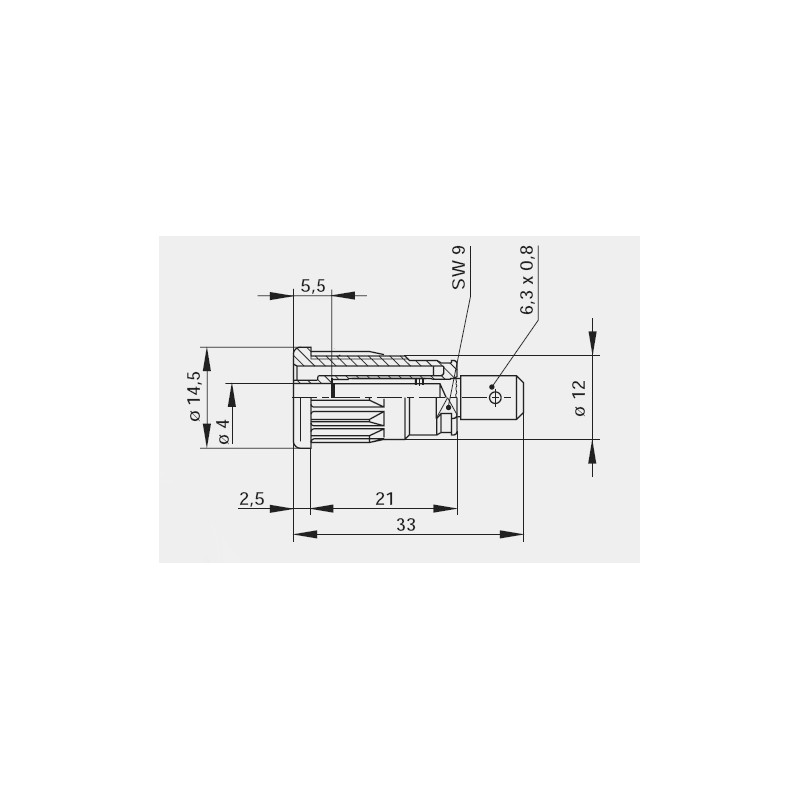

SEB 2620-F 6,3
* 4mm built-in socket
* 6.3x0.8 tab connector complying with DIN 46 244
* for installation into switch-panels and equipment chassis with wall thicknesses up to 6mm
* rated voltage: 1000V AC/DC
* rated current: 32A
* resistance: 5mΩ
* tightening torque: 50Ncm

SEP 2630 S1,9
* 4mm press-in socket
* soldering spike 1,9mm
* for installation into switch-panels with wall thicknesses of 1-10mm
* rated voltage: 1000V AC/DC
* rated current: 24A
* resistance: 5mΩ
* entry chamfer: 0,5x45 Grad

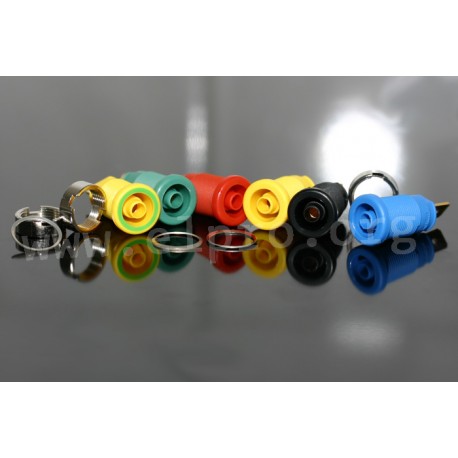

SEB 2620-F 6,3

SEB 2620-F 6,3 grün

15069 SEB 2620-F 6,3 grün SEB 2620-F 6,3 grün safety built-in sockets, 4 mm system. * by Hirschmann* contact: 4mm socket* contact-proof* contact material: beass, gold-plated* housing: polyamide (UL 94 V-2)* installation hole: Ø 12.2mm* norm: IEC 61010* category: CAT II* operating temperature range: -40...+80°CSEB 2600-G* 4mm built-in socket* M4 screw connection* for installation into switch-panels and equipment chassis with wall thicknesses up to 6mm* rated voltage: 1000V AC/DC* rated current: 32A* resistance: 5mΩ* tightening torque: 50Ncm SEP 2610 F 4,8* 4mm press-in socket* 4.8x0.8 tab connector complying with DIN 46 244 * for installation into switch-panels with wall thicknesses of 1-10mm* rated voltage: 1000V AC/DC* rated current: 24A* resistance: 5mΩSEB 2620-F 6,3* 4mm built-in socket* 6.3x0.8 tab connector complying with DIN 46 244 * for installation into switch-panels and equipment chassis with wall thicknesses up to 6mm* rated voltage: 1000V AC/DC* rated current: 32A* resistance: 5mΩ* tightening torque: 50Ncm SEP 2630 S1,9* 4mm press-in socket* soldering spike 1,9mm* for installation into switch-panels with wall thicknesses of 1-10mm* rated voltage: 1000V AC/DC* rated current: 24A* resistance: 5mΩ* entry chamfer: 0,5x45 Grad

Discontinued items. Only remainder of stock available.

Specifications

Colour green
Data Sheet

Unit price

1,53 €

Stock: 8
