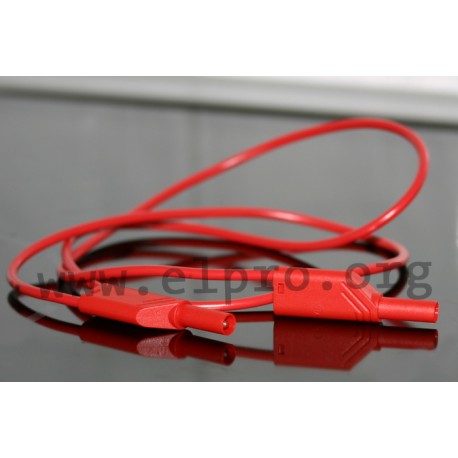

MLS WS 200/1 rot

measuring leads, 4mm safety system

* by Hirschmann
* contact-protected (nach IEC 61010)
* at either end 4 mm diameter safety connector with onward connection capability
* highly flexible, double insulated stranded lead
* shatter-proof grip sleeve and lead
* built in colour indicator for easy indetification of insulation damages
* contact: spring-loaded pin
* cable type: LEH-XY
* lead cross-section: PVC (UL 94 HB)
* lead cross-section: 1mm²
* lead design: 259x0,07
* rated voltage: 1000V AC/DC
* category: CAT III
* rated current: 16A
* contact material: copper-beryllium, nickel-plated
* housing: polyamide (UL 94 V-2)
* operating temperature range: -15...+70°C
* resistance, MLS WS 100/1: 22mΩ
* resistance, MLS WS 200/1: 40mΩ
MLS WS rot

MLS WS 200/1 rot

31788 MLS WS 200/1 rot MLS WS 200/1 rot measuring leads, 4mm safety system. * by Hirschmann* contact-protected (nach IEC 61010)* at either end 4 mm diameter safety connector with onward connection capability* highly flexible, double insulated stranded lead* shatter-proof grip sleeve and lead* built in colour indicator for easy indetification of insulation damages* contact: spring-loaded pin* cable type: LEH-XY * lead cross-section: PVC (UL 94 HB)* lead cross-section: 1mm²* lead design: 259x0,07* rated voltage: 1000V AC/DC* category: CAT III* rated current: 16A* contact material: copper-beryllium, nickel-plated* housing: polyamide (UL 94 V-2)* operating temperature range: -15...+70°C* resistance, MLS WS 100/1: 22mΩ* resistance, MLS WS 200/1: 40mΩ

Discontinued items. Only remainder of stock available.

Specifications

Colour red
Cable length [cm] 200
Data Sheet

Unit price

5,19 €

Stock: 4
