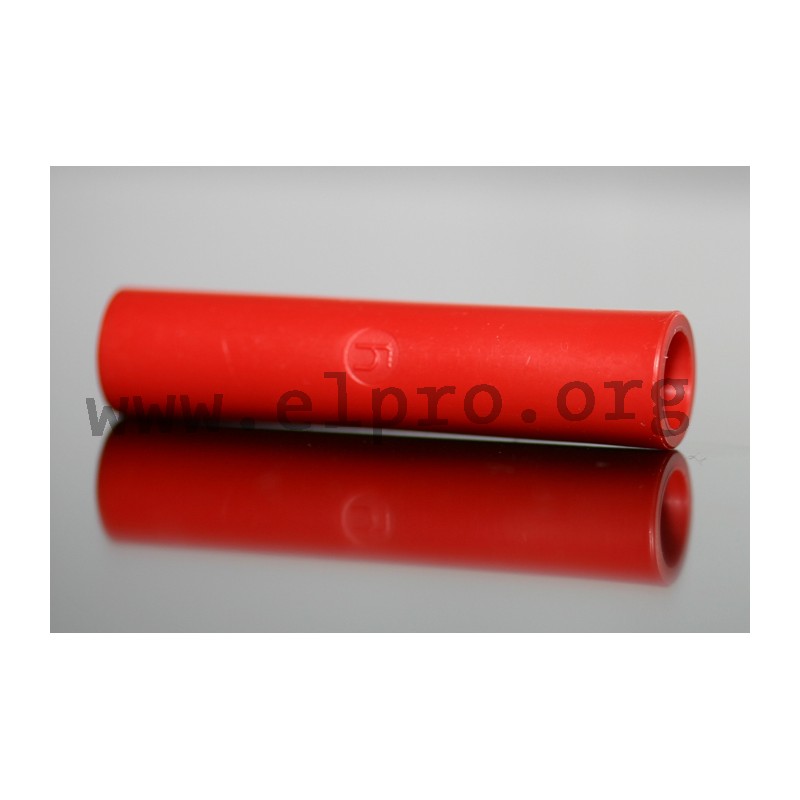

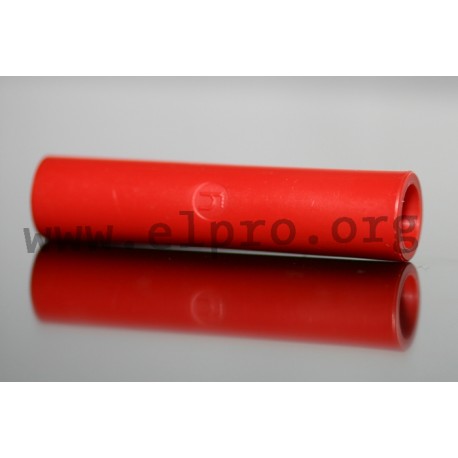

KD 10 rot

insulated coupling, 4mm system

• by Hirschmann
• 4mm socket
• operating temperature ramge: -25...70°C

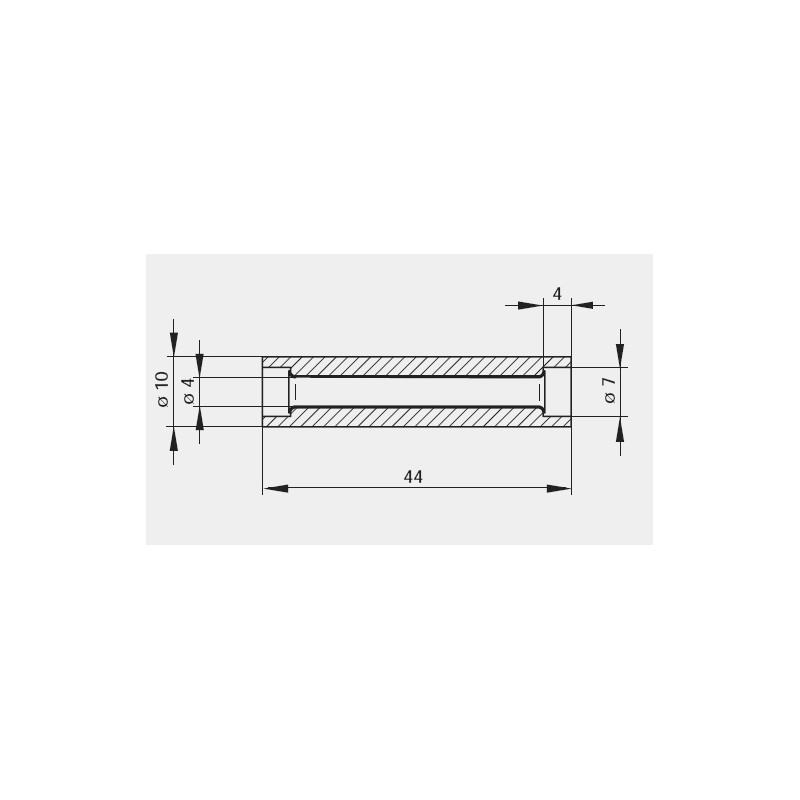

KD 10
• with a nickel-plated brass tube for two 4mm diameter plugs
• rated voltage: 60V DC
• rated current: 10A
• resistance: 5MΩ
• contact material: brass, nickel-plated
• housing: polyamide

KUN 10
• for a 4mm diameter plug and a screw connection up to cable cross-section of 1.5mm²
• contact material: brass, tin-plated
• housing: polystyrene
• rated voltage: 60V DC
• rated current: 16A
• resistance: 3mΩ
• the socket is screwed into the insulated handle


KUN 30
• shatter-proof, flexible, insulated coupling
• solder connection up to a cable cross-section of 2.5mm²
• contact material: brass, tin-plated
• housing: PVC-P (UL 94 V-2)
• rated voltage: 60V DC
• rated current: 16A
• resistance: 3mΩ
KD 10 rot

KD 10 rot

14950 KD 10 rot KD 10 rot insulated coupling, 4mm system. * by Hirschmann* 4mm socket* operating temperature ramge: -25...70°CKD 10* with a nickel-plated brass tube for two 4mm diameter plugs* rated voltage: 60V DC* rated current: 10A* resistance: 5MΩ* contact material: brass, nickel-plated* housing: polyamideKUN 10* for a 4mm diameter plug and a screw connection up to cable cross-section of 1.5mm²* contact material: brass, tin-plated* housing: polystyrene* rated voltage: 60V DC* rated current: 16A* resistance: 3mΩ* the socket is screwed into the insulated handleKUN 30* shatter-proof, flexible, insulated coupling* solder connection up to a cable cross-section of 2.5mm²* contact material: brass, tin-plated* housing: PVC-P (UL 94 V-2)* rated voltage: 60V DC* rated current: 16A* resistance: 3mΩ

Discontinued items. Only remainder of stock available.

Specifications

Rated current 10A
Colour red
Data Sheet

Unit price

0,66 €

Stock: 4
