BSB 300 rot

multiple spring wire plugs, 4mm system

BÜLA
* by Hirschmann
* contact: spring-loaded pin (4mm)
* shatter-proof, flexible insulated sleeve with transverse hole
* the tapering sleeve end also serves as kinking protection for the lead
* contact material: brass, nickel-plated
* housing: PCV-P (UL 94 V-2)
* operating temperature range: -25...+70°C

BÜLA 20 K
* screw connection up to max. cable cross section of 1.5mm²
* rated voltage: 60V DC
* rated current: 16A
* contact resistance: 3mΩ

BÜLA 30 K
* soldering connection up to max. cable cross section of 2.5mm²
* rated voltage: 60V DC
* rated current: 30A
* contact resistance: 3mΩ

BÜLA 300 K
* soldering connection up to max. cable cross section of 2.5mm²
* lateral supports provide protection against contact when plugged in at right angles
* rated voltage: 60V DC
* rated current: 30A
* contact resistance: 3mΩ

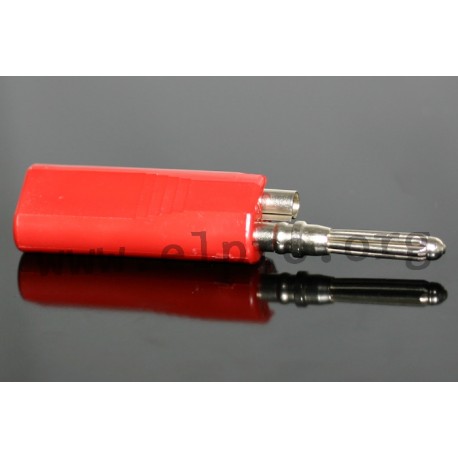

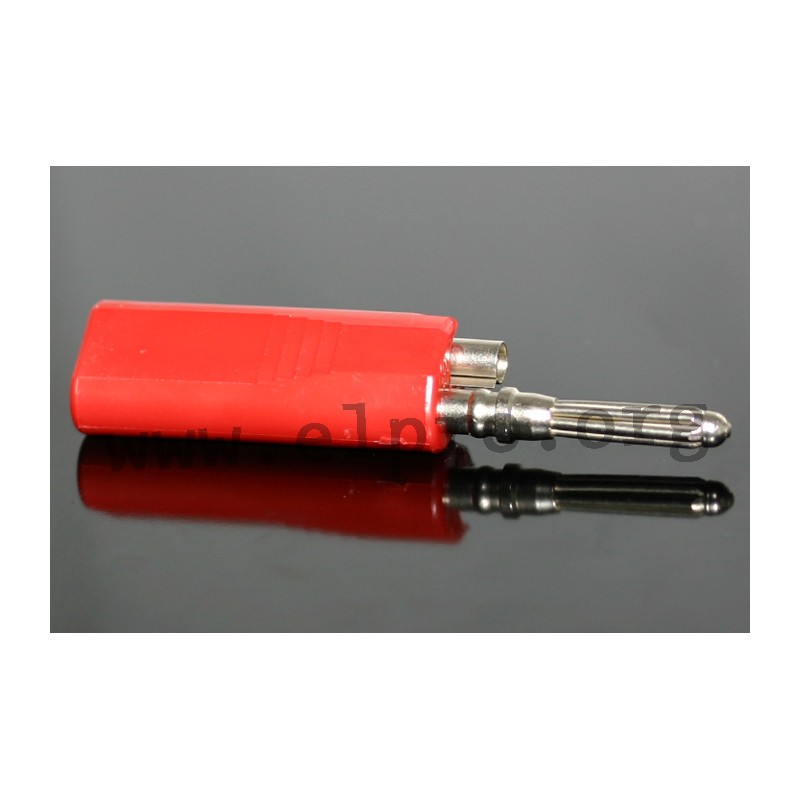

BSB 300
* by Hirschmann
* contact: 4mm (spring-loaded) pin, socket
* with coupling located parallel to the connector pin
* th plugs can be connected together without shorting
* solder connection up to max. cable cross section of 1.5mm²
* contact material: brass, nickel-plated
* housing: polypropylene (UL 94 V-2)
* rated voltage: 60V DC
* rated current: 16A
* contact resistance: 3mΩ
* operating temperature range: -25...+100°C
BSB 300 rot

BSB 300 rot

14898 BSB 300 rot BSB 300 rot multiple spring wire plugs, 4mm system. BÜLA* by Hirschmann* contact: spring-loaded pin (4mm)* shatter-proof, flexible insulated sleeve with transverse hole* the tapering sleeve end also serves as kinking protection for the lead* contact material: brass, nickel-plated* housing: PCV-P (UL 94 V-2)* operating temperature range: -25...+70°CBÜLA 20 K* screw connection up to max. cable cross section of 1.5mm²* rated voltage: 60V DC* rated current: 16A* contact resistance: 3mΩBÜLA 30 K* soldering connection up to max. cable cross section of 2.5mm²* rated voltage: 60V DC* rated current: 30A* contact resistance: 3mΩBÜLA 300 K* soldering connection up to max. cable cross section of 2.5mm²* lateral supports provide protection against contact when plugged in at right angles* rated voltage: 60V DC* rated current: 30A* contact resistance: 3mΩBSB 300* by Hirschmann* contact: 4mm (spring-loaded) pin, socket* with coupling located parallel to the connector pin* th plugs can be connected together without shorting* solder connection up to max. cable cross section of 1.5mm²* contact material: brass, nickel-plated* housing: polypropylene (UL 94 V-2)* rated voltage: 60V DC* rated current: 16A* contact resistance: 3mΩ* operating temperature range: -25...+100°C

Discontinued items. Only remainder of stock available.

Specifications

Rated current 16A/30A
Colour red
Data Sheet

Unit price

2,39 €

Stock: 1
