717014-09

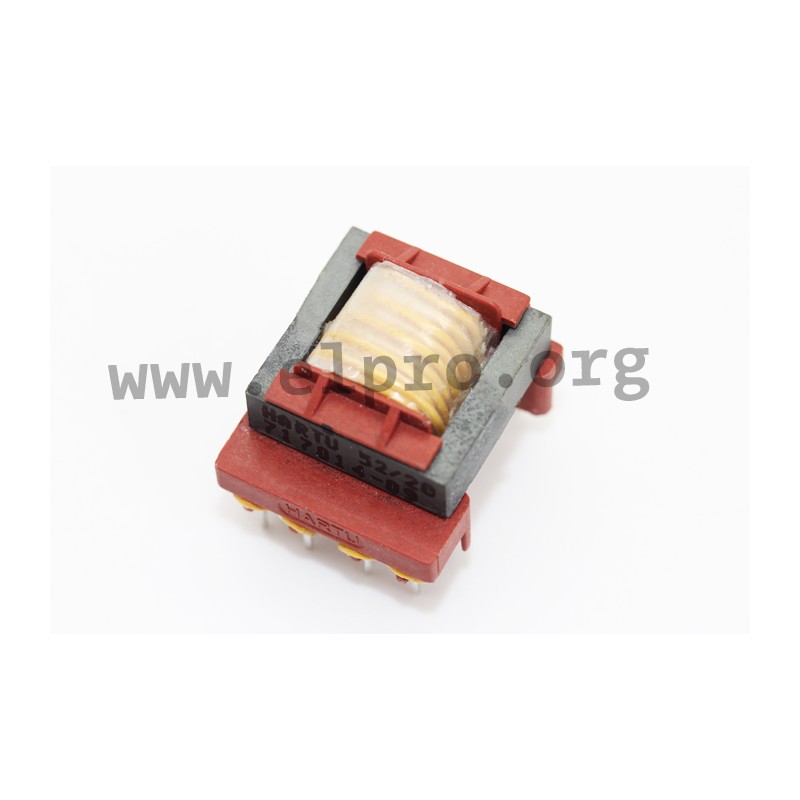

switch mode power transformers TinySwitch® by Hartu

• the converter uses the principle of energy storage to transfer voltage from the input to the output in power transformer technology for this TinySwitch® series.
• reinforced insulation to secure the requirements of EN61558-2
• optimized noise design
• low capacity primary winding for short switching times and high efficiency



• high quality power ferrite for low iron loss
• outputs can be switched in row or parallel
• input voltage range: 85...265V
• climatic category: 40/110/21
• test voltage W1 against W2 and W3 (50Hz/2s): 3750V
• by Hartu

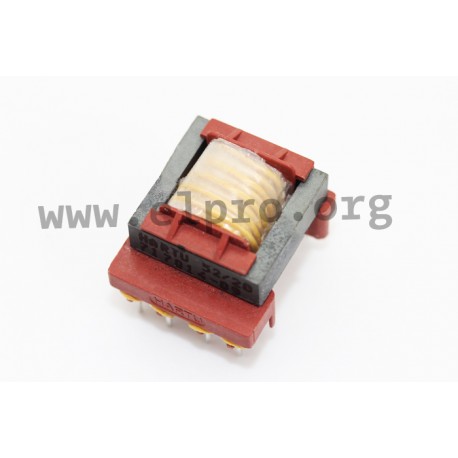

717014-09, Hartu flyback converters, for Tiny Switch switching regulators, EF 16

717014-09

43276 717014-09 717014-09 switch mode power transformers TinySwitch® by Hartu. • the converter uses the principle of energy storage to transfer voltage from the input to the output in power transformer technology for this TinySwitch® series.• reinforced insulation to secure the requirements of EN61558-2• optimized noise design• low capacity primary winding for short switching times and high efficiency • high quality power ferrite for low iron loss• outputs can be switched in row or parallel• input voltage range: 85...265V• climatic category: 40/110/21• test voltage W1 against W2 and W3 (50Hz/2s): 3750V• by Hartu

Specifications

manufacturer
Manufacturer's name 717014-09
Output voltage [V] 2x6
For TNY 268
Nominal capacity [VA] 10
Inductance, no load [mH] 0,725

Unit price

1,74 €

Stock: 744
Further delivery:
CW 16/2025

Minimum order quantity 1 to 6 units or multiples of 8 plus 0 to 6 .
