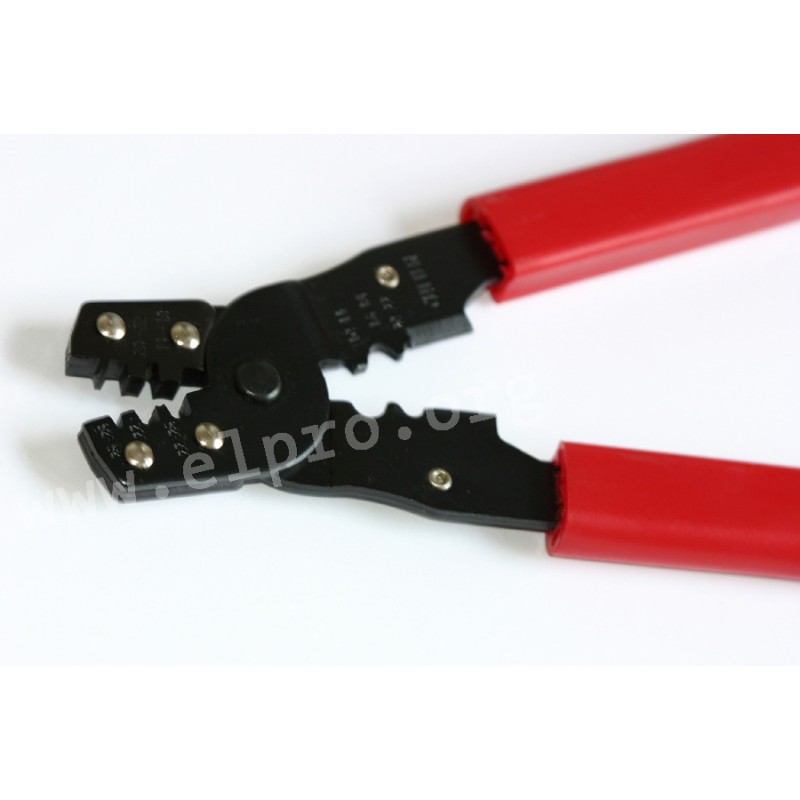

EWZ 202 B

Crimping pliers for end sleeves, receptacles and crimping contacts

EWZ:

  • crimping pliers made of special steel, black burnished surface
  • all types except EWZ230C feature high transmission of force due to lever action, precision dies and integral lock
  • easy to handle due to well formed PVC insulated grips
  • length: 220 mm

HT4362C and HT4362H:

  • universal crimping pliers for cables or terminals
  • with ratchet release and PP and TPR hand grip
  • made of oil-hardened and black oxide finished special steel
  • length: 220 mm

HTK6A02:

  • universal crimping pliers with diverse die sets
  • with an angle head with streamline ergonomic handle design
  • made of oil-hardened and black oxide finished special steel
  • length: 220 mm

Application:

  • EWZ 301 E for end sleeves, insulated and non-insulated crimping sleeves, for cables up 0.5 to 4mm² (AWG 22 bis 12)
  • EWZ 301 S for end sleeves, insulated and non-insulated crimping sleeves for cables up 6 to 16mm² (AWG 10 to 6)
  • EWZ 301 for insulated connectors and receptacles, for cables up 0.5 to 6mm² (AWG 22 to 10)
  • EWZ 230 C for non-insulated connectors and receptacles, for cables up 0.75 to 6mm² (AWG 20 to 10)
  • EWZ 301 U for non-insulated connectors and receptacles, for cables up 0.5 to 2.5mm² (AWG 22 to 14)
  • EWZ 225 D for non-Insulated connectors and receptacles as well as crimping contacts, for cables up 0.5 to 1mm² (AWG 22 to 18)
  • EWZ 202 B for IC pins, soldering-in pins and receptacles and non-insulated connectors
  • HT4362C for non-insulated and open barrel terminals, for cables with a cross section of 0,5 to 6,0mm²
  • HT4362H for insulated terminals, for cables with a cross section of 0,5 to 6,0mm²
  • HTK6A02 for non-insulated, insulated, D-Sub as well as open barrel terminals and for non-insulated ferrules, for cables with a cross section of 0,25 to 16,0mm²
EWZ 202 B

EWZ 202 B

17252 EWZ 202 B HT-202B HT-202B Crimping pliers for end sleeves, receptacles and crimping contacts. EWZ: crimping pliers made of special steel, black burnished surface all types except EWZ230C feature high transmission of force due to lever action, precision dies and integral lock easy to handle due to well formed PVC insulated grips length: 220 mm HT4362C and HT4362H: universal crimping pliers for cables or terminals with ratchet release and PP and TPR hand grip made of oil-hardened and black oxide finished special steel length: 220 mm HTK6A02: universal crimping pliers with diverse die sets with an angle head with streamline ergonomic handle design made of oil-hardened and black oxide finished special steel length: 220 mm Application: EWZ 301 E for end sleeves, insulated and non-insulated crimping sleeves, for cables up 0.5 to 4mm² (AWG 22 bis 12) EWZ 301 S for end sleeves, insulated and non-insulated crimping sleeves for cables up 6 to 16mm² (AWG 10 to 6) EWZ 301 for insulated connectors and receptacles, for cables up 0.5 to 6mm² (AWG 22 to 10) EWZ 230 C for non-insulated connectors and receptacles, for cables up 0.75 to 6mm² (AWG 20 to 10) EWZ 301 U for non-insulated connectors and receptacles, for cables up 0.5 to 2.5mm² (AWG 22 to 14) EWZ 225 D for non-Insulated connectors and receptacles as well as crimping contacts, for cables up 0.5 to 1mm² (AWG 22 to 18) EWZ 202 B for IC pins, soldering-in pins and receptacles and non-insulated connectors HT4362C for non-insulated and open barrel terminals, for cables with a cross section of 0,5 to 6,0mm² HT4362H for insulated terminals, for cables with a cross section of 0,5 to 6,0mm² HTK6A02 for non-insulated, insulated, D-Sub as well as open barrel terminals and for non-insulated ferrules, for cables with a cross section of 0,25 to 16,0mm²

Specifications

manufacturer
Manufacturer's name HT-202B

Unit price

7,99 €

Stock: 1
Next incoming goods:
CW 49/2024
200 units

Further delivery:
CW 08/2025
