1598GBK

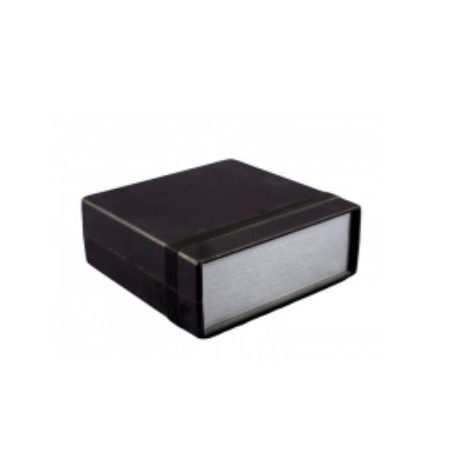

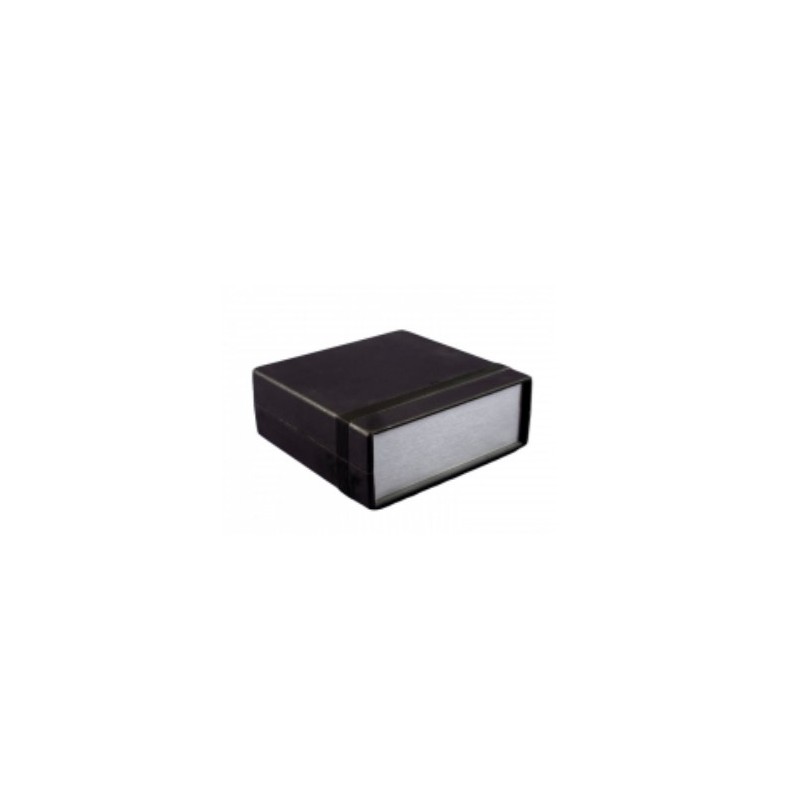

Hammond ABS plastic enclosure series 1598

Black flame-retardant ABS plastic enclosures (UL94V-0) with 1.6mm brushed aluminum front and endplates (protective paper on one side), ideally suited for printed circuit boards. These housings have standoffs for the horizontal mounting of Euroboards as well as two sets of vertical 1.5mm (0.062") PCB guides which are molded into the case halves at the front and the rear. They comply with IP54. The enclosure halves are secured with  M3x0.5"x10mm Phillips machine screws which are screwed into brass threaded bushes. We offer the following versions of this Hammond series: 1598BBK, 1598ABK, 1598EBK, 1598BBBK, 1598CBK, 1598DBK, 1598FBK, 1598GBK, 1598HBK and 1598JBK.

1598GBK, Hammond, flame retardant, IP54, 1598 series

1598GBK

114649 1598GBK 1598GBK Hammond ABS plastic enclosure series 1598. Black flame-retardant ABS plastic enclosures (UL94V-0) with 1.6mm brushed aluminum front and endplates (protective paper on one side), ideally suited for printed circuit boards. These housings have standoffs for the horizontal mounting of Euroboards as well as two sets of vertical 1.5mm (0.062") PCB guides which are molded into the case halves at the front and the rear. They comply with IP54. The enclosure halves are secured with  M3x0.5"x10mm Phillips machine screws which are screwed into brass threaded bushes. We offer the following versions of this Hammond series: 1598BBK, 1598ABK, 1598EBK, 1598BBBK, 1598CBK, 1598DBK, 1598FBK, 1598GBK, 1598HBK and 1598JBK.

Specifications

manufacturer
Manufacturer's name 1598GBK
Height [mm] 75
Width [mm] 159
Length [mm] 249,7
Data Sheet

Unit price

20,89 €

Stock: 7
Further delivery:
CW 50/2024
