1553WDGY

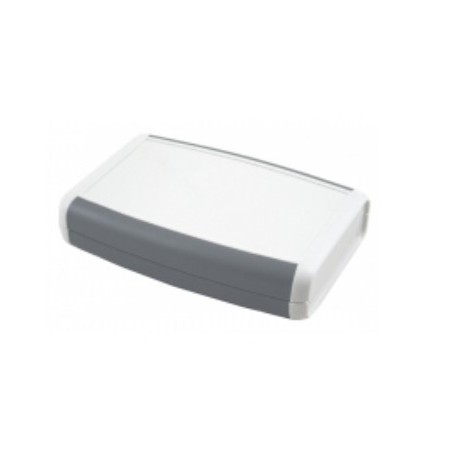

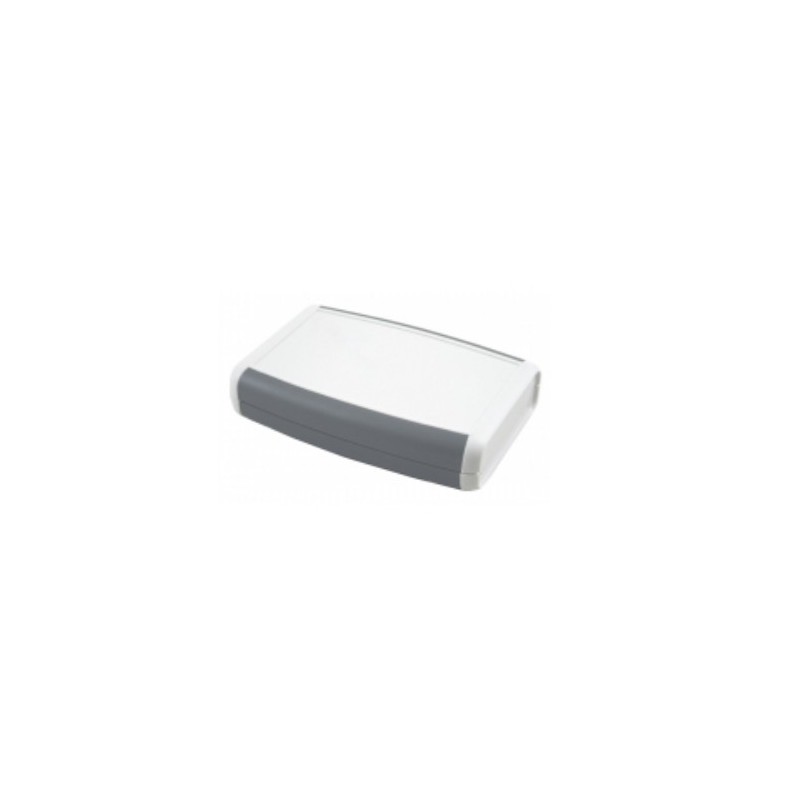

Hammond ABS handheld enclosure series 1553W

Small handheld enclosures in black or grey made of flame-retardant, UV stabilised ABS plastic (FRABS; UL94V-0) with a one-piece silicone gasket and IP65. These housings are ergonomically designed to lie comfortably in one's hand (grey soft plastic grips) and have a tongue and groove construction. In addition, the top cover is recessed for a membrane display or keypad. They are secured with black Phillips stainless steel machine screws which are threaded into brass bushings. We offer the following versions of this Hammond series: 1553WBBK, 1553WBGY, 1553WCBK, 1553WCGY, 1553WDBK and 1553WDGY.

1553WDGY, Hammond small handheld enclosures, IP65, ABS, 1553W series

1553WDGY

114521 1553WDGY 1553WDGY Hammond ABS handheld enclosure series 1553W. Small handheld enclosures in black or grey made of flame-retardant, UV stabilised ABS plastic (FRABS; UL94V-0) with a one-piece silicone gasket and IP65. These housings are ergonomically designed to lie comfortably in one's hand (grey soft plastic grips) and have a tongue and groove construction. In addition, the top cover is recessed for a membrane display or keypad. They are secured with black Phillips stainless steel machine screws which are threaded into brass bushings. We offer the following versions of this Hammond series: 1553WBBK, 1553WBGY, 1553WCBK, 1553WCGY, 1553WDBK and 1553WDGY.

Specifications

manufacturer
Manufacturer's name 1553WDGY
Colour grey
Height [mm] 25
Width [mm] 89,99
Length [mm] 147,25
Data Sheet

Unit price

16,69 €

Stock: 5
Further delivery:
CW 50/2024
