MUGE 230

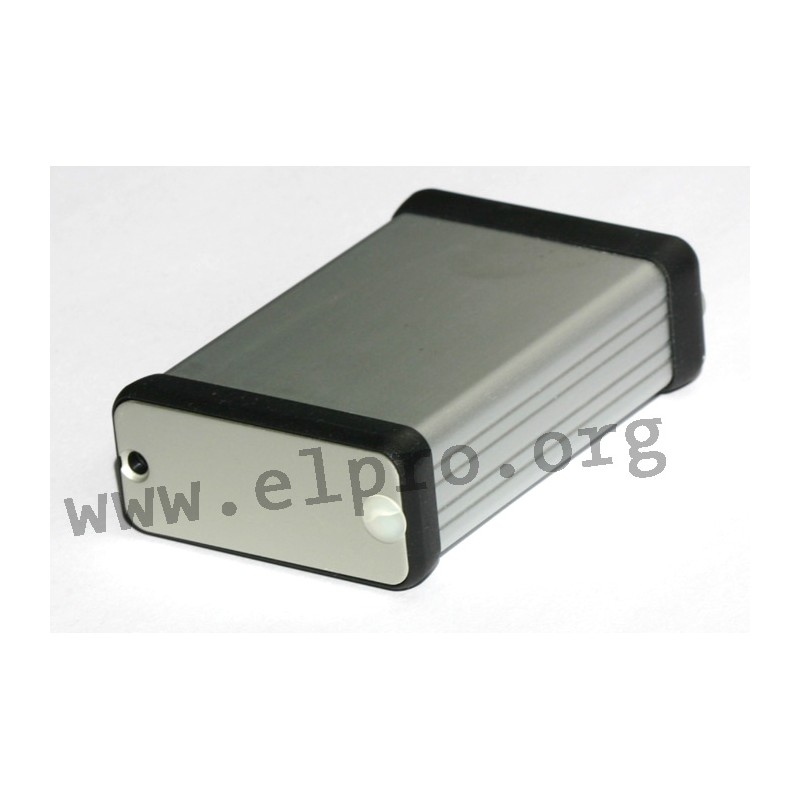

Hammond extruded aluminium enclosure series 1455

  • sturdy extruded enclosures made of aluminium
  • with an anodized finish, two aluminium end panels and a good EMV transmission performance rating
  • suitable for the insertion of PCBs (max. 1,5mm) through guiding grooves
MUGE 230

MUGE 230

29093 MUGE 230 1455K1201 1455K1201 Hammond extruded aluminium enclosure series 1455. sturdy extruded enclosures made of aluminium with an anodized finish, two aluminium end panels and a good EMV transmission performance rating suitable for the insertion of PCBs (max. 1,5mm) through guiding grooves

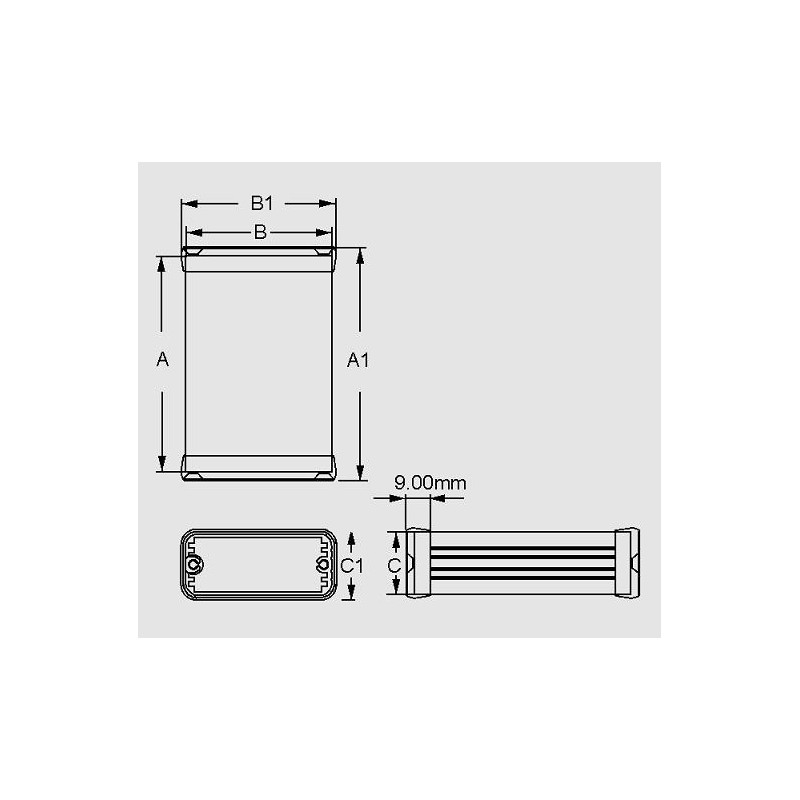

Specifications

manufacturer
Manufacturer's name 1455K1201
Colour clear anod.
A [mm] 120
Width [mm] 78
C [mm] 43
B1 [mm] 81,13
C1 [mm] 46,13
A1 [mm] 126
Data Sheet

Unit price

15,89 €

Stock: 34
Further delivery:
CW 50/2024
