BV EI 307 8011

Hahn PCB transformers

Transformers in a self-extinguishing housing with an EI30 core and 1,3VA. These devices have a low no-load loss (<0,4W) and comply with temperature resistance class Ta 70/F as well as EN61558. They are short circuit proof and suitable for PCB mounting. We offer the type BV EI 307 8011 of this Hahn series.

  • core: EI30
  • output: 1,3VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/F
  • no-load power loss: <0,4W
  • maximal end temperature (short circuit): 210°C
  • maximal end temperature: 140°C
BV EI 307 _

BV EI 307 8011

38898 BV EI 307 8011 BVEI3078011 BVEI3078011 Hahn&nbsp;PCB transformers. Transformers in a self-extinguishing housing with an EI30 core and 1,3VA. These devices have a low no-load loss (&lt;0,4W) and comply&nbsp;with temperature resistance&nbsp;class Ta 70/F as well as EN61558. They are&nbsp;short circuit proof and suitable for PCB mounting.&nbsp;We offer the type BV EI 307 8011 of this Hahn series. core: EI30 output: 1,3VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/F no-load power loss: &lt;0,4W maximal end temperature (short circuit): 210&deg;C maximal end temperature: 140&deg;C

Specifications

manufacturer
Manufacturer's name BVEI3078011

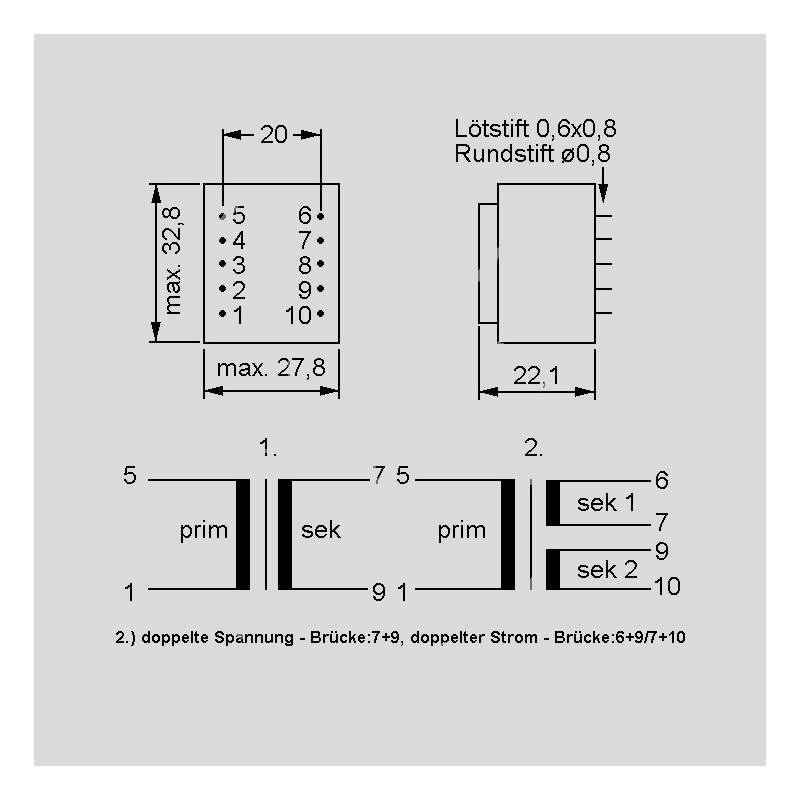

Connection schema 1
Secondary current [mA] 144
Secondary voltage [V] 1x9
Open circuit voltage [V] 1x15,7
Data Sheet

Unit price

7,09 €

Stock: 150
Further delivery:
CW 51/2024

Minimum order quantity 5 units or
multiples of 5.
