BV EI 307 8009

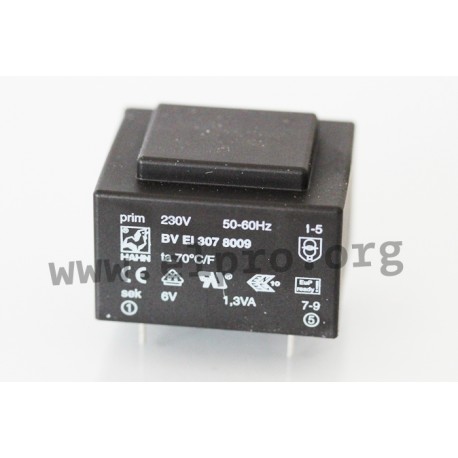

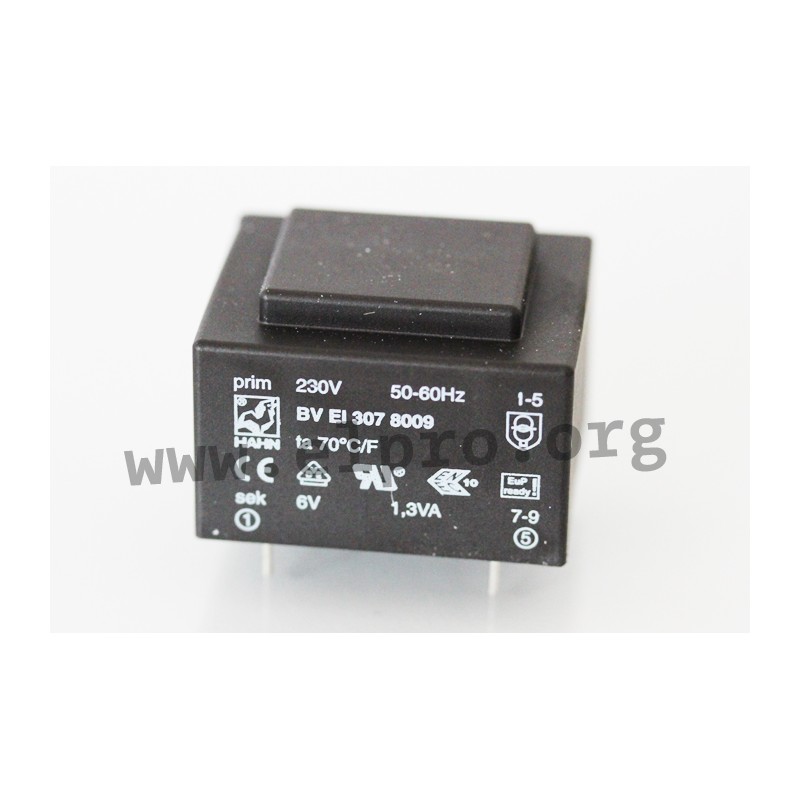

print transformators 1.3VA by Hahn

• power, max. (Ta 70/F): 1.3VA
• case: EI30
• by Hahn
• open circuit dissipation loss less 0.4W
• short-circuit proof
• winding of double coated copper wire for better insulation, vacuum casted, two chambers
• connections for PCB use
• self-extinguishing material


• compact size
• temperature resistance class°): Ta 70/F
• primary voltage, max. (50/60Hz): 230V AC
• max. permissible temperature in case of short-circuit, DIN EN 61558: 210°C
• max. end temperature isolation class F, DIN EN 61558: 140°C

°) The maximum permissible continuous ambient temperature applies in the event of short-circuit

BV EI 307 8009

BV EI 307 8009

38897 BV EI 307 8009 BVEI3078009 BVEI3078009 print transformators 1.3VA by Hahn. • power, max. (Ta 70/F): 1.3VA• case: EI30• by Hahn• open circuit dissipation loss less 0.4W• short-circuit proof• winding of double coated copper wire for better insulation, vacuum casted, two chambers• connections for PCB use• self-extinguishing material • compact size• temperature resistance class°): Ta 70/F• primary voltage, max. (50/60Hz): 230V AC• max. permissible temperature in case of short-circuit, DIN EN 61558: 210°C• max. end temperature isolation class F, DIN EN 61558: 140°C°) The maximum permissible continuous ambient temperature applies in the event of short-circuit

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name BVEI3078009

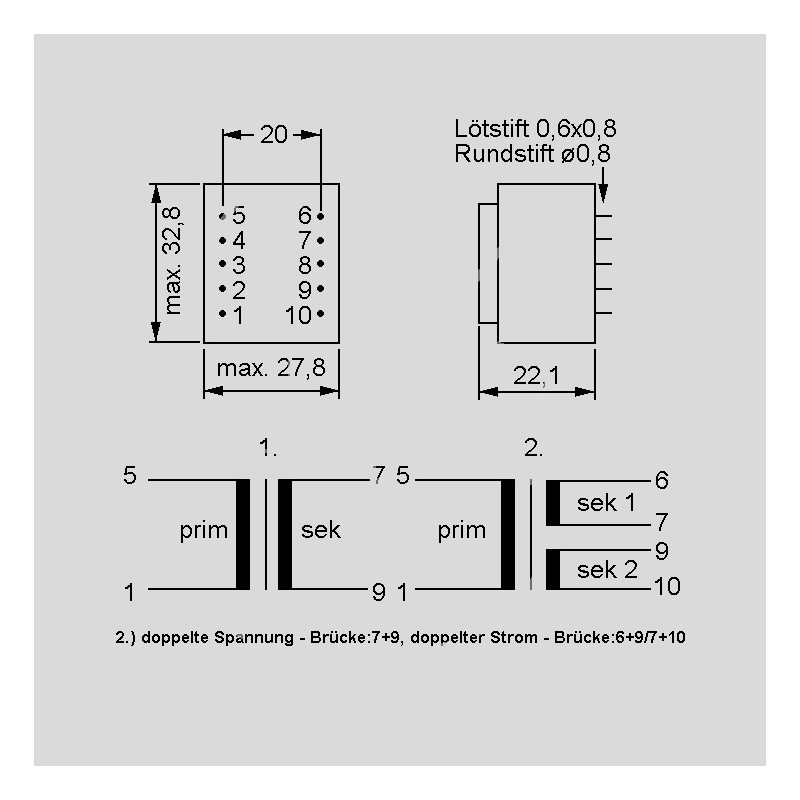

Connection schema 1
Secondary current [mA] 217
Secondary voltage [V] 1x6
Open circuit voltage [V] 1x10,7
Data Sheet

Unit price

7,39 €

Stock: 1
