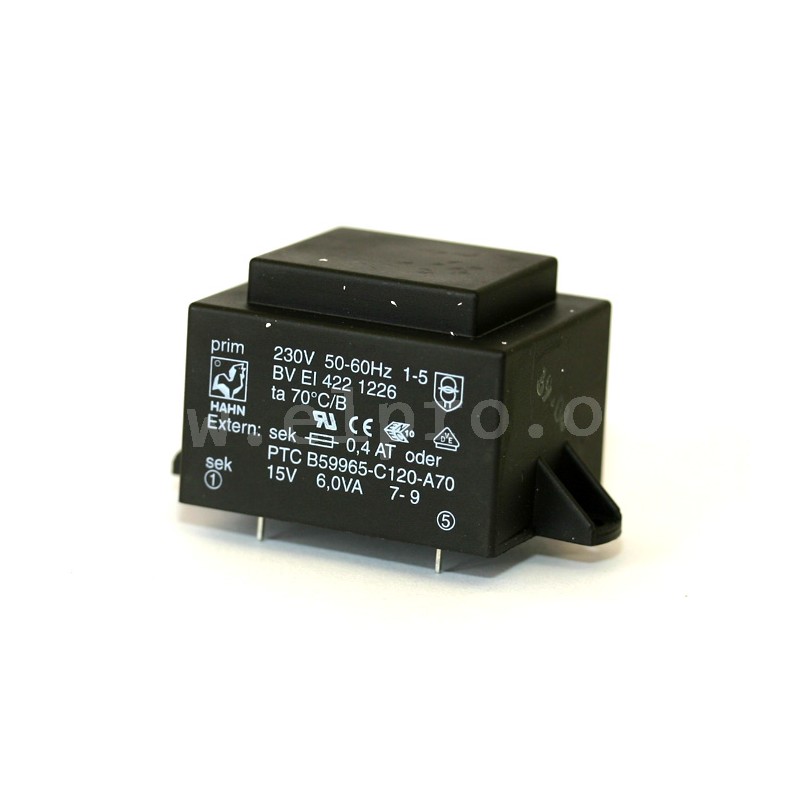

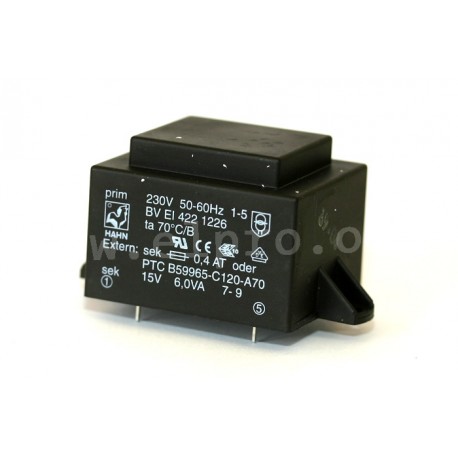

BV EI 422 1226

Hahn PCB transformers

Transformers with 6VA and an EI42 core. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 70/B and are vacuum casted. We offer the following types of this Hahn series: BV EI 422 1222, BV EI 422 1224, BV EI 422 1226, BV EI 422 1223, BV EI 422 1225, BV EI 422 1227 and BV EI 422 1285.

  • core: EI 42
  • output: 6VA
  • input voltage: 230V AC
  • temperature class: Ta 70/B
  • maximal end temperature: 120°C
  • permissible overtemperature: 50K
  • test voltage: 4kV
BV EI 422 1226

BV EI 422 1226

29220 BV EI 422 1226 BVEI4221226 BVEI4221226 Hahn PCB transformers. Transformers with 6VA and an EI42 core. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 70/B and are vacuum casted. We offer the following types of this Hahn series: BV EI 422 1222, BV EI 422 1224, BV EI 422 1226, BV EI 422 1223, BV EI 422 1225, BV EI 422 1227 and BV EI 422 1285. core: EI 42 output: 6VA input voltage: 230V AC temperature class: Ta 70/B maximal end temperature: 120°C permissible overtemperature: 50K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI4221226
Secondary voltage [V] 15
Secondary current [A] 0,4
Data Sheet

Unit price

5,39 €

Stock: 39
Further delivery:
CW 51/2024
