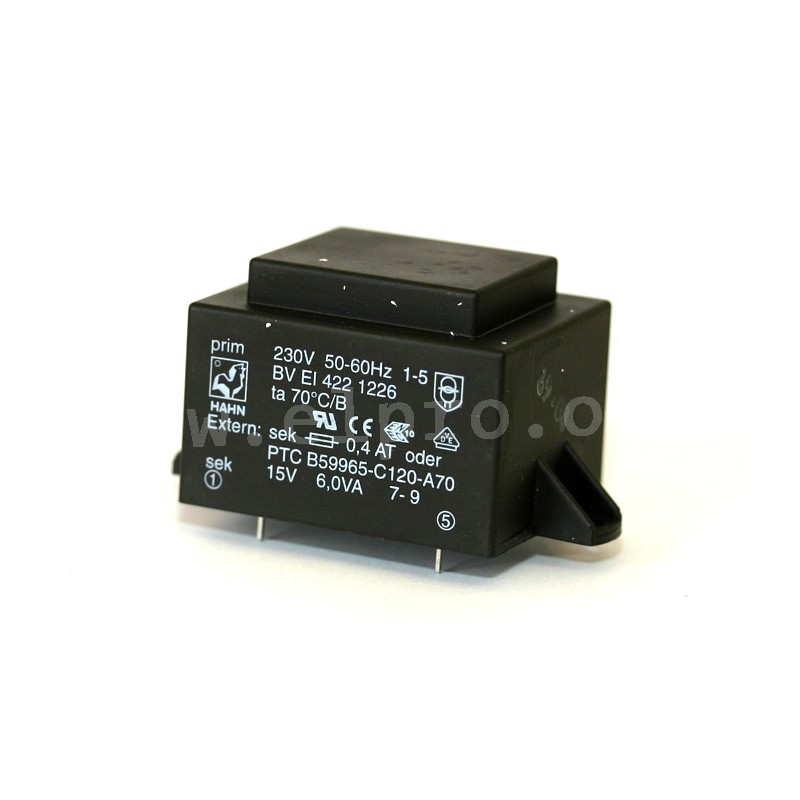

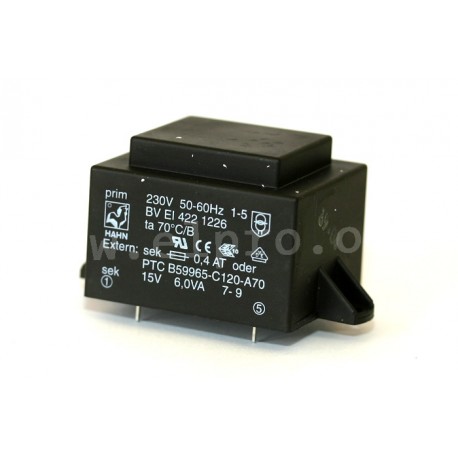

BV EI 422 1222

Hahn PCB transformers

Transformers with 6VA and an EI42 core. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 70/B and are vacuum casted. We offer the following types of this Hahn series: BV EI 422 1222, BV EI 422 1224, BV EI 422 1226, BV EI 422 1223, BV EI 422 1225, BV EI 422 1227 and BV EI 422 1285.

  • core: EI 42
  • output: 6VA
  • input voltage: 230V AC
  • temperature class: Ta 70/B
  • maximal end temperature: 120°C
  • permissible overtemperature: 50K
  • test voltage: 4kV
BV EI 422_

BV EI 422 1222

29218 BV EI 422 1222 BVEI4221222 BVEI4221222 Hahn PCB transformers. Transformers with 6VA and an EI42 core. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 70/B and are vacuum casted. We offer the following types of this Hahn series: BV EI 422 1222, BV EI 422 1224, BV EI 422 1226, BV EI 422 1223, BV EI 422 1225, BV EI 422 1227 and BV EI 422 1285. core: EI 42 output: 6VA input voltage: 230V AC temperature class: Ta 70/B maximal end temperature: 120°C permissible overtemperature: 50K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI4221222
Secondary voltage [V] 9
Secondary current [A] 0,667
Data Sheet

Unit price

5,39 €

Stock: 276
Further delivery:
CW 03/2025
