BV EI 382 1190

Hahn PCB transformers

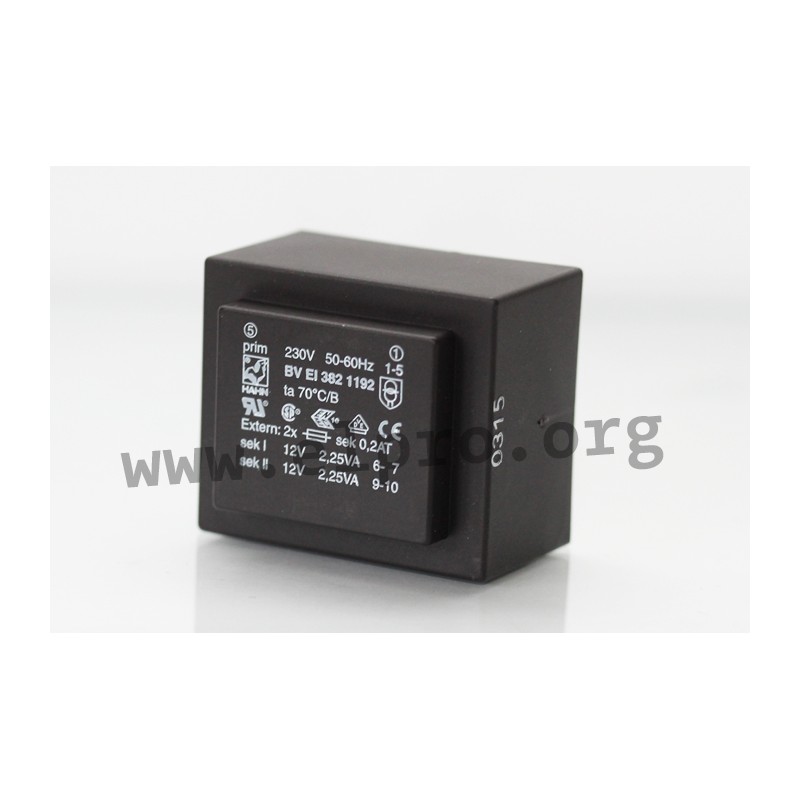

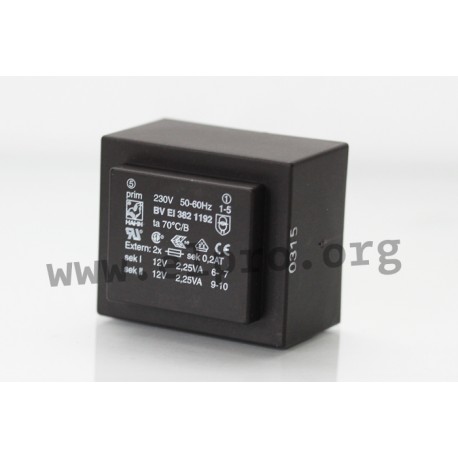

Transformers with 4,5VA and an EI38 core. These devices are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 70/B and are vacuum casted. We offer the following types of this Hahn series: BV EI 382 1189, BV EI 382 1191, BV EI 382 1193, BV EI 382 1195, BV EI 382 1190, BV EI 382 1192 and BV EI 382 1194.

  • core: EI 38
  • output: 4,5VA
  • input voltage: 230V AC (50/60Hz)
  • maximal end temperature: 120°C
  • permissible overteperature: 50K
  • test voltage: 4kV
BV EI 382_

BV EI 382 1190

29216 BV EI 382 1190 BVEI3821190 BVEI3821190 Hahn PCB transformers. Transformers with 4,5VA and an EI38 core. These devices are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 70/B and are vacuum casted. We offer the following types of this Hahn series: BV EI 382 1189, BV EI 382 1191, BV EI 382 1193, BV EI 382 1195, BV EI 382 1190, BV EI 382 1192 and BV EI 382 1194. core: EI 38 output: 4,5VA input voltage: 230V AC (50/60Hz) maximal end temperature: 120°C permissible overteperature: 50K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI3821190
Secondary voltage [V] 2x9
Secondary current [A] 2x0,25
Data Sheet

Unit price

4,09 €

Stock: 410
Further delivery:
CW 03/2025
