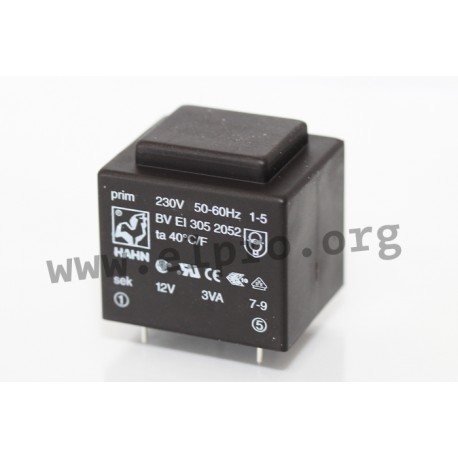

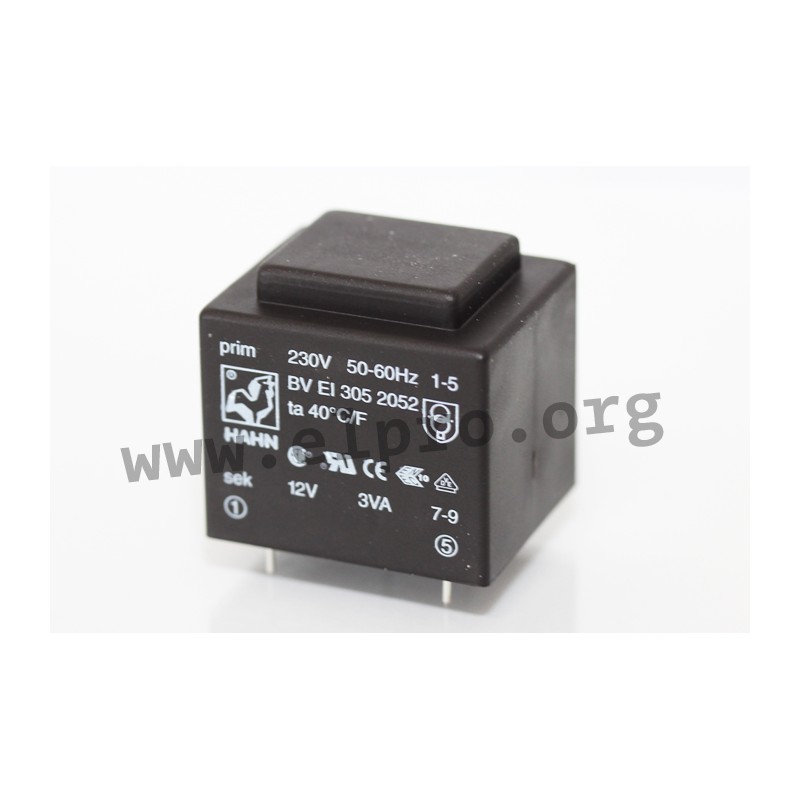

BV EI 305 2056

Hahn PCB transformers

Transformers with 3VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 40/F and are vacuum casted. We offer various types of this Hahn series.

  • core: EI30
  • output: 3VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 40/F
  • maximal end temperature (short circuit): 190°C
  • maximal end temperature: 140°C
  • permissible overtemperature: 100K
  • test voltage: 4kV
BV EI 305 205_

BV EI 305 2056

29191 BV EI 305 2056 BVEI3052056 BVEI3052056 Hahn PCB transformers. Transformers with 3VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 40/F and are vacuum casted. We offer various types of this Hahn series. core: EI30 output: 3VA input voltage: 230V AC (50/60Hz) temperature class: Ta 40/F maximal end temperature (short circuit): 190°C maximal end temperature: 140°C permissible overtemperature: 100K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI3052056
Secondary voltage [V] 2x9
Secondary current [A] 2x0,167
Data Sheet

Unit price

2,89 €

Stock: 225
Further delivery:
CW 50/2024

Minimum order quantity 5 units or
multiples of 5.
