BV EI 305 2059

Hahn PCB transformers

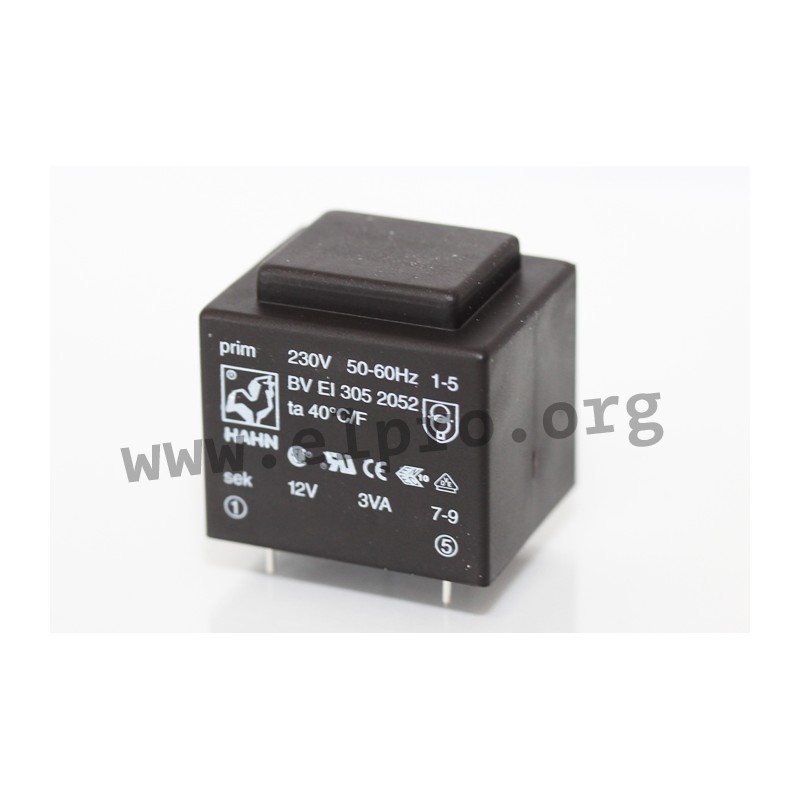

Transformers with 3VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 40/F and are vacuum casted. We offer various types of this Hahn series.

  • core: EI30
  • output: 3VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 40/F
  • maximal end temperature (short circuit): 190°C
  • maximal end temperature: 140°C
  • permissible overtemperature: 100K
  • test voltage: 4kV

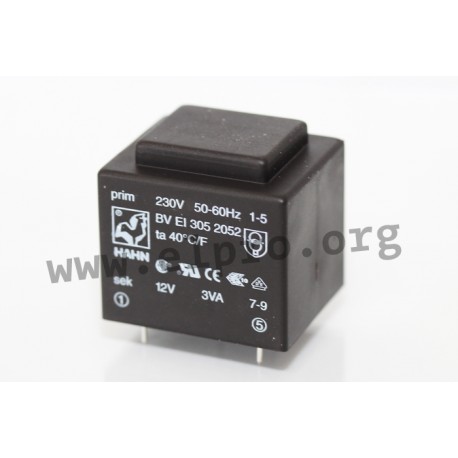

BV EI 305 205_

BV EI 305 2059

29188 BV EI 305 2059 BVEI3052059 BVEI3052059 Hahn PCB transformers. Transformers with 3VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 40/F and are vacuum casted. We offer various types of this Hahn series. core: EI30 output: 3VA input voltage: 230V AC (50/60Hz) temperature class: Ta 40/F maximal end temperature (short circuit): 190°C maximal end temperature: 140°C permissible overtemperature: 100K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI3052059
Secondary voltage [V] 2x18
Secondary current [A] 2x0,083
Data Sheet

Unit price

2,89 €

Stock: 158
Further delivery:
CW 50/2024

Minimum order quantity 1 to 3 units or multiples of 5 plus 0 to 3 .
