BV EI 306 8017

Hahn PCB transformers

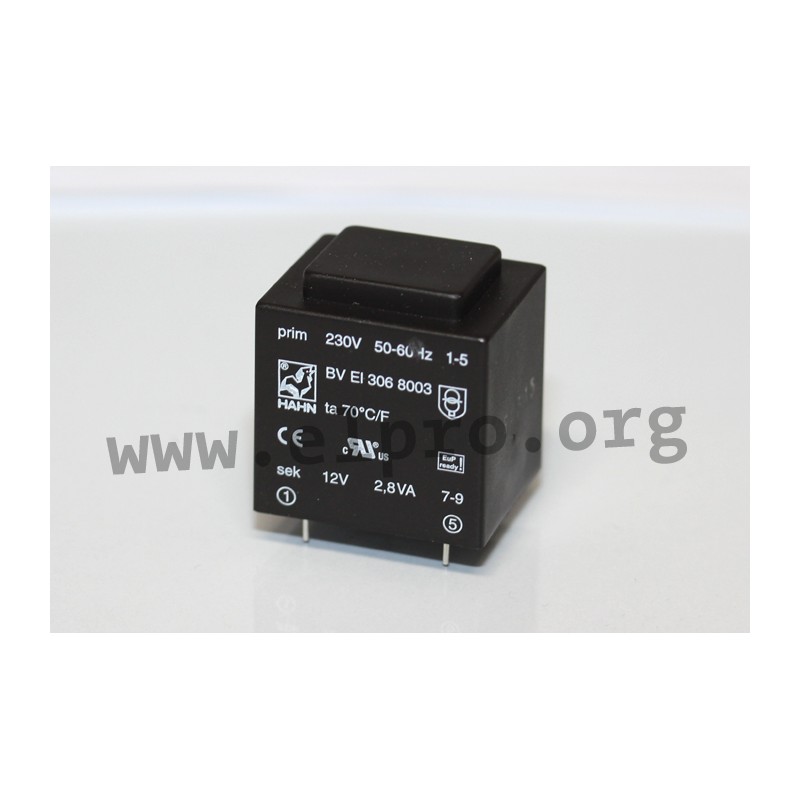

Transformers with 2,8VA and an EI30 core. These devices have a low no-load power loss (<0,4W) and comply with temperature resistance class Ta 70/F. They are short circuit proof and suitable for PCB mounting. We offer the following types of this Hahn series: BV EI 306 8016, BV EI 306 8017 and BV EI 306 8003.

  • core: EI 30
  • output: 2,8VA
  • no-load power loss: <0,4W
  • input voltage: 230V AC (50/60Hz)
  • maximal end temperature (short circuit): 210°C
  • maximal end temperature: 140°C

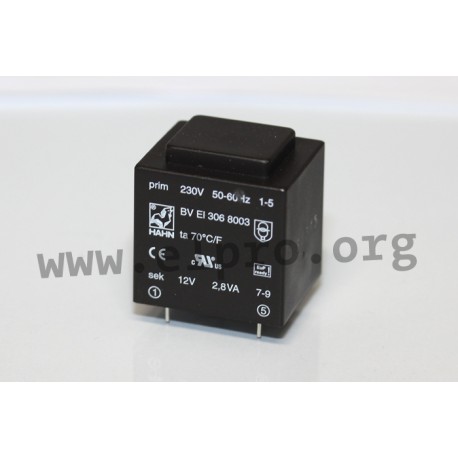

BV EI 306_

BV EI 306 8017

38915 BV EI 306 8017 BVEI3068017 BVEI3068017 Hahn&nbsp;PCB transformers. Transformers with 2,8VA and an EI30 core. These devices have a low no-load power loss (&lt;0,4W) and comply with temperature resistance class Ta 70/F. They are short circuit proof&nbsp;and suitable for PCB mounting. We offer the following types of this Hahn series:&nbsp;BV EI 306 8016, BV EI 306 8017 and BV EI 306 8003. core: EI 30 output: 2,8VA no-load power loss: &lt;0,4W input voltage: 230V AC (50/60Hz) maximal end temperature (short circuit): 210&deg;C maximal end temperature: 140&deg;C

Specifications

manufacturer
Manufacturer's name BVEI3068017
Connection schema 1
Secondary current [mA] 311
Secondary voltage [V] 1x9
Open circuit voltage [V] 1x16,1
Data Sheet

Unit price

8,49 €

Stock: 0
Further delivery:
CW 50/2024

Minimum order quantity 50 units or
multiples of 50.
