BV EI 304 2048

Hahn PCB transformers

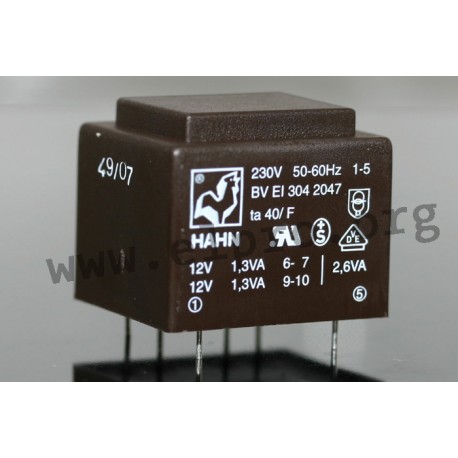

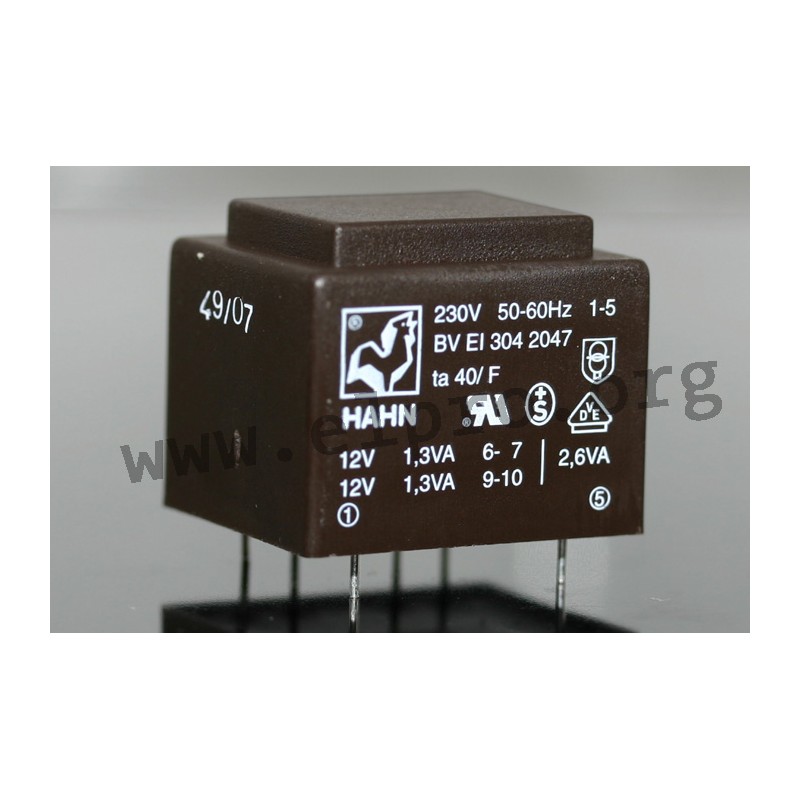

Transformers with 2,6VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 40/F. They are suitable for PCB mounting and vacuum casted. We offer the following types of this Hahn series: BV EI 304 2041, BV EI 304 2042, BV EI 304 2043, BV EI 304 2045, BV EI 304 2046, BV EI 304 2047, BV EI 304 2048 and BV EI 304 2524.

  • core: EI 30
  • output: 2,6VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 40/F
  • maximal end temperature (short circuit): 190°C
  • maximal end temperature: 140°C
  • permissible overtemperature: 100K
  • test voltage: 4kV
BV EI 304_

BV EI 304 2048

29185 BV EI 304 2048 BVEI3042048 BVEI3042048 Hahn PCB transformers. Transformers with 2,6VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 40/F. They are suitable for PCB mounting and vacuum casted. We offer the following types of this Hahn series: BV EI 304 2041, BV EI 304 2042, BV EI 304 2043, BV EI 304 2045, BV EI 304 2046, BV EI 304 2047, BV EI 304 2048 and BV EI 304 2524. core: EI 30 output: 2,6VA input voltage: 230V AC (50/60Hz) temperature class: Ta 40/F maximal end temperature (short circuit): 190°C maximal end temperature: 140°C permissible overtemperature: 100K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI3042048
Secondary voltage [V] 2x15
Secondary current [A] 2x0,087
Data Sheet

Unit price

2,89 €

Stock: 342
Further delivery:
CW 50/2024

Minimum order quantity 1 to 2 units or multiples of 5 plus 0 to 2 .
