BV EI 304 8024

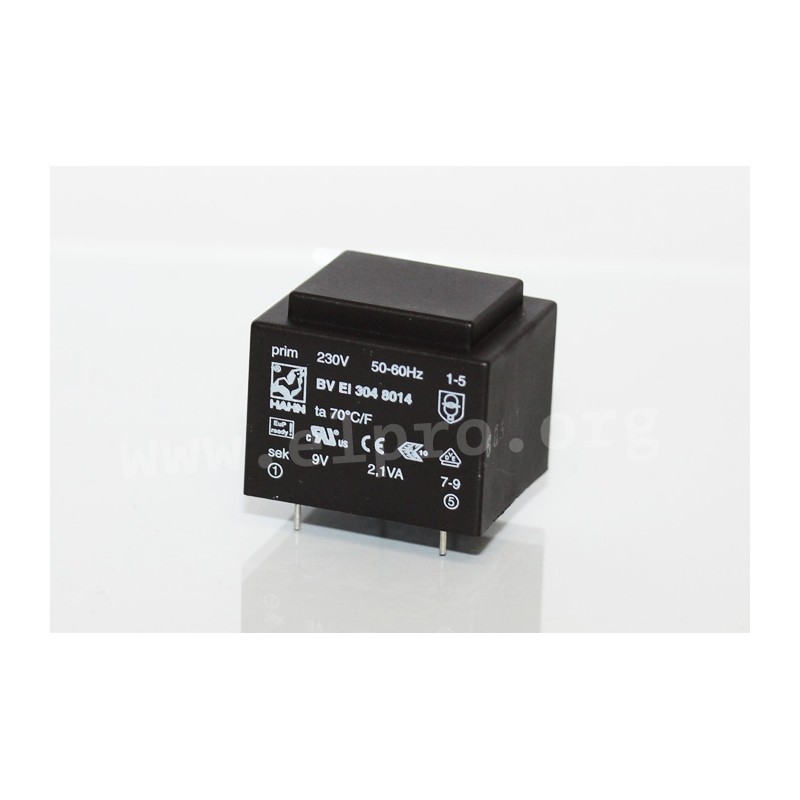

print transformators 2.1VA by Hahn

• power, max. (Ta 70/F): 2.1VA
• core: EI30
• by Hahn
• short-circuit proof
• open circuit dissipation loss less 0.4W
• winding of double coated copper wire for better insulation, vacuum casted, two chambers
• connections for PCB use
• self-extinguishing material


• compact size
• temperature resistance class°): Ta 70/F
• primary voltage, max. (50/60Hz): 230V AC
• max. permissible temperature in case of short-circuit, DIN EN 61558: 210°C
• max. end temperature isolation class F, DIN EN 61558: 140°C

°) The maximum permissible continuous ambient temperature applies in the event of short-circuit

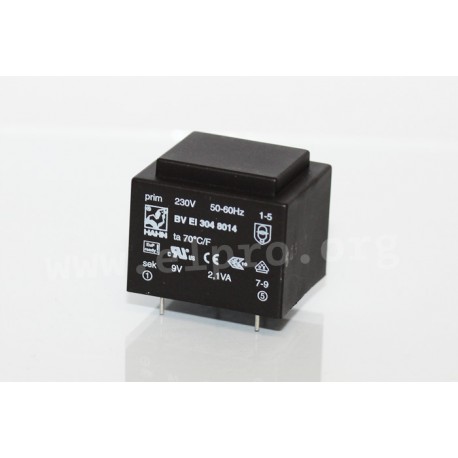

BV EI 304_

BV EI 304 8024

38908 BV EI 304 8024 BVEI3048024 BVEI3048024 print transformators 2.1VA by Hahn. • power, max. (Ta 70/F): 2.1VA• core: EI30• by Hahn• short-circuit proof• open circuit dissipation loss less 0.4W• winding of double coated copper wire for better insulation, vacuum casted, two chambers• connections for PCB use• self-extinguishing material • compact size• temperature resistance class°): Ta 70/F• primary voltage, max. (50/60Hz): 230V AC• max. permissible temperature in case of short-circuit, DIN EN 61558: 210°C• max. end temperature isolation class F, DIN EN 61558: 140°C°) The maximum permissible continuous ambient temperature applies in the event of short-circuit

Specifications

manufacturer
Manufacturer's name BVEI3048024

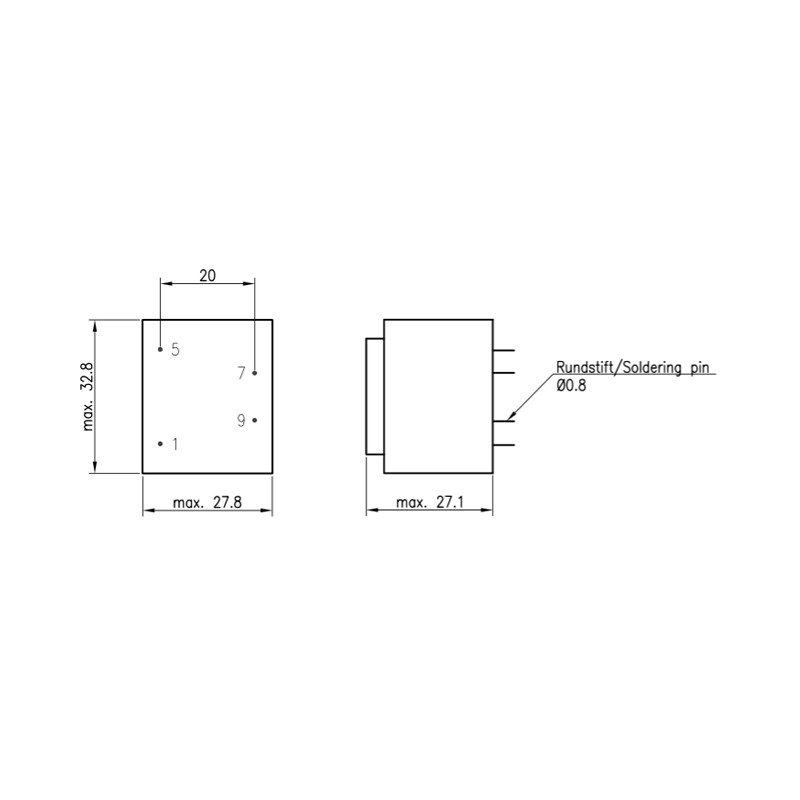

Connection schema 1
Secondary current [mA] 280
Height [mm] 27,1
Secondary voltage [V] 1x7,5
Open circuit voltage [V] 1y13,9
Data Sheet

Unit price

7,69 €

Stock: 0
Further delivery:
CW 51/2024

Minimum order quantity 50 units or
multiples of 50.
