BV EI 303 2037

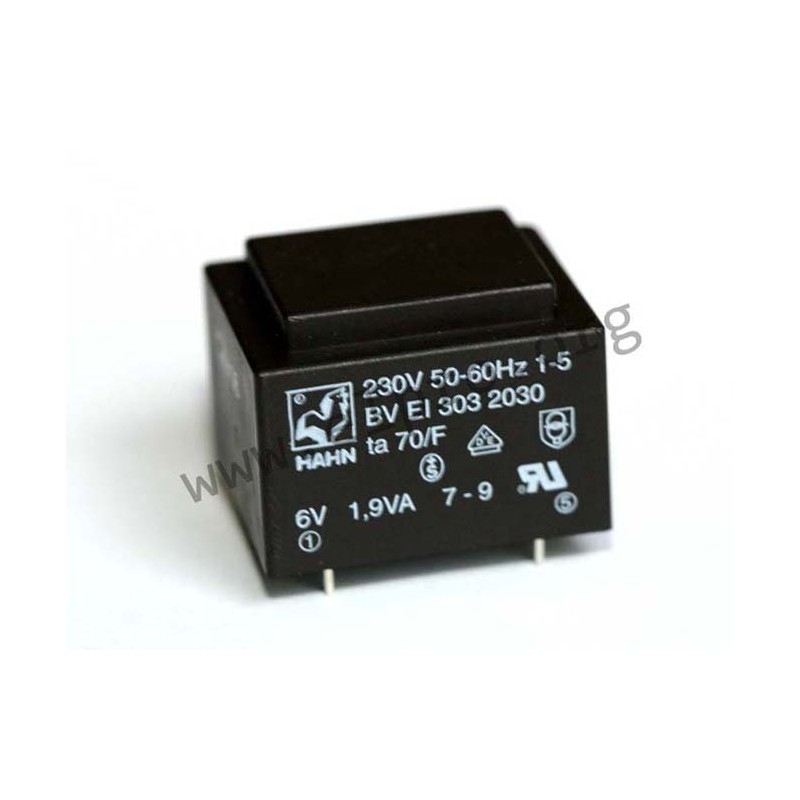

print transformers 1.9VA by Hahn

• power, max. (Ta 70/F): 1.9VA
• core: EI30
• by Hahn
• short-circuit proof
• winding of double coated copper wire for better insulation, vacuum casted, two chambers
• connections for PCB


• temperature resistance class: Ta 70/F
• end temperatur in case of short-circuit, max.: 190°C
• end temperatur in standard use: 140°C
• permissable overtemperature: 70K
• primary voltage (50/60Hz): 230V AC
• test voltage: 4kV/50Hz
• no-load voltage (acc. to VDE 0570): <2x UN sek

BV EI 303_

BV EI 303 2037

29178 BV EI 303 2037 BVEI3032037 BVEI3032037 print transformers 1.9VA by Hahn. • power, max. (Ta 70/F): 1.9VA• core: EI30• by Hahn• short-circuit proof• winding of double coated copper wire for better insulation, vacuum casted, two chambers• connections for PCB • temperature resistance class: Ta 70/F• end temperatur in case of short-circuit, max.: 190°C• end temperatur in standard use: 140°C• permissable overtemperature: 70K• primary voltage (50/60Hz): 230V AC• test voltage: 4kV/50Hz• no-load voltage (acc. to VDE 0570): &lt;2x UN sek

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name BVEI3032037
Secondary voltage [V] 2x12
Secondary current [A] 2x0,079
Data Sheet

Unit price

7,49 €

Stock: 1
