BV EI 303 2038

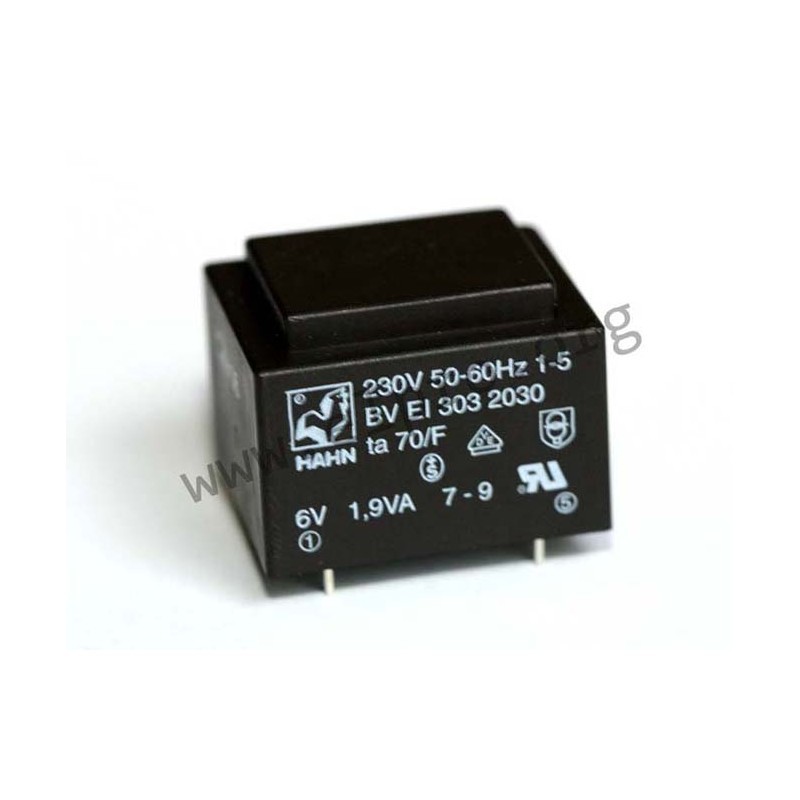

Hahn PCB transformers

Transformers with 1,9VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/F and are vacuum casted. We offer the following types of this Hahn series: BV EI 303 2030, BV EI 3030 2031, BV EI 303 2032, BV EI 303 2033, BV EI 303 2034, BV EI 303 2035, BV EI 303 2036, BV EI 303 2038 and BV EI 303 2039.

  • core: EI 30
  • output: 1,9VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/F
  • maximal end temperature (short circuit): 190°C
  • maximal end temperature: 140°C
  • permissible overtemperature: 70K
  • test voltage: 4kV
BV EI 303_

BV EI 303 2038

29177 BV EI 303 2038 BVEI3032038 BVEI3032038 Hahn PCB transformers. Transformers with 1,9VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/F and are vacuum casted. We offer the following types of this Hahn series: BV EI 303 2030, BV EI 3030 2031, BV EI 303 2032, BV EI 303 2033, BV EI 303 2034, BV EI 303 2035, BV EI 303 2036, BV EI 303 2038 and BV EI 303 2039. core: EI 30 output: 1,9VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/F maximal end temperature (short circuit): 190°C maximal end temperature: 140°C permissible overtemperature: 70K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI3032038
Secondary voltage [V] 2x15
Secondary current [A] 2x0,063
Data Sheet

Unit price

2,79 €

Stock: 285
Further delivery:
CW 03/2025

Minimum order quantity 5 units or
multiples of 5.
