> Passive elements>Transformers>PCB transformers>Hahn PCB transformers, 1,5VA, EI 30>BV EI 302 2024

Manufacturers

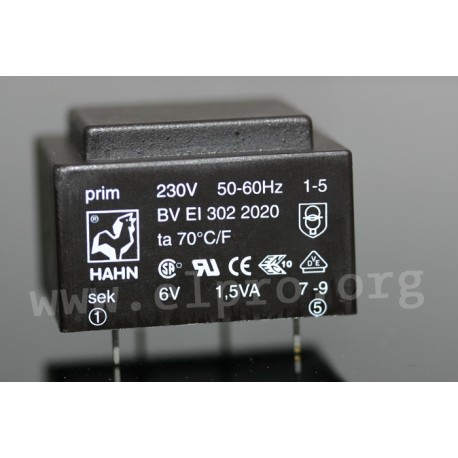

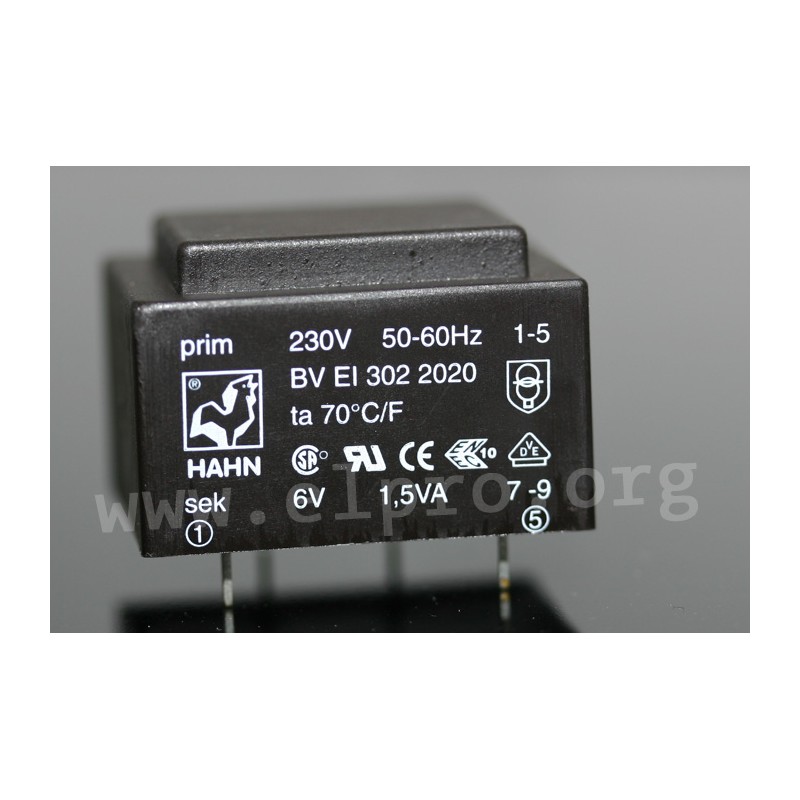

BV EI 302 2024

Hahn PCB transformers

Transformers in a vacuum casted housing with 1,5VA and an EI 30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/F. They are suitable for PCB mounting. We offer the following types of this Hahn series: BV EI 302 2020, BV EI 302 2021, BV EI 302 2022, BV EI 302 2023, BV EI 302 2024, BV EI 302 2989, BV EI 302 2025, BV EI 302 2026, BV EI 302 2027, BV EI 302 2028, BV EI 303 2834 and BV EI 303 2875.

  • core: EI 30
  • output: 1,5VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/F
  • maximal end temperature (short circuit): 190°C
  • maximal end temperature: 140°C
  • permissible overtemperature: 70K
  • test voltage: 4kV
BV EI 302

BV EI 302 2024

111644 BV EI 302 2024 BVEI3022024 BVEI3022024 Hahn PCB transformers . Transformers in a vacuum casted housing with 1,5VA and an EI 30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/F. They are suitable for PCB mounting. We offer the following types of this Hahn series: BV EI 302 2020, BV EI 302 2021, BV EI 302 2022, BV EI 302 2023, BV EI 302 2024, BV EI 302 2989, BV EI 302 2025, BV EI 302 2026, BV EI 302 2027, BV EI 302 2028, BV EI 303 2834 and BV EI 303 2875. core: EI 30 output: 1,5VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/F maximal end temperature (short circuit): 190°C maximal end temperature: 140°C permissible overtemperature: 70K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI3022024
Secondary voltage [V] 18
Secondary current [A] 0,083
Data Sheet

Unit price

2,39 €

Stock: 40
Further delivery:
CW 04/2025

Minimum order quantity 5 units or
multiples of 5.
