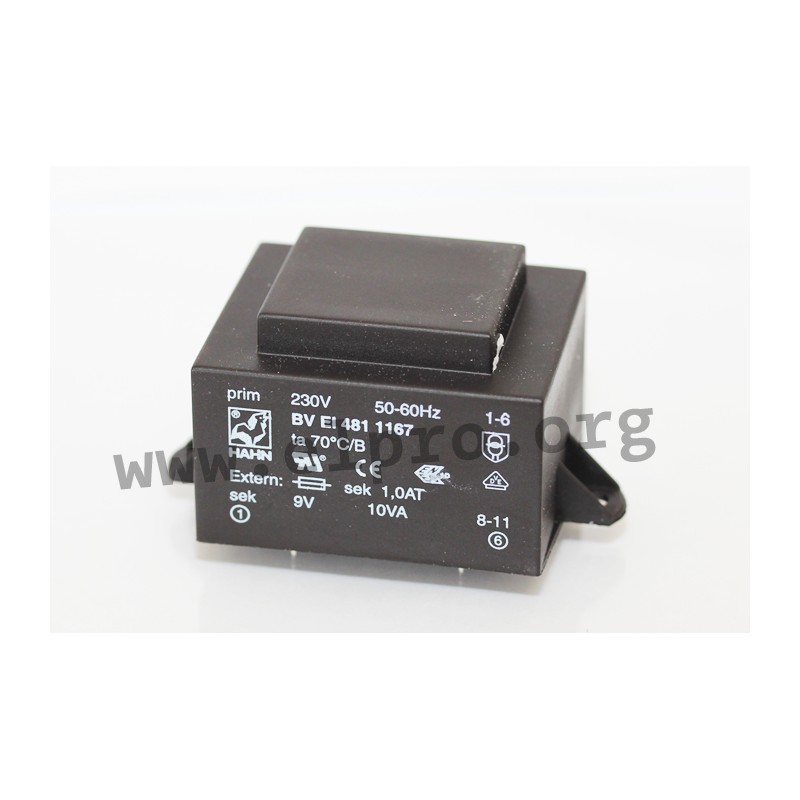

BV EI 481 1120

Hahn PCB transformers

Transformers with an EI48 core an 10VA. These components comply with temperature resistance class Ta 70/B and are not short circuit proof. They are suitable for PCB mounting and are vacuum casted. We offer the following types of this Hahn series: BV EI 481 1167, BV EI 481 1172, BV EI 481 1184, BV EI 481 1185, BV EI 481 1118, BV EI 481 1119, BV EI 481 1120 and BV EI 481 1307.

  • core: EI48
  • output: 10VA
  • input voltage: 230V AC
  • temperature class: Ta 70/B
  • maximal end temperature: 120°C
  • permissible overtemperature: 50K
  • test voltage: 4kV
BV EI 481

BV EI 481 1120

29233 BV EI 481 1120 BVEI4811120 BVEI4811120 Hahn PCB transformers. Transformers with an EI48 core an 10VA. These components comply with temperature resistance class Ta 70/B and are not short circuit proof. They are suitable for PCB mounting and are vacuum casted. We offer the following types of this Hahn series: BV EI 481 1167, BV EI 481 1172, BV EI 481 1184, BV EI 481 1185, BV EI 481 1118, BV EI 481 1119, BV EI 481 1120 and BV EI 481 1307. core: EI48 output: 10VA input voltage: 230V AC temperature class: Ta 70/B maximal end temperature: 120°C permissible overtemperature: 50K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI4811120
Secondary voltage [V] 2x15
Secondary current [A] 2x0,333
Data Sheet

Unit price

6,49 €

Stock: 0
Further delivery:
CW 51/2024
