BV EI 301 3005

Hahn PCB transformers

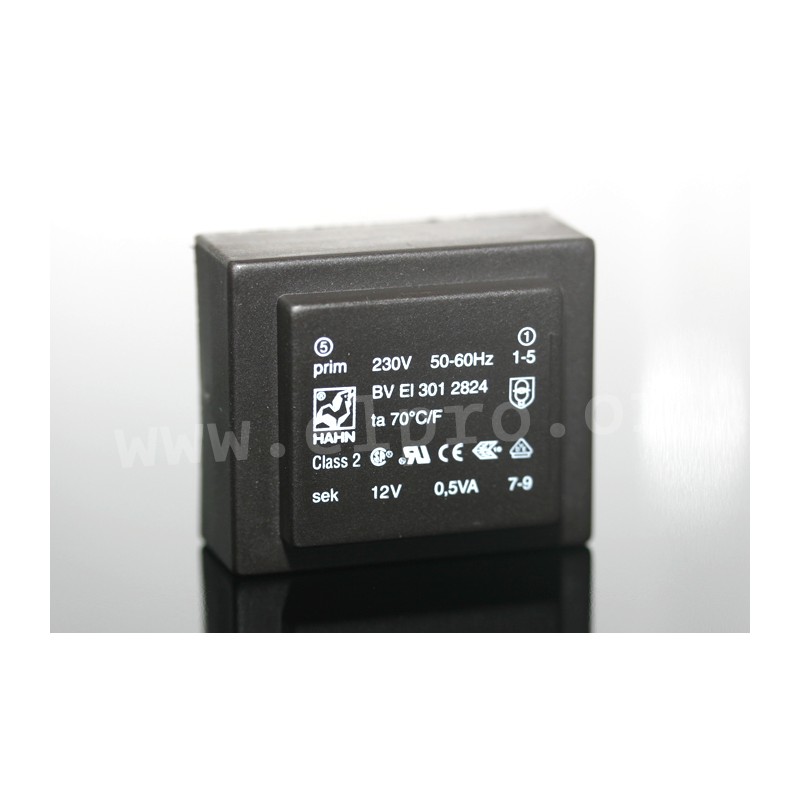

Transformers with an EI30 core and 0,5VA. These devices are suitable for PCB mounting and are short circuit proof. They have a two chamber winding (vacuum casted) and comply with temperature resistance class Ta 70/F. We offer the following types of this Hahn series: BV EI 301 3005, BV EI 301 2911, BV EI 301 2824 and BV EI 301 2967.

  • core: EI30
  • output: 0,5VA
  • input voltage: 230V AC
  • temperature class: Ta 70/F
  • maximal end temperature (short circuit): 190°C
  • maximal end temperature: 140°C
  • permissible overtemperature: 70K

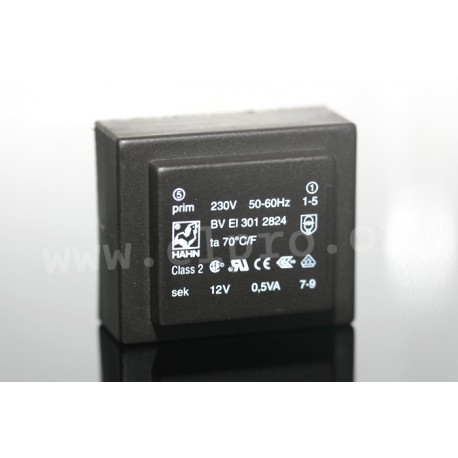

BV EI 301_

BV EI 301 3005

29164 BV EI 301 3005 BVEI3013005 BVEI3013005 Hahn PCB transformers. Transformers with an EI30 core and 0,5VA. These devices are suitable for PCB mounting and are short circuit proof. They have a two chamber winding (vacuum casted) and comply with temperature resistance class Ta 70/F. We offer the following types of this Hahn series: BV EI 301 3005, BV EI 301 2911, BV EI 301 2824 and BV EI 301 2967. core: EI30 output: 0,5VA input voltage: 230V AC temperature class: Ta 70/F maximal end temperature (short circuit): 190°C maximal end temperature: 140°C permissible overtemperature: 70K

Specifications

manufacturer
Manufacturer's name BVEI3013005
Secondary voltage [V] 6
Secondary current [A] 0,083
Data Sheet

Unit price

2,39 €

Stock: 317
Further delivery:
CW 50/2024

Minimum order quantity 1 to 2 units or multiples of 5 plus 0 to 2 .
