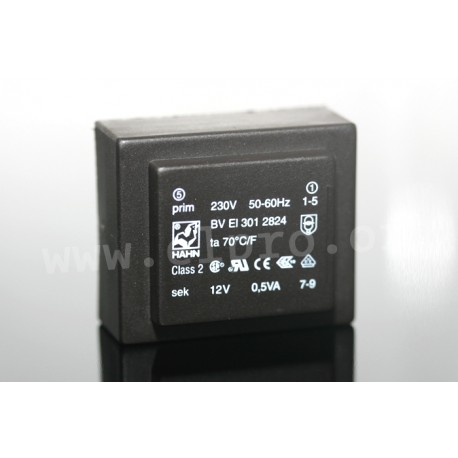

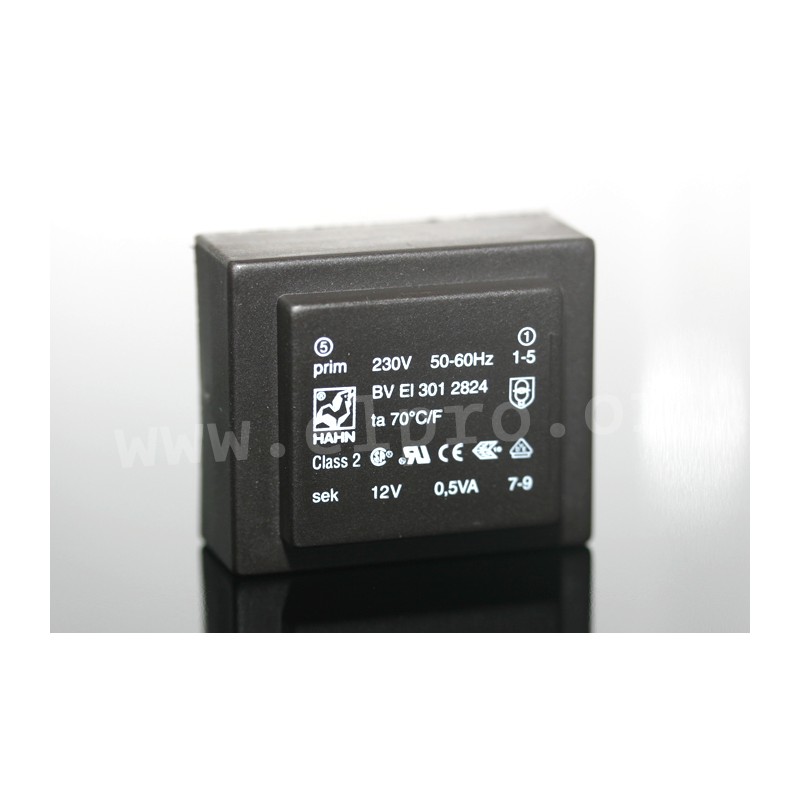

BV EI 301 2824

Hahn PCB transformers

Transformers with an EI30 core and 0,5VA. These devices are suitable for PCB mounting and are short circuit proof. They have a two chamber winding (vacuum casted) and comply with temperature resistance class Ta 70/F. We offer the following types of this Hahn series: BV EI 301 3005, BV EI 301 2911, BV EI 301 2824 and BV EI 301 2967.

  • core: EI30
  • output: 0,5VA
  • input voltage: 230V AC
  • temperature class: Ta 70/F
  • maximal end temperature (short circuit): 190°C
  • maximal end temperature: 140°C
  • permissible overtemperature: 70K
Hahn BV EI 30_ series

BV EI 301 2824

29163 BV EI 301 2824 BVEI3012824 BVEI3012824 Hahn PCB transformers. Transformers with an EI30 core and 0,5VA. These devices are suitable for PCB mounting and are short circuit proof. They have a two chamber winding (vacuum casted) and comply with temperature resistance class Ta 70/F. We offer the following types of this Hahn series: BV EI 301 3005, BV EI 301 2911, BV EI 301 2824 and BV EI 301 2967. core: EI30 output: 0,5VA input voltage: 230V AC temperature class: Ta 70/F maximal end temperature (short circuit): 190°C maximal end temperature: 140°C permissible overtemperature: 70K

Specifications

manufacturer
Manufacturer's name BVEI3012824
Secondary voltage [V] 12
Secondary current [A] 0,042
Data Sheet

Unit price

2,39 €

Stock: 100
Further delivery:
CW 03/2025

Minimum order quantity 5 units or
multiples of 5.
