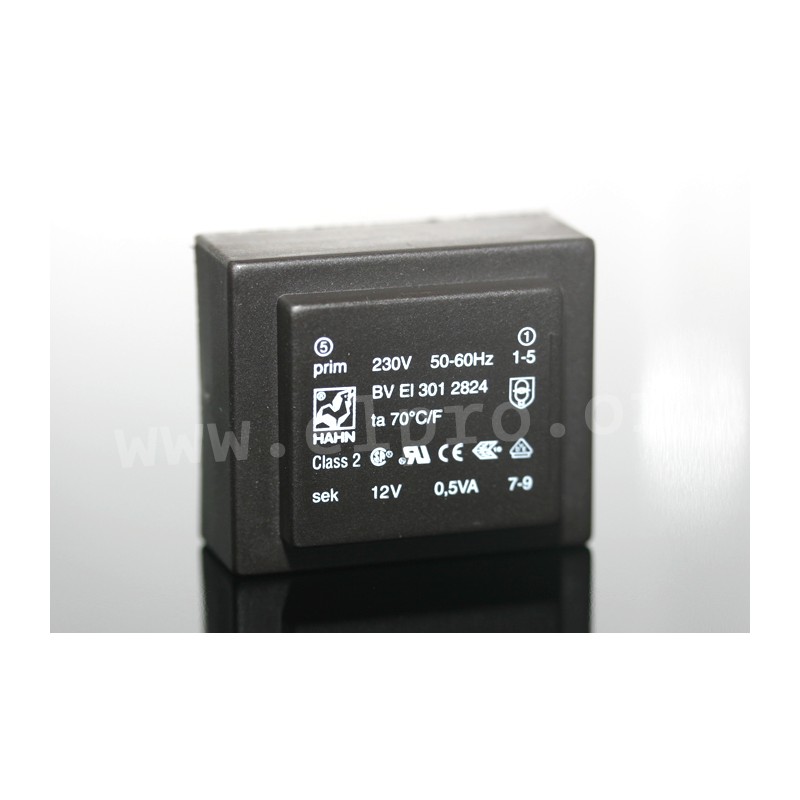

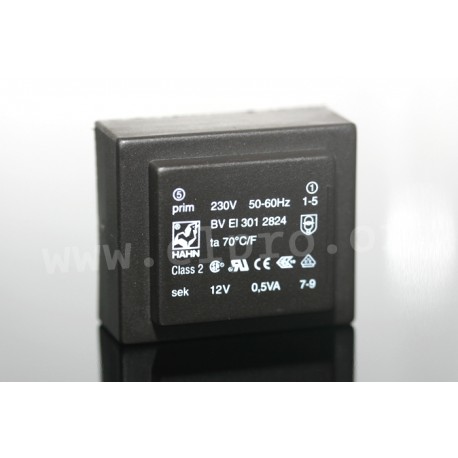

BV EI 301 2720

print transformators 0.5 VA by Hahn

• power, max. (Ta 70/F): 0.5VA
• core: EI30
• by Hahn
• short-circuit proof
• winding of double coated copper wire for better insulation, vacuum casted, two chambers

• connections for PCB use
• temperature resistance class: Ta 70/F
• end temperatur in case of short-circuit, max.: 190°C
• end temperatur in standard use: 140°C
• permissible overtemperature: 70K
• primary voltage (50/60 Hz): 230V AC
• test voltage: 4kV/50Hz
• no-load voltage (acc. to VDE 0570): <2x UN sek

BV EI 301

BV EI 301 2720

111641 BV EI 301 2720 BVEI3012720 BVEI3012720 print transformators 0.5 VA by Hahn. • power, max. (Ta 70/F): 0.5VA• core: EI30• by Hahn• short-circuit proof• winding of double coated copper wire for better insulation, vacuum casted, two chambers • connections for PCB use• temperature resistance class: Ta 70/F• end temperatur in case of short-circuit, max.: 190°C• end temperatur in standard use: 140°C• permissible overtemperature: 70K• primary voltage (50/60 Hz): 230V AC• test voltage: 4kV/50Hz• no-load voltage (acc. to VDE 0570): &lt;2x UN sek

Specifications

manufacturer
Manufacturer's name BVEI3012720
Secondary voltage [V] 12
Secondary current [A] 0,05
Data Sheet

Unit price

4,99 €

Stock: 0
Further delivery:
CW 51/2024

Minimum order quantity 50 units or
multiples of 50.
