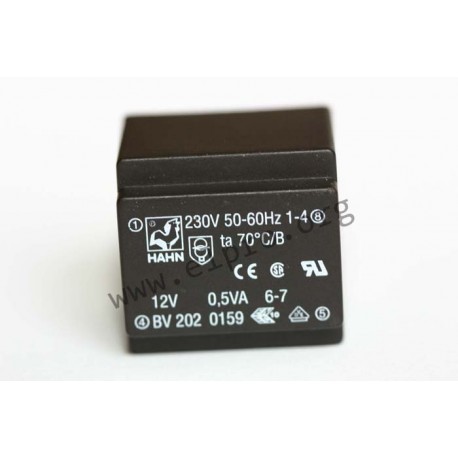

BV 202 0159

Hahn PCB transformers

Transformers with an EE20/10 core and 0,5VA. These devices are short circuit proof and suitable for PCB mounting. They have a vacuum casted two chamber winding and comply with temperature resistance class Ta 70/B. We offer the following types of this Hahn series: BV 202 0154, BV 202 0156, BV 202 0157, BV 202 0159, BV 202 0161, BV 202 0155, BV 202 0158 and BV 202 0160.

  • core: EE20/10
  • output: 0,5VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • maximal end temperature (short circuit): 175°C
  • maximal end temperature: 120°C
  • permissible overtemperature: 50K
BV 202 0159

BV 202 0159

29173 BV 202 0159 BV2020159 BV2020159 Hahn PCB transformers. Transformers with an EE20/10 core and 0,5VA. These devices are short circuit proof and suitable for PCB mounting. They have a vacuum casted two chamber winding and comply with temperature resistance class Ta 70/B. We offer the following types of this Hahn series: BV 202 0154, BV 202 0156, BV 202 0157, BV 202 0159, BV 202 0161, BV 202 0155, BV 202 0158 and BV 202 0160. core: EE20/10 output: 0,5VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B maximal end temperature (short circuit): 175°C maximal end temperature: 120°C permissible overtemperature: 50K

Specifications

manufacturer
Manufacturer's name BV2020159
Secondary voltage [V] 12
Secondary current [A] 0,042
Data Sheet

Unit price

2,09 €

Stock: 632
Further delivery:
CW 03/2025

Minimum order quantity 4 units or
multiples of 4.
