BV 202 0161

Hahn PCB transformers

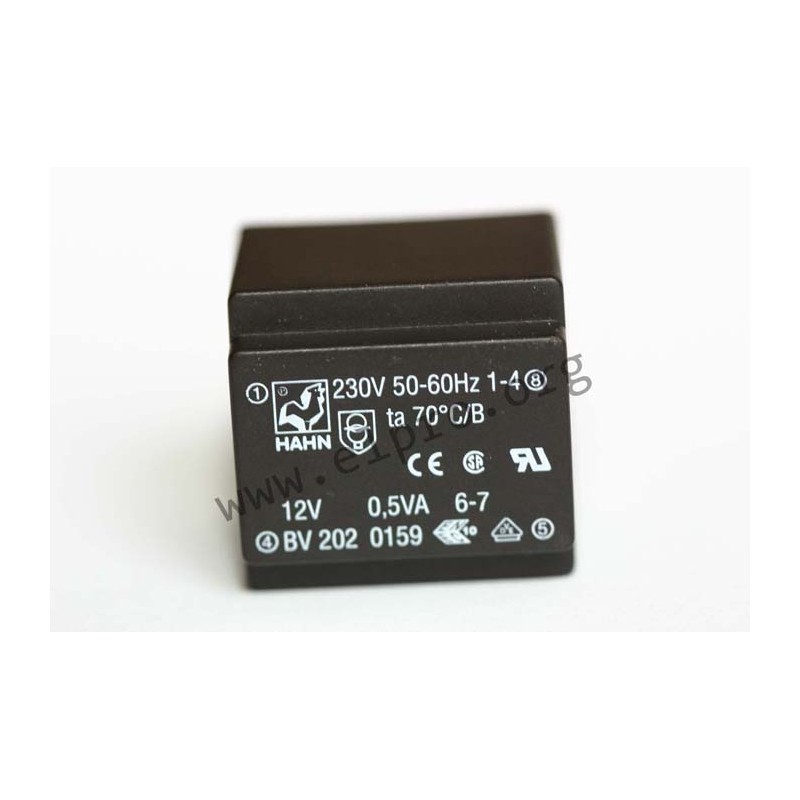

Transformers with an EE20/10 core and 0,5VA. These devices are short circuit proof and suitable for PCB mounting. They have a vacuum casted two chamber winding and comply with temperature resistance class Ta 70/B. We offer the following types of this Hahn series: BV 202 0154, BV 202 0156, BV 202 0157, BV 202 0159, BV 202 0161, BV 202 0155, BV 202 0158 and BV 202 0160.

  • core: EE20/10
  • output: 0,5VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • maximal end temperature (short circuit): 175°C
  • maximal end temperature: 120°C
  • permissible overtemperature: 50K
BV 202

BV 202 0161

111638 BV 202 0161 BV2020161 BV2020161 Hahn PCB transformers. Transformers with an EE20/10 core and 0,5VA. These devices are short circuit proof and suitable for PCB mounting. They have a vacuum casted two chamber winding and comply with temperature resistance class Ta 70/B. We offer the following types of this Hahn series: BV 202 0154, BV 202 0156, BV 202 0157, BV 202 0159, BV 202 0161, BV 202 0155, BV 202 0158 and BV 202 0160. core: EE20/10 output: 0,5VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B maximal end temperature (short circuit): 175°C maximal end temperature: 120°C permissible overtemperature: 50K

Specifications

manufacturer
Manufacturer's name BV2020161
Secondary voltage [V] 15
Secondary current [A] 0,033
Data Sheet

Unit price

2,09 €

Stock: 630
Further delivery:
CW 03/2025

Minimum order quantity 1 to 2 units or multiples of 4 plus 0 to 2 .
