BV 201 0148

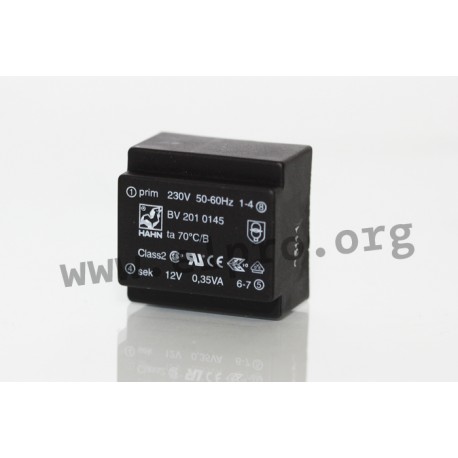

Hahn PCB transformers

Transformers in a vacuum casted housing with 0,35VA and two chamber winding. These devices have connections for PCB mounting as well as an EE20/6 core and comply with temperature class Ta 70/B. They are short circuit proof and suitable for an input voltage of 110 resp. 230V AC. We offer the following types of this Hahn series: BV 201 0111, BV 201 0128, BV 201 0136, BV 201 0145, BV 201 0135, BV 201 0147, BV 201 0146, BV 201 0148, BV 202 0168 and BV 202 0171.

  • core: EE20/6
  • output: 0,35VA
  • input voltage: 110 resp. 230V
  • temperature class: Ta 70/B
  • maximal end temperature in case of short circuit: 175°C
  • maximal end temperature: 120°C
  • permissible overtemperature: 50K
Hahn BV 20_ series

BV 201 0148

111636 BV 201 0148 BV 201 0148 Hahn PCB transformers. Transformers in a vacuum casted housing with 0,35VA and two chamber winding. These devices have connections for PCB mounting as well as an EE20/6 core and comply with temperature class Ta 70/B. They are short circuit proof and suitable for an input voltage of 110 resp. 230V AC. We offer the following types of this Hahn series: BV 201 0111, BV 201 0128, BV 201 0136, BV 201 0145, BV 201 0135, BV 201 0147, BV 201 0146, BV 201 0148, BV 202 0168 and BV 202 0171. core: EE20/6 output: 0,35VA input voltage: 110 resp. 230V temperature class: Ta 70/B maximal end temperature in case of short circuit: 175°C maximal end temperature: 120°C permissible overtemperature: 50K

Specifications

manufacturer
Manufacturer's name BV 201 0148
Secondary voltage [V] 2x15
Secondary current [A] 0,012
Data Sheet

Unit price

2,69 €

Stock: 200
Further delivery:
CW 03/2025

Minimum order quantity 4 units or
multiples of 4.
