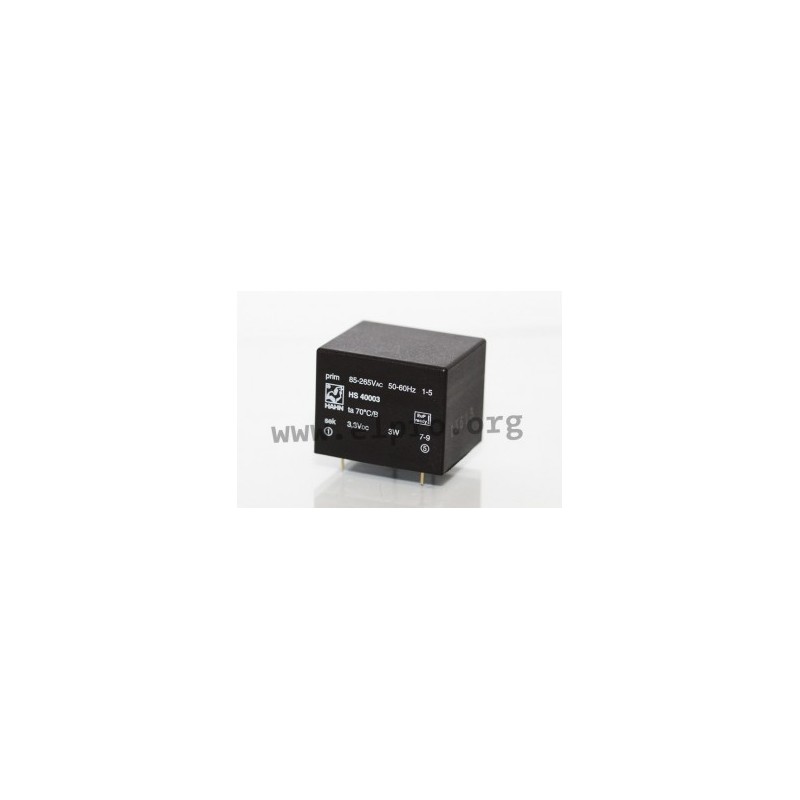

HS 40005

Hahn AC/DC converter series HS4000

AC/DC converter modules in an enclosed housing with 3W, a low no-load power and a universal input. These devices are suitable for PCB mounting and are protected against overload (auto recovery) as well as short circuit. We offer the following types of this Hahn series: HS40003.3, HS40005, HS40009, HS40012, HS40015, HS40018 and HS40024.

  • single output
  • output: 3W
  • input voltage: 85 to 265V AC
  • maximal input inrush current: 3mA
  • leakage current: <100µA
  • no-load power: <150mW
  • overload protection: >105%
  • input side: internal fuse
  • output side: thermal cut-off at 140°C
  • withstand voltage I/P-O/P: 4000V AC
  • insulation class: B
  • operating temperature: -20 to +70°C

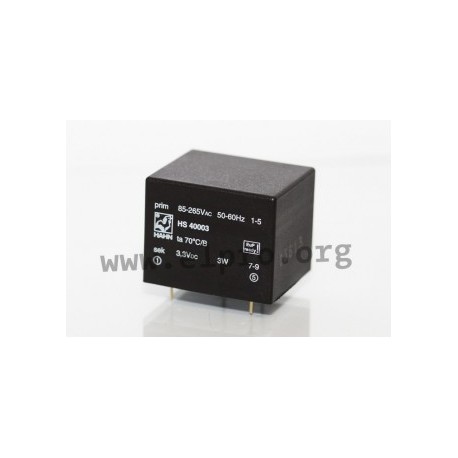

HS40005, Hahn AC/DC converters, 3W, PCB, HS4000 series

HS 40005

41573 HS 40005 HS40005 HS40005 Hahn AC/DC converter series HS4000. AC/DC converter modules in an enclosed housing with 3W, a low no-load power and a universal input. These devices are suitable for PCB mounting and are protected against overload (auto recovery) as well as short circuit. We offer the following types of this Hahn series: HS40003.3, HS40005, HS40009, HS40012, HS40015, HS40018 and HS40024. single output output: 3W input voltage: 85 to 265V AC maximal input inrush current: 3mA leakage current: &lt;100µA no-load power: &lt;150mW overload protection: &gt;105% input side: internal fuse output side: thermal cut-off at 140°C withstand voltage I/P-O/P: 4000V AC insulation class: B operating temperature: -20 to +70°C

Specifications

manufacturer
Manufacturer's name HS40005
Output voltage [V] 5
Phase 2 phase
Output current range [mA] 600
Efficiency [%] >70
Output voltage tolerance: [%] ±1
Output power [W] 3
Data Sheet

Unit price

7,69 €

Stock: 9
Further delivery:
CW 03/2025
