V 50101

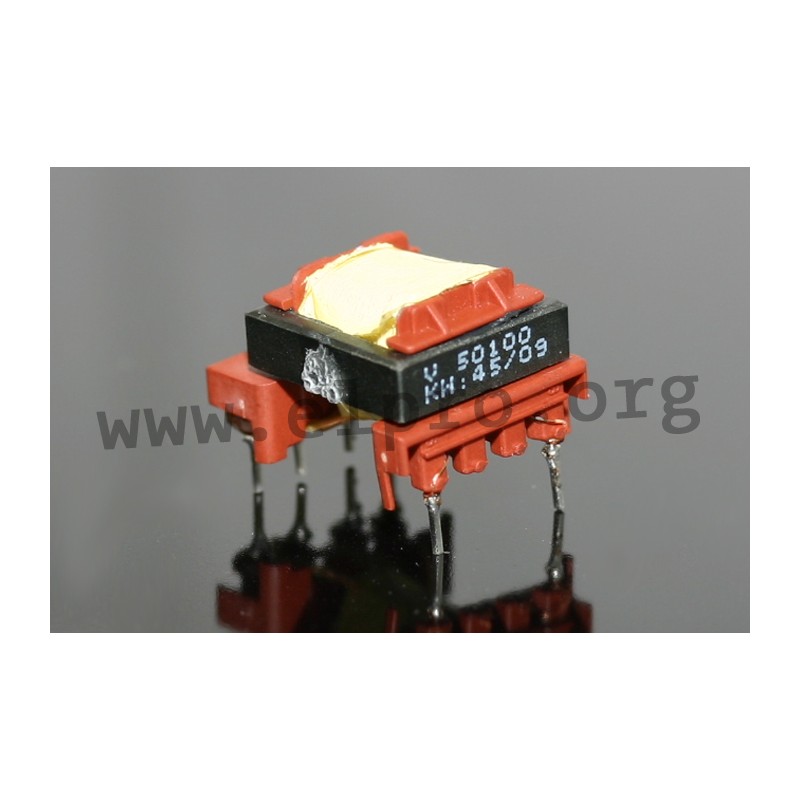

flyback converters

• the converter uses the principle of energy storage to transfer voltage from the input to the output in power transformer technology for this TinySwitch® series
• construction according to EN 61 558, EN 60 950


• creeping distance min. 8 mm
• UL listed materials
• insulation material class E
• two outputs for connection in parallel or in series

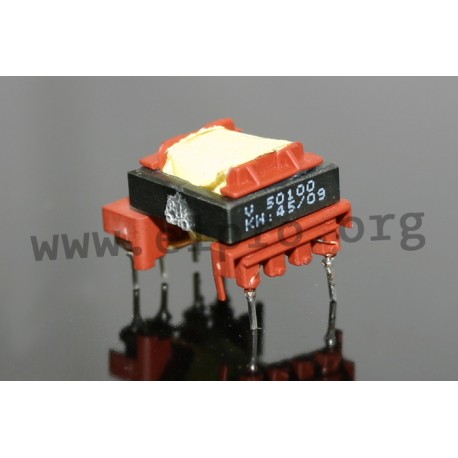

Series V 501_

V 50101

35387 V 50101 V50101 V50101 flyback converters. • the converter uses the principle of energy storage to transfer voltage from the input to the output in power transformer technology for this TinySwitch® series• construction according to EN 61 558, EN 60 950 • creeping distance min. 8 mm• UL listed materials• insulation material class E• two outputs for connection in parallel or in series

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name V50101
Primary voltage [V] 85...265
Power [VA] 5
Secondary voltage [V] 2x9
Secondary current [A] 2x0,280

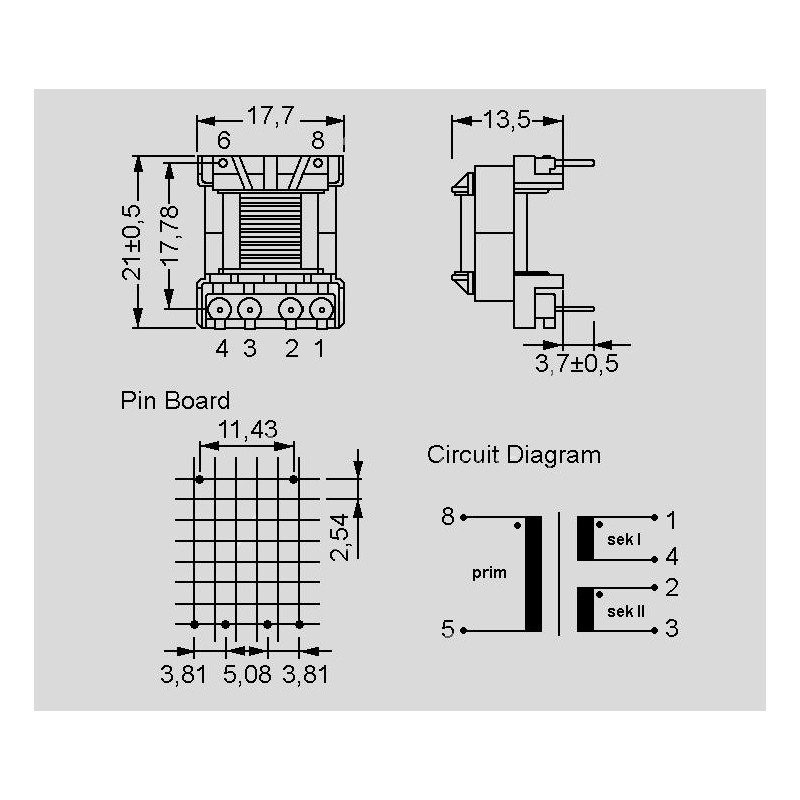

Data Sheet

Unit price

6,89 €

Stock: 4
