BV UI 304 0159

Hahn flat transformers

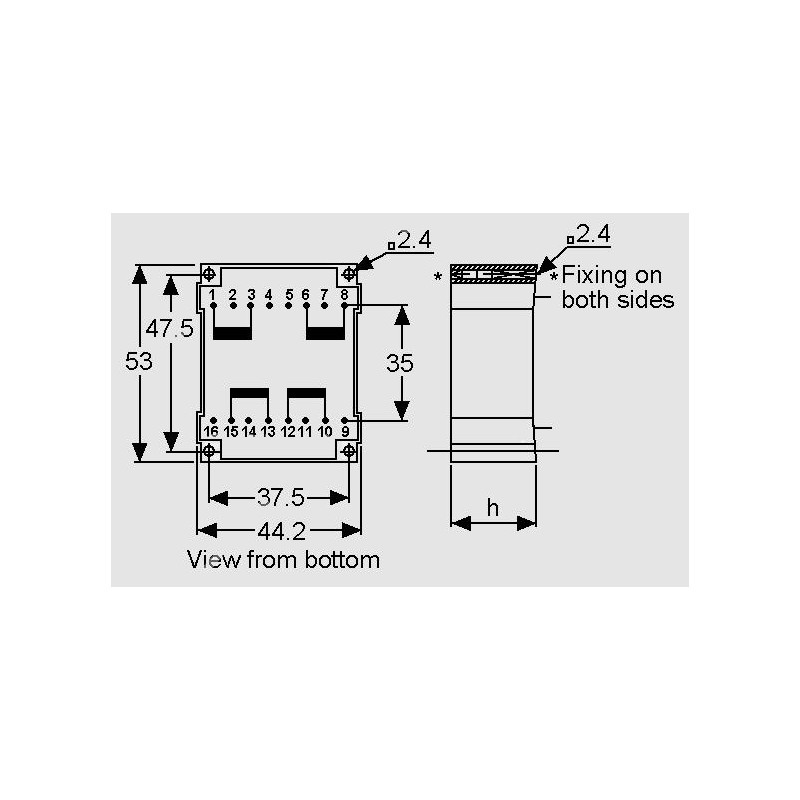

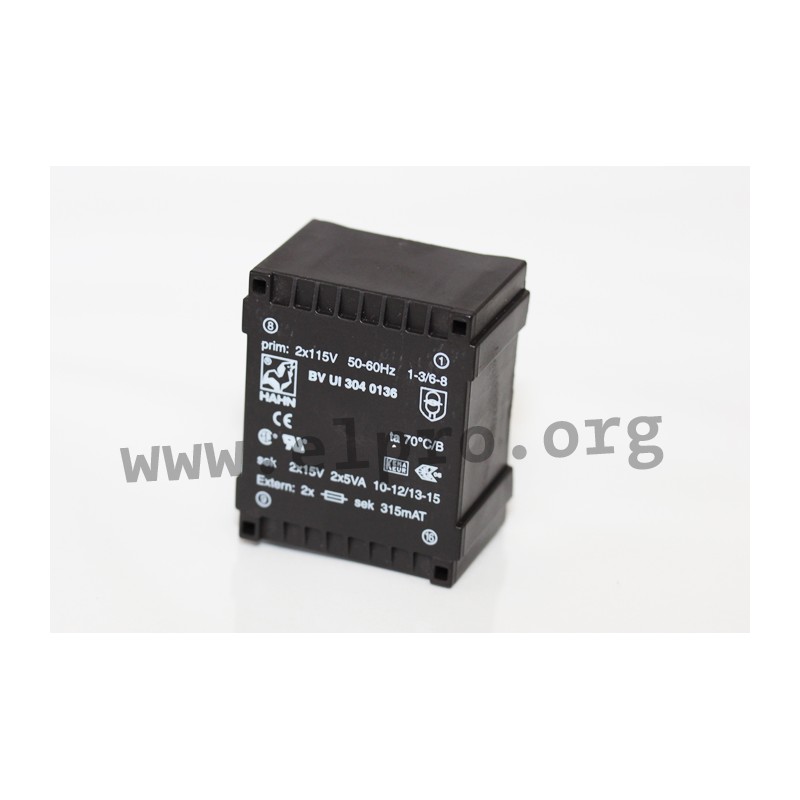

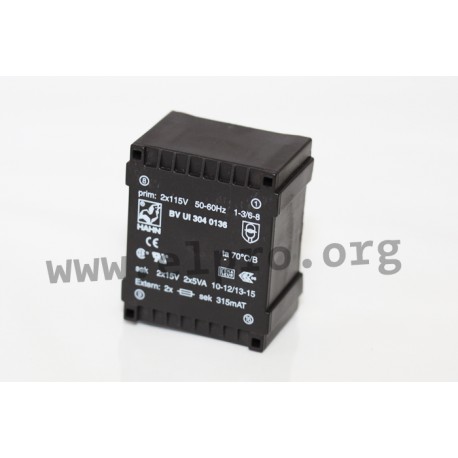

Vacuum encapsulated flat transformers with 10VA, a UI30 core and a two chamber winding. These devices are suitable for 115/230V power supplies as well as for PCB mounting and comply with EN61558 as well as VDE 0570. They are fully tested between primary/secondary winding (6000V) and have a sparking/leaking distance of at least 10mm. We offer the following types of this Hahn series: BV UI 304 0155, BV UI 304 0153, BV UI 304 0154, BV UI 304 0136, BV UI 304 0159 and BV UI 304 0173.

  • output: 10VA
  • core: UI 30
  • input voltage: 2x115V
  • not short circuit proof

BV UI 304 0159

38709 BV UI 304 0159 BVUI3040159 BVUI3040159 Hahn flat transformers . Vacuum encapsulated flat transformers with 10VA, a UI30 core and a two chamber winding. These devices are suitable for 115/230V power supplies as well as for PCB mounting and comply with EN61558 as well as VDE 0570. They are fully tested between primary/secondary winding (6000V) and have a sparking/leaking distance of at least 10mm. We offer the following types of this Hahn series: BV UI 304 0155, BV UI 304 0153, BV UI 304 0154, BV UI 304 0136, BV UI 304 0159 and BV UI 304 0173. output: 10VA core: UI 30 input voltage: 2x115V not short circuit proof

Specifications

manufacturer
Manufacturer's name BVUI3040159
Case UI30
Secondary voltage [V] 2x18
Secondary current [A] 2x0,277
Data Sheet

Unit price

8,19 €

Stock: 363
Further delivery:
CW 49/2024
