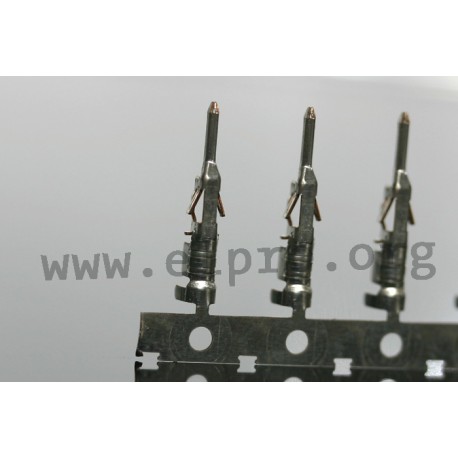

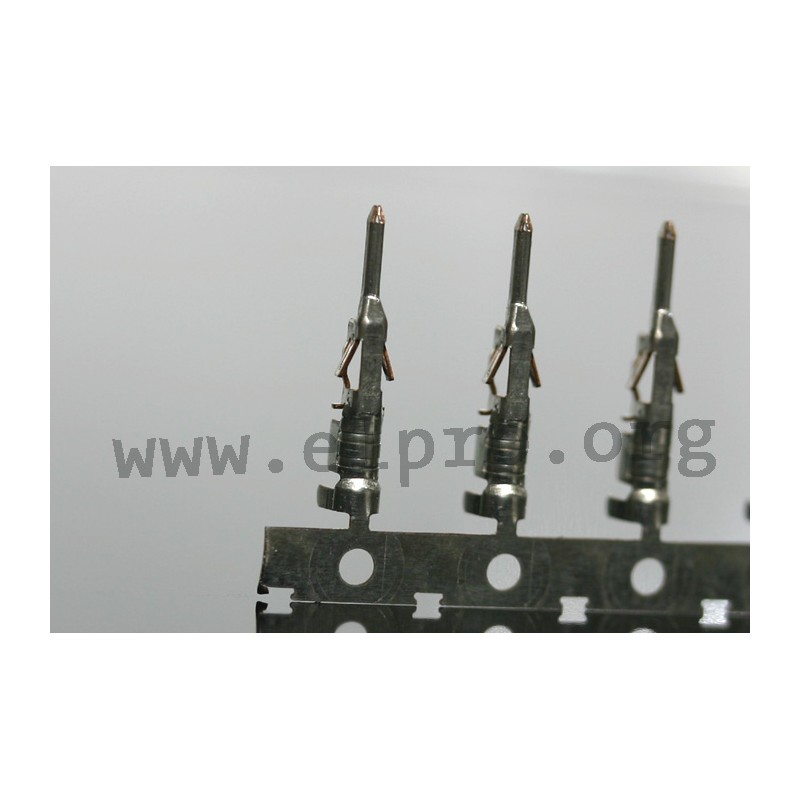

87C30 MC

crimp contacts

• for use in plug housings and cap housings
• for crimping
• current load, max.: 9A
• rated voltage: 600V
• contact material: Phosphor Bronze
• contact surface: tinned
• wire cross-section: 0.2...0.52mm² (AWG24...20)
• temperature range: -25...+105°C

87C30 MC

87C30 MC

33960 87C30 MC 87C30MC-R50 87C30MC-R50 crimp contacts. • for use in plug housings and cap housings• for crimping• current load, max.: 9A• rated voltage: 600V• contact material: Phosphor Bronze• contact surface: tinned• wire cross-section: 0.2...0.52mm² (AWG24...20)• temperature range: -25...+105°C

Discontinued items. Only remainder of stock available.

Specifications

Manufacturer's name 87C30MC-R50

Unit price

0,0038 €

Stock: 3

Minimum order quantity 1 to 3 units or multiples of 10 plus 0 to 3 .
