ST-SH-124T

rated current: 2A

* wash tight construction
* very small size with light weight

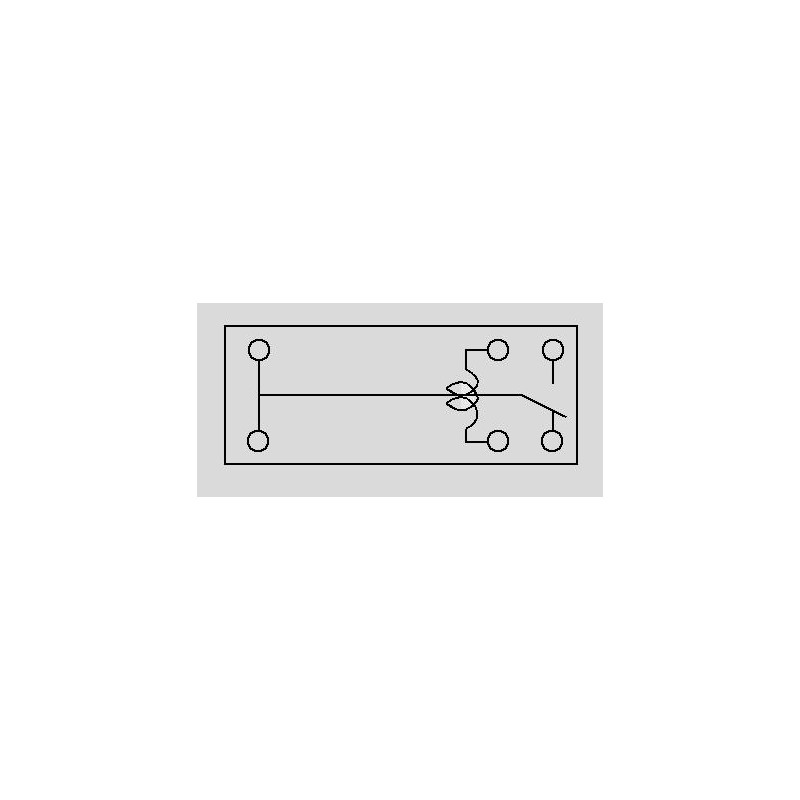

* contact: SPDT
* contact material: silver, gold-plated
* rated current: 2A
* min. switching current: 10mA, 5V DC
* max. switching voltage: 125V AC / 60V DC
* operate/release time: 5/5ms
* testing voltage (50/60Hz, 1Min.)
coil/contact: 1000V AC
contact/contact: 400V AC
* lifetime
mechanical: 1x107 operations
electrical: 1x105 operations
* operating temperature: -30...+70°C
* weight approx.: 2g

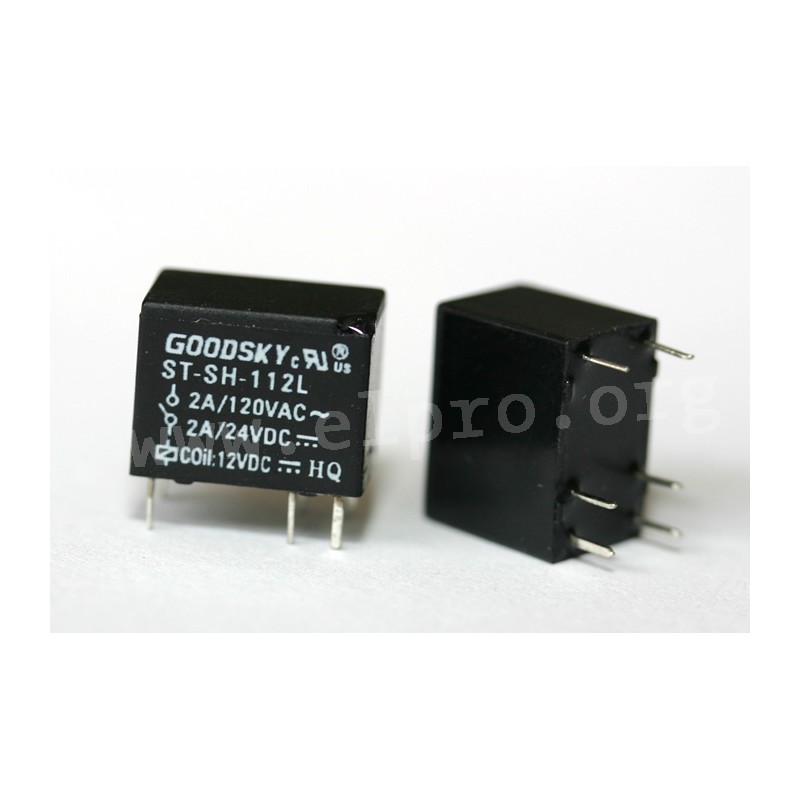

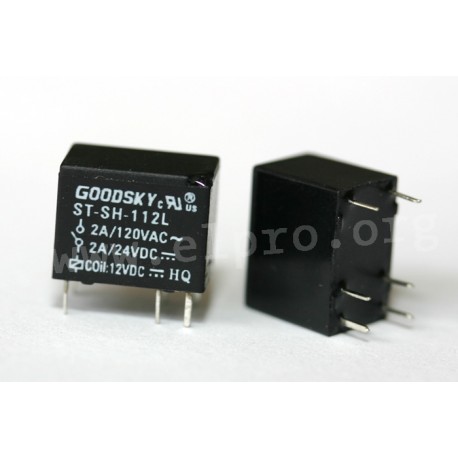

ST-SH-112L

ST-SH-124T

30178 ST-SH-124T ST-SH-124T1 ST-SH-124T1 rated current: 2A. * wash tight construction* very small size with light weight* contact: SPDT* contact material: silver, gold-plated* rated current: 2A* min. switching current: 10mA, 5V DC* max. switching voltage: 125V AC / 60V DC* operate/release time: 5/5ms* testing voltage (50/60Hz, 1Min.)coil/contact: 1000V ACcontact/contact: 400V AC* lifetimemechanical: 1x107 operationselectrical: 1x105 operations* operating temperature: -30...+70°C* weight approx.: 2g

Specifications

manufacturer
Manufacturer's name ST-SH-124T1
Switching current [A] 2
Response voltage [V] 18...31,2
Max. switching voltage [V] 125
Max. switching power [VA] 240
Data Sheet

Unit price

0,689 €

Stock: 722
Further delivery:
CW 12/2025

Minimum order quantity 1 to 2 units or multiples of 10 plus 0 to 2 .
