ST-SH-105L
* very small size with light weight

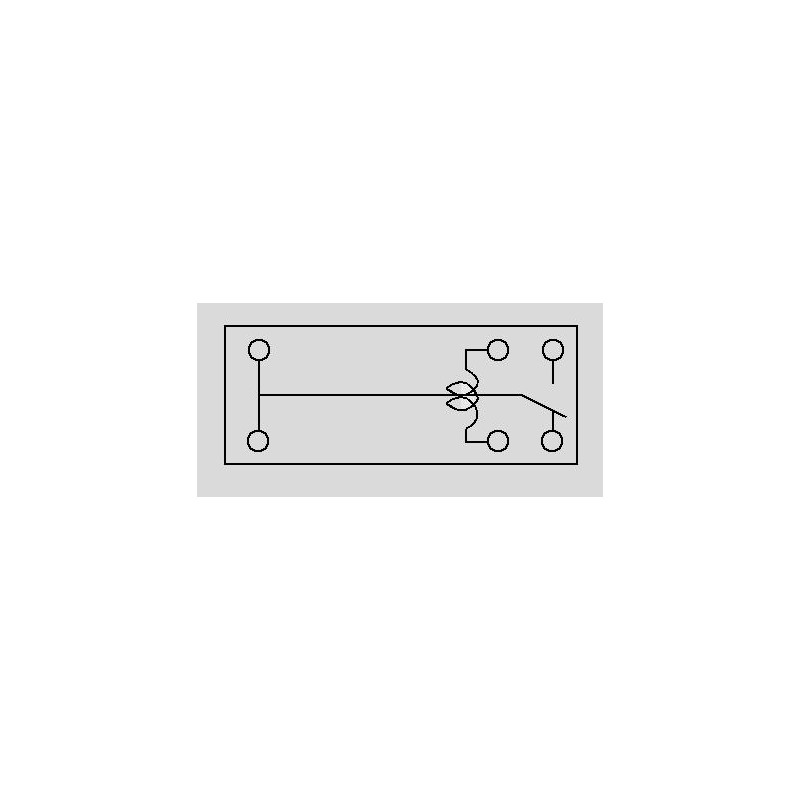

* contact: SPDT
* contact material: silver, gold-plated
* rated current: 2A
* min. switching current: 10mA, 5V DC
* max. switching voltage: 125V AC / 60V DC
* operate/release time: 5/5ms
* testing voltage (50/60Hz, 1Min.)
coil/contact: 1000V AC
contact/contact: 400V AC
* lifetime
mechanical: 1x107 operations
electrical: 1x105 operations
* operating temperature: -30...+70°C
* weight approx.: 2g
rated current: 2A
* wash tight construction* very small size with light weight
* contact: SPDT
* contact material: silver, gold-plated
* rated current: 2A
* min. switching current: 10mA, 5V DC
* max. switching voltage: 125V AC / 60V DC
* operate/release time: 5/5ms
* testing voltage (50/60Hz, 1Min.)
coil/contact: 1000V AC
contact/contact: 400V AC
* lifetime
mechanical: 1x107 operations
electrical: 1x105 operations
* operating temperature: -30...+70°C
* weight approx.: 2g
ST-SH-105L
Specifications
| manufacturer | GoodSky |
| Manufacturer's name | ST-SH-105L1 |
| Rated current [mA] | 29,9 |
| Switching current [A] | 2 |
| Nominal resistance [Ω] | 167 |
| Response voltage [V] | 4...6,5 |
| Max. switching voltage [V] | 125 |
| Max. switching power [VA] | 240 |
