JE-105DM

rated current: 5/8A

* sensitivity coil 200mW
* 4kV dielectric strength coil/contact

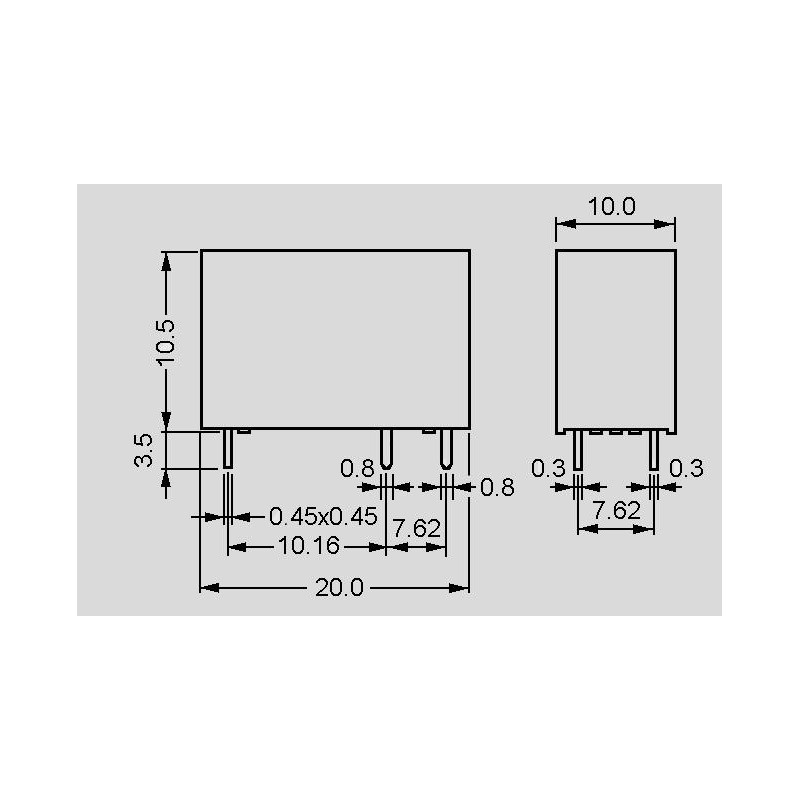

* optimized height of 10,5mm
* contact
JE_DM: SPST
JE_D: SPDT
* contact material: Ag alloy
* rated current
JE_DM: 8A
JE_D: 5A
* max. switching current
JE_DM: 8A
JE_D: 5A
* max. switching voltage: 250V AC / 30V DC
* max. switching power
JE_DM: 1500VA / 240W
JE_D: 1250VA / 150W
* operate/release time: 8/4ms
* testing voltage
coil/contact: 4000V AC
contact/contact: 1000V AC
* lifetime
mechanical: 1x107 operations
electrical: 1x105 operations
* operating temperature: -40...+85°C
* weight approx.: 6g

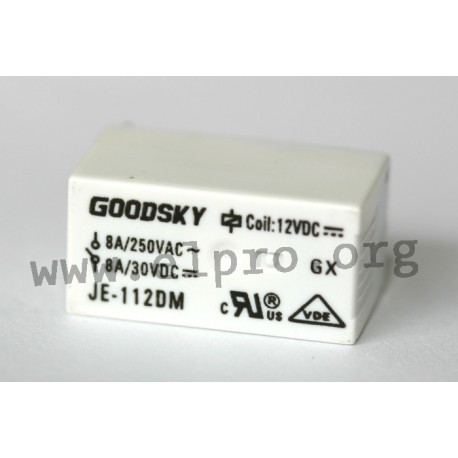

JE-_ DM

JE-105DM

30186 JE-105DM JE-105DM rated current: 5/8A. * sensitivity coil 200mW* 4kV dielectric strength coil/contact* optimized height of 10,5mm* contactJE_DM: SPSTJE_D: SPDT* contact material: Ag alloy* rated currentJE_DM: 8AJE_D: 5A* max. switching currentJE_DM: 8AJE_D: 5A* max. switching voltage: 250V AC / 30V DC* max. switching power JE_DM: 1500VA / 240WJE_D: 1250VA / 150W* operate/release time: 8/4ms* testing voltage coil/contact: 4000V ACcontact/contact: 1000V AC* lifetimemechanical: 1x107 operationselectrical: 1x105 operations* operating temperature: -40...+85°C* weight approx.: 6g

Specifications

manufacturer
Manufacturer's name JE-105DM
Response voltage [V] 3,75...7,5
Max. switching voltage [V] 250
Max. switching power [VA] 1500
Data Sheet

Unit price

1,01 €

Stock: 1005
Further delivery:
CW 16/2025

Minimum order quantity 10 units or
multiples of 10.
