GQ-SS-105LM1F 5V

PCB relays series GQ by Goodsky

The relays in miniature size with low power consumption for rated loading to 12A are characterized by a surge strength up to 10.000V. Their operating temperature is up to +105°C. The relays can be used for domestic appliances, office machines, audio equipment etc. We are offering the following types by Goodsky: GQ-SS-105LM1F 5V, GQ-SS-112LM1F 12V and GQ-SS-124LM1F 24V.

• contact: SPST-NO
• contact material: AgNi
• max. switching current: 12A
• max. switching voltage: 250V AC/30V DC
• max. switching power: 2.500VA, 300W
• operate/release time: 10/5ms
• testing voltage
coil/contact (1min.): 4.000V AC
open contacts (1min.): 1.000V AC
• min. lifetime
mechanical: 107 operations
electrical: 105 operations
• operating temperature: -40 to +85°C
• weight approx.: 9,0g

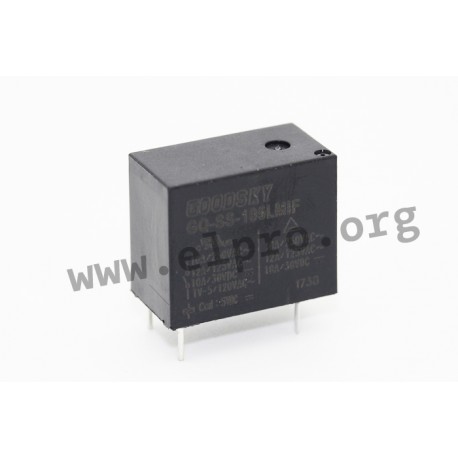

Goodsky GQ series

GQ-SS-105LM1F 5V

110055 GQ-SS-105LM1F 5V GQ-SS-105LM1F GQ-SS-105LM1F PCB relays series GQ by Goodsky. The relays in miniature size with low power consumption for rated loading to 12A are characterized by a surge strength up to 10.000V. Their operating temperature is up to +105°C. The relays can be used for domestic appliances, office machines, audio equipment etc. We are offering the following types by Goodsky: GQ-SS-105LM1F 5V, GQ-SS-112LM1F 12V and GQ-SS-124LM1F 24V. • contact: SPST-NO• contact material: AgNi• max. switching current: 12A• max. switching voltage: 250V AC/30V DC• max. switching power: 2.500VA, 300W• operate/release time: 10/5ms• testing voltagecoil/contact (1min.): 4.000V ACopen contacts (1min.): 1.000V AC• min. lifetimemechanical: 107 operationselectrical: 105 operations• operating temperature: -40 to +85°C• weight approx.: 9,0g

Specifications

manufacturer
Manufacturer's name GQ-SS-105LM1F
Nominal voltage [V DC] 5
Coil resistance [Ω] 125
Response voltage [V] 4
Release voltage [V] 0,25
Data Sheet

Unit price

0,644 €

Stock: 784
