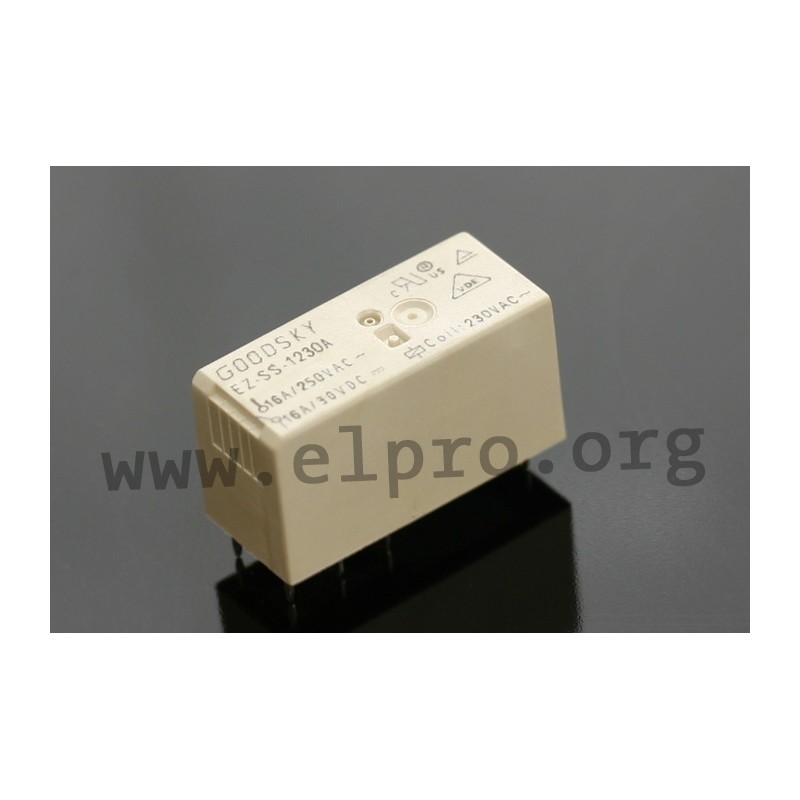

EZ-SS-124D 24V

rated current: 8-16A

These PCB relays conform to the protection class II and their insulation accords to IEC60664. We are offering the following types by Goodsky: EZ-SS-124D 24V, EMI-SS-212D 12V, EMI-SS-224D 24V, EMI-SS-205FI 5V, EMI-SS-212FI 12V, EMI-SS-205FMI 5V, EMI-SS-224FI 24V, EMI-SS-212FMI 12V and EMI-SS-224FMI 24V.

• contact: DPDT
• contact material: AgNi
• rated current: 16A
• max. switching voltage: 250V AC
• max. switching power: 4000VA
• creepage/clearance, min.: 10/10mm
• operate/release time: 12/8ms
• testing voltage
coil/contact, min.: 5000V AC
opening contact, min.: 1000V AC
• lifetime
mechanical: 10x107 operations
electrical: 1x105 operations
• operating temperature: -40 to +85°C
• weight approx.: 12.5g

Goodsky EZ ssries

EZ-SS-124D 24V

25923 EZ-SS-124D 24V EZ-SS-124D EZ-SS-124D rated current: 8-16A. These PCB relays conform to the protection class II and their insulation accords to IEC60664. We are offering the following types by Goodsky: EZ-SS-124D 24V, EMI-SS-212D 12V, EMI-SS-224D 24V, EMI-SS-205FI 5V, EMI-SS-212FI 12V, EMI-SS-205FMI 5V, EMI-SS-224FI 24V, EMI-SS-212FMI 12V and EMI-SS-224FMI 24V. • contact: DPDT• contact material: AgNi• rated current: 16A• max. switching voltage: 250V AC• max. switching power: 4000VA• creepage/clearance, min.: 10/10mm• operate/release time: 12/8ms• testing voltagecoil/contact, min.: 5000V ACopening contact, min.: 1000V AC• lifetimemechanical: 10x107 operationselectrical: 1x105 operations• operating temperature: -40 to +85°C• weight approx.: 12.5g

Specifications

manufacturer
Manufacturer's name EZ-SS-124D
Response voltage [V] 19,2
Max. switching voltage [V] 250
Max. switching power [VA] 4000
Data Sheet

Unit price

1,93 €

Stock: 970
Further delivery:
CW 18/2025

Minimum order quantity 10 units or
multiples of 10.
