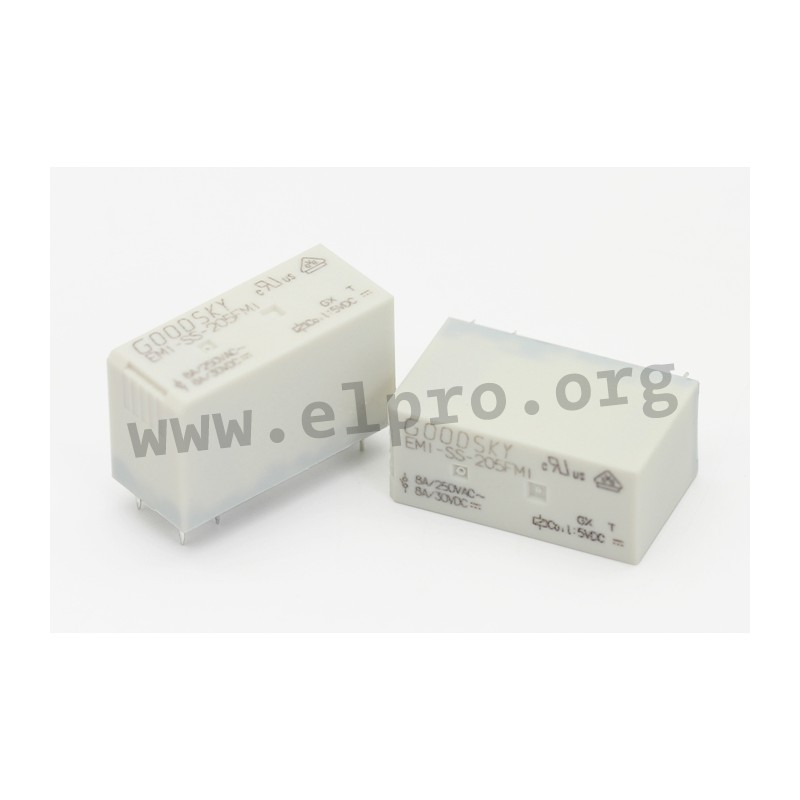

EMI-SS-205FMI 5V

rated current: 8-16A

These PCB relays conform to the protection class II and their insulation accords to IEC60664. We are offering the following types by Goodsky: EZ-SS-124D 24V, EMI-SS-212D 12V, EMI-SS-224D 24V, EMI-SS-205FI 5V, EMI-SS-212FI 12V, EMI-SS-205FMI 5V, EMI-SS-224FI 24V, EMI-SS-212FMI 12V and EMI-SS-224FMI 24V.

• contact: DPST
• contact material: AgSnO2+In
• rated current: 8A
• max. switching voltage: 250V AC
• max. switching power: 2000VA
• creepage/clearance, min.: 10/10mm
• operate/release time: 12/8ms
• testing voltage
coil/contact, min.: 5000V AC
opening contact, min.: 1000V AC
• lifetime
mechanical: 10x107 operations
electrical: 1x105 operations
• operating temperature: -40 to +85°C
• weight approx.: 12.5g

EMI-SS-205FMI, Goodsky PCB relays, 8 to 16A, 1 or 2 changeover contacts, EZ and EMI-2P series

EMI-SS-205FMI 5V

110059 EMI-SS-205FMI 5V EMI-SS-205FMI EMI-SS-205FMI rated current: 8-16A. These PCB relays conform to the protection class II and their insulation accords to IEC60664. We are offering the following types by Goodsky: EZ-SS-124D 24V, EMI-SS-212D 12V, EMI-SS-224D 24V, EMI-SS-205FI 5V, EMI-SS-212FI 12V, EMI-SS-205FMI 5V, EMI-SS-224FI 24V, EMI-SS-212FMI 12V and EMI-SS-224FMI 24V. • contact: DPST• contact material: AgSnO2+In• rated current: 8A• max. switching voltage: 250V AC• max. switching power: 2000VA• creepage/clearance, min.: 10/10mm• operate/release time: 12/8ms• testing voltagecoil/contact, min.: 5000V ACopening contact, min.: 1000V AC• lifetimemechanical: 10x107 operationselectrical: 1x105 operations• operating temperature: -40 to +85°C• weight approx.: 12.5g

Specifications

manufacturer
Manufacturer's name EMI-SS-205FMI
Nominal voltage [V DC] 5
Rated current [mA] 80
Coil resistance [Ω] 62,5
Response voltage [V] 4
Release voltage [V] 0,25
Data Sheet

Unit price

1,12 €

Stock: 1000
Further delivery:
CW 12/2025

Minimum order quantity 10 units or
multiples of 10.
